Techni Mobili RTA-8211 Assembly Instructions Manual

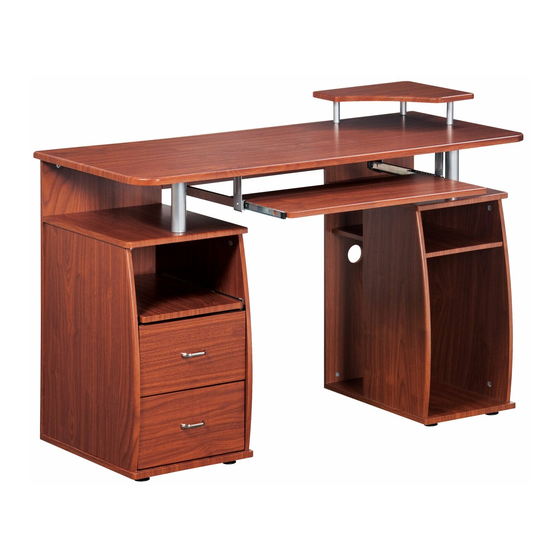

Complete computer workstation desk with storage
Hide thumbs Also See for RTA-8211:

Advertisement

Table of Contents

COMPLETE COMPUTER WORKSTATION
DESK WITH STORAGE
MODEL RTA-8211

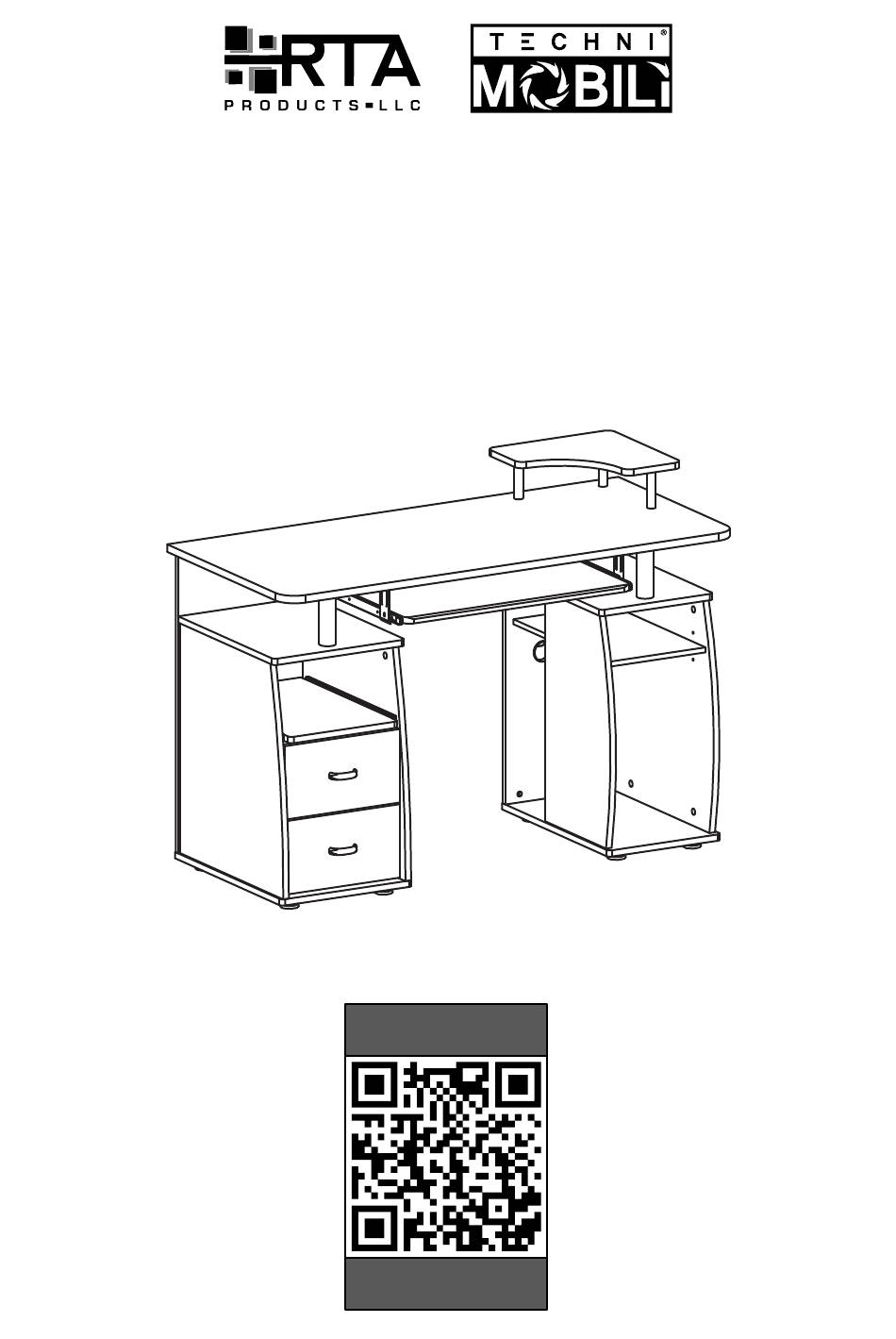

ASSEMBLY INSTRUCTIONS
REV-10-OL-7761-1223
Thank you for purchasing our product
VIDEO
Scan QR to view full
assembly video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTA-8211 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-8211

Summary of Contents for Techni Mobili RTA-8211

  • Page 1 COMPLETE COMPUTER WORKSTATION DESK WITH STORAGE MODEL RTA-8211 ASSEMBLY INSTRUCTIONS REV-10-OL-7761-1223 Thank you for purchasing our product VIDEO Scan QR to view full assembly video...

  • Page 2: Main Parts List

    RTA-8211 Replacement Parts for International Do a quick inventory For Support, assembly questions Customers & AK-HI-PR orders: of all the parts and & Replacement Parts within the hardware listed below. 48 Contiguous United States: RTA Products will replace the part free of...

  • Page 3: Hardware List

    RTA-8211 MAIN PARTS LIST (Cont.) Bottom panel for Sliders for Tabletop Top panel for Keyboard panel keyboard CPU's cabinet CPU's cabinet Silver, 2 or 3 holes, threaded Thick support Base bracket Central back Top corner shelf Thin support tube tube for tabletop...
  • Page 4 RTA-8211 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • The product assembles ONLY as shown in the front page, with the drawers on the LEFT side. The drawers cannot install on the RIGHT side. • Do not discard this manual or any of the packaging material until the unit is completely assembled.
  • Page 5 RTA-8211 THE ASSEMBLY STEPS START ON NEXT PAGE CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.

  • Page 6: Assembly Steps

    RTA-8211 ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 • Grab all the 3 sets of sliders 8 (total 8 pieces) and separate them into 2 groups Hardware according to their shape: M3x15 - The "flat"...
  • Page 7 RTA-8211 STEP 2 VERY IMPORTANT: Make sure you use in this step the correct sliders Hardware 4 which are black, longer, and have more holes than sliders 22. M3x15 Tools (included) Attach the sliders 4 to the top sets of holes on panels 9 and 10 with screws B, starting with the front holes first by opening the sliders slowly until you see the first hole through the big opening;...
  • Page 8 RTA-8211 STEP 3 • Attach the glide studs 15 to the underside face of the bottom panels 13 & 20. Hardware The surface of the panels will have only 4 visible holes. (x8) M6x40 Tools (included) Left side: The cabinet with drawers Right side: The cabinet for CPU •...
  • Page 9 RTA-8211 STEP 4 • Attach the SHORT bolts L into the back holes of the bottom panels 13 and 20. Hardware M5x40 M6x25 USE THE SHORT BOLTS! Tools (included) ( F r o (x4) n t ) ( B a...
  • Page 10 RTA-8211 STEP 5 • Attach the LONG bolts A into the indicated holes on the cabinets' top panels Hardware 14 and 21. • Assemble the cabinets' top panels 14 and 21 to their respective side panels M6x40 9-10 and 16-18 as explained in page 4.
  • Page 11 RTA-8211 P.10 P.10 STEP 7 • With the help of another person, place the tabletop 24 upside-down. This step • Attach the bolts L to the 4 back holes. requires of • Attach the support tubes 26 to the front with screws E.
  • Page 12 RTA-8211 P.11 P.11 STEP 8 • Place the rubber washers I over the front holes of the panels 14 and 21 of This step each cabinet respectively. requires of 2 persons (x2) Hardware M6x35 Tools (included) • With the help of another person, carefully place the tabletop 24 over the cabinets making sure the bolts on the back enter into the holes of the back panels 12 and 19, and the front tubes 26 align with the holes and washers on the cabinets.
  • Page 13 RTA-8211 P.12 P.12 STEP 9 • Install the SHORT END of the screws J into panel 29. Hardware M6x35 THE SHORT END! 19 mm (Approx 0.75") M6x30 Double ended 19 mm (Into tube) Tools (included) (x3) (Approx 0.75") 10 mm...
  • Page 14 RTA-8211 P.13 P.13 STEP 10 • For each of the drawers, attach the bolts L into the indicated holes on panel 3. Hardware • For each of the drawers, attach the side panels 1 and 2 to the front panel 3 as explained in page 4.
  • Page 15 RTA-8211 P.14 P.14 Instructions. STEP 12 • Insert the drawers into the left cabinet starting with the bottom one. This step IMPORTANT: If the drawers don't close completely, either the sliders inside the requires of 2 persons cabinet were installed incorrectly, or the screw heads were not tightened Hardware flushed.

  • Page 16: Weight Limits

    RTA-8211 P.15 P.15 WEIGHT LIMITS 22 Lbs 33 Lbs 110 Lbs (10 Kg) (15 Kg) (50 Kg) 44 Lbs (20 Kg) 22 Lbs 44 Lbs (10 Kg) (20 Kg) 22 Lbs 44 Lbs (10 Kg) (20 Kg) WARNINGS • Do not exceed the indicated weight limits.
  • Page 17 RTA-8211 P.16 P.16 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
