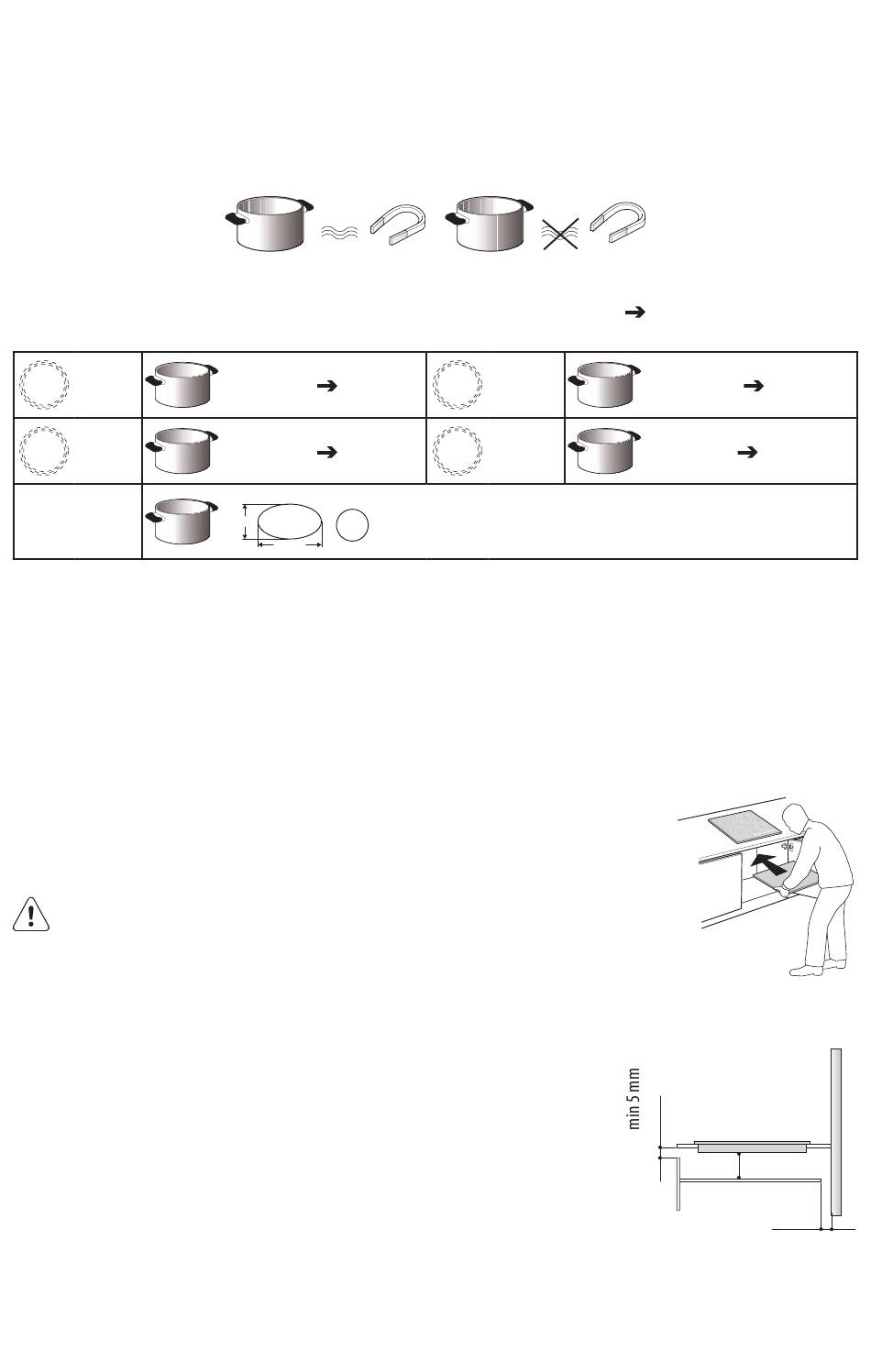

Using existing pots and pans

Use a magnet to check whether pots or pans are suitable for use on the induction hob: pots are unsuitable
if they cannot be magnetically detected.
-
Ensure pots have a smooth bottom, otherwise they may scratch the hob's glass ceramic surface. Check
dishes.
-
Never place hot pots or pans on the hob's control panel. This could result in damage.

Recommended pan base diameters

Ø 28 cm
XL
L
Ø 21 cm
Flexible zone
IMPORTANT: Refer to the "SENSOR" section for correct pan base diameters for cooking zones with SENSOR
function.
When adapter plates (not provided) are being used or if a pan is empty, the internal temperature of the
system exceeds the established limit, resulting in a shutdown of the power output.
This happens on purpose to protect the internal components from overflow.
It is advisable to switch the hob off and allow for the cooking zone to automatically cool down to the point
at which the indicators on the control panel switch off.

Installation

After unpacking the hob, check that there has been no damage during transport.
If in doubt, contact the dealer or After-Sales Service.
PREPARING THE HOUSING UNIT
WARNING
Install a separator panel under the hob.
-
The lower part of the product must not be accessible after installation.
-
If there is an oven beneath the hob, do not install the separator panel.
-
For the distance between the underside of the appliance and the
separator panel below, observe the dimensions given in the figure.
Do not obstruct the minimum required clearance between the hob
and the top of the unit to ensure the correct operation of the product.
Cut the worktop to fit before installing the hob and carefully remove
any shavings or sawdust.
In case of installation of an oven under the hob, make sure the oven has
a cooling system.
Do not install the hob over a dishwasher or washing machine, as the electronic circuits could become
damaged by steam and humidity.
OK
Ø 17 cm min.
28 cm max.
Ø 15 cm min.
21 cm max.
Max
Min
Ø
23 cm
12 cm
39 cm
NO
M
Ø 18 cm
S
Ø 14.5 cm
10
Ø 12 cm min.
18 cm max.
Ø 10 cm min.
14.5 cm max.
min 20 mm
min 5 mm
