Electrical connection

WARNING
Disconnect the appliance from the mains power supply.
-
- Installation must be carried out by a qualified electrician who is fully aware of current safety and
installation regulations.
The manufacturer declines all liability for injury to persons or animals and for damage to
-
property resulting from failure to observe the regulations provided in this chapter.
The power supply cable must be long enough to allow the hob to be removed from the worktop.
-
Make sure the voltage specified on the appliance rating plate is the same as that of the house
-
electrical system.
- Do not use extension leads.

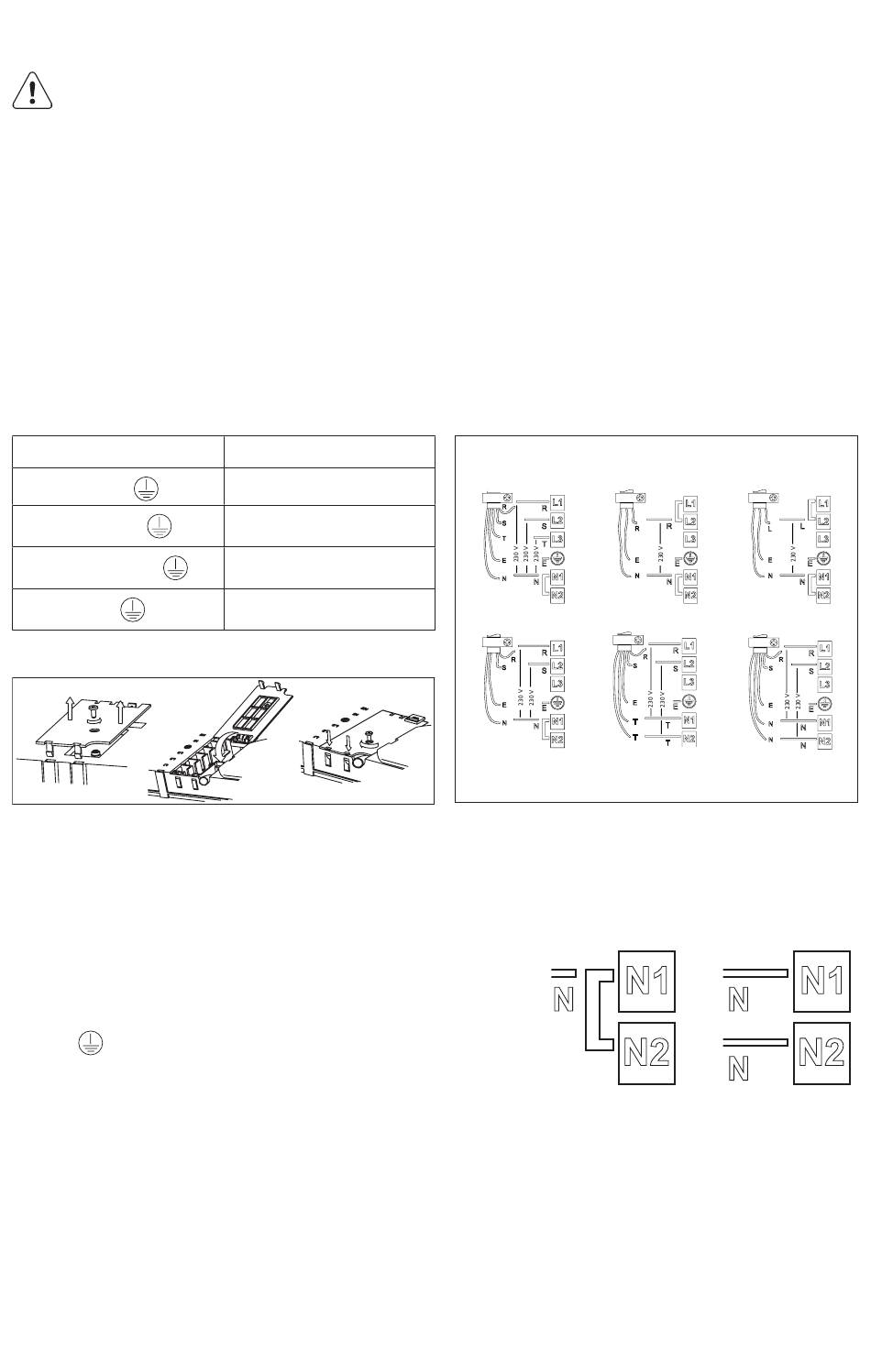

Connecting to the terminal board
For the electrical connection, use an H05RR-F or H05V2V2-F cable as specified in the table below.
Conductors
220-240 V ~ +
220-240 V 3 ~ +
380-415 V 3 N ~ +
380-415 ~ +
A B
Important:
- Based on the wiring diagram (see figure) either keep or remove the metal jumpers between the screws
on the terminal block L1-L2 and N1-N2.
- If the cable is provided, see the connection instructions attached to the cable.
- Make sure all six screws on the terminal block are tightened after connecting the cables.
Example of jumper present (left) or removed (right). See the
wiring diagram for details (the jumpers can be between L1-L2
and between N1-N2).
Connect the yellow/green earth wire to the terminal with the
symbol .
This wire must be longer than the other wires.
1. Remove the terminal block cover (A), undoing the screw and
inserting the cover in the terminal block hinge (B).
2. Insert the power cable in the cable clamp and connect the wires to the terminal block as indicated in
the connection diagram located near it.
3. Secure the power cable with the cable clamp.
4. Close the cover (C) and screw it on the terminal block with the previously removed screw.
Each time the power is connected, the hob performs an automatic check for a few seconds.
If the hob already has a power cable, follow the instructions attached to the cable. Connect the appliance
to the power supply by means of a multipole switch with minimum contact gap of 3 mm.
Amount x size
3 x 4 mm²
5 x 1.5 mm²
5 x 1.5 mm²
4 x 1.5 mm²
C
380-415 V 3 N ~
380-415 V 2N ~
11
220-240 V ~ 220-240 V ~
(AU and UK)
220-240 V 3 ~ 380-415 V 2N ~
(Belgium only) (NL only)
