4.1. Orientation
iBoot Plugs directly into a NEMA 5-15 outlet. It provides a
switched NEMA 5-15 receptacle. Up to 12 Amps can be
switched through the iBoot-WiFi.
complete details.
4.2. LEDs
Outlet LED
On
Red
On with momentary Off (1.2 /.1)
Slow Flash (.5s)
Off with Momentary On (1.2 /.1)
Off
Network LED
On
Blue
On with momentary Off (1.2 /.1)
Slow Flash (.5s)
Fast Flash (.1s)
Off
4.3. Switches
WPS Pushbutton
Reset Pushbutton
4.4. Power
Connect the iBoot-WiFi to a grounded three prong outlet.
Amps.
Pre-Compliance v180808n
4. Hardware Installation
See Specification for
Outlet Power On.
Power On – Cycle in Progress
Reset to Factory Defaults in Progress
Power Off – Reboot in Progress
Outlet Power Off
Network Connected
Micro Access Point Only Mode
Network Connection in Progress
Network Connection Attempt Failed
Unit not receiving power
Push and Hold 7 sec.
Momentary Press
Press and Hold 10 Seconds
iBoot-WiFi
Network LED
WPS
Pushbutton
Power Outlet
12 Amps Max

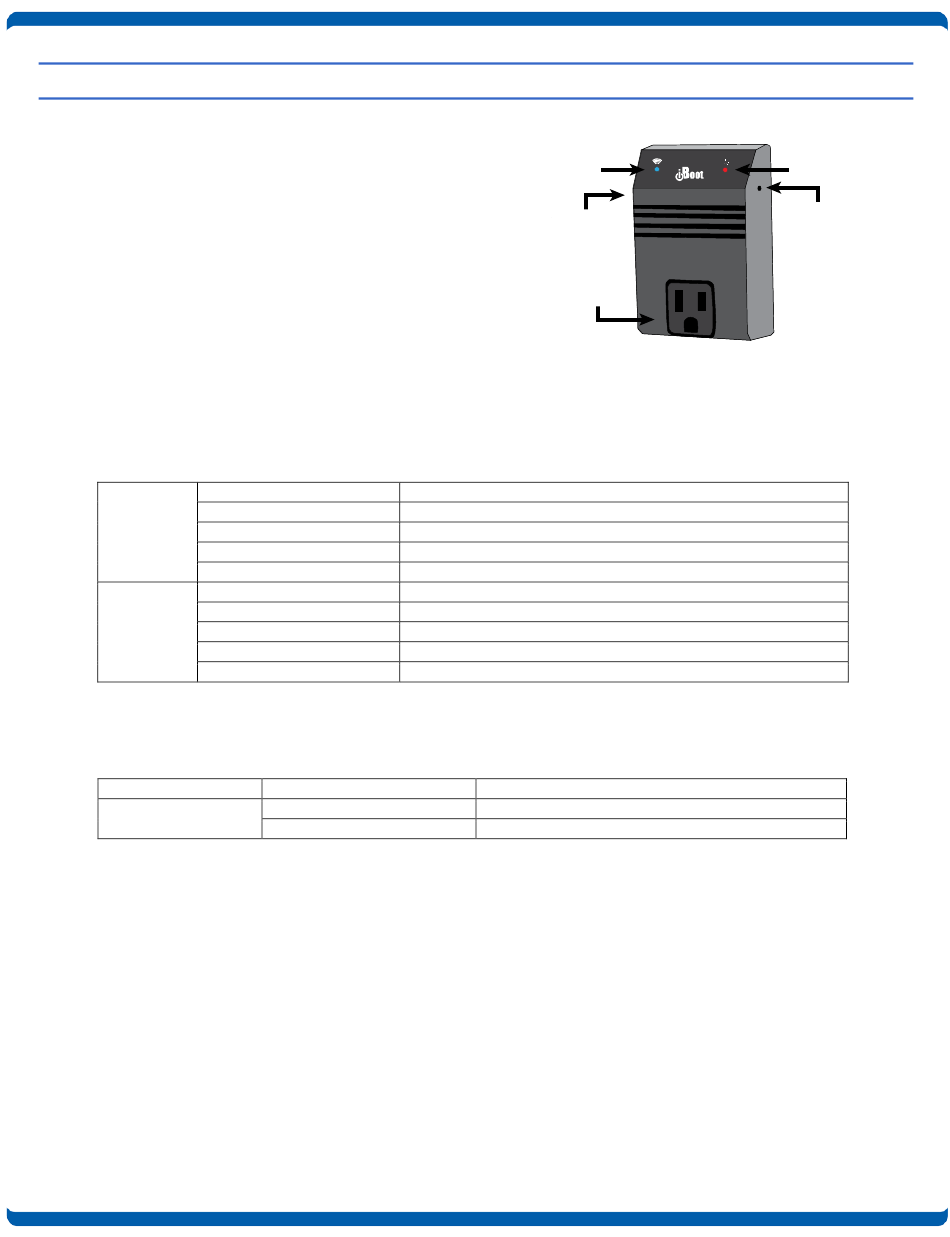

Figure 2 iBoot-WiFi Major Features
Initiate WiFi Protected Setup (WPS)
Restart iBoot-WiFi (no effect on outlet)
Reset Factory Default
The maximum switching capacity of the iBoot-WiFi is 12
Outlet LED
Reset
Pushbutton
