Overview

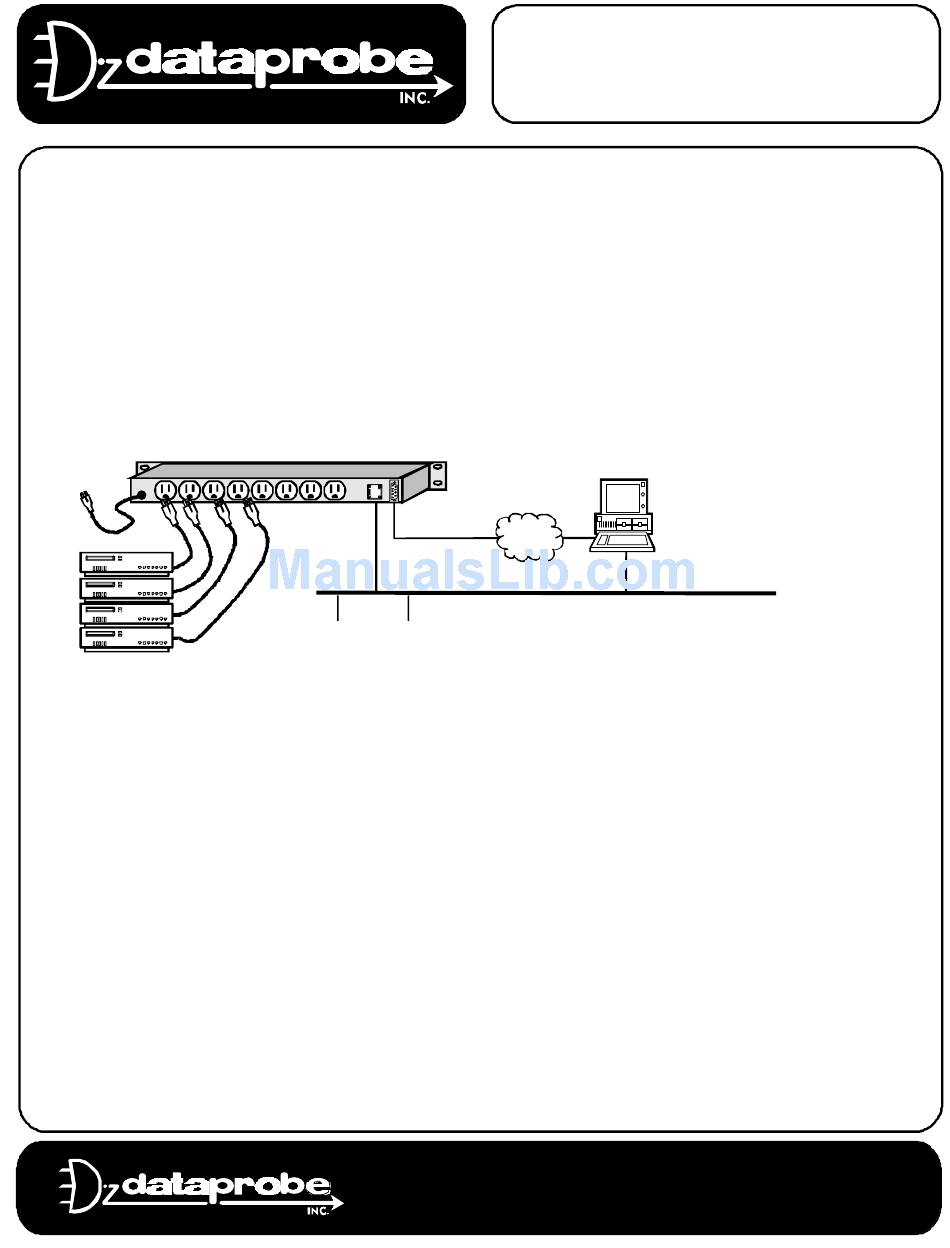

The iP-4xx and iP-8xx series are network attached, IP addressed, Web Controlled, multi outlet, remote A/C power switches.
The following models are covered in this manual.
iP-820
8 switched outlets, for use on 115 VAC, 20 Amp Service – NEMA N5-20
iP-420
4 switched outlets, for use on 115 VAC, 20 Amp Service – NEMA N5-20
iP-815
8 switched outlets, for use on 115 VAC, 15 Amp Service – NEMA N5-15
iP-415
4 switched outlets, for use on 115 VAC, 15 Amp Service – NEMA N5-15
iP-810
8 switched outlets, for use on 115/230 VAC, 12 /10 Amp International – IEC 320
iP-410
4 switched outlets, for use on 115/230 VAC, 12 /10 Amp International – IEC 320
"M" suffix designations in the model name indicate models equipped with an internal modem.
Power Control 4 or 8 Devices
Table of Contents
Important Safety Information
Hardware Installation
iPAL Configuration
IP Address
Setting up Dial-Up Networking
Configuration Parameters
Telnet Operation
Web Browser Operation
Specifications
Tech Support & Warranty
REF: PWR\IP8xx_UL_V020318D.DOC
Dial-up
In-Band and Out-of-Band Control
TCP/IP over 10base-T Ethernet
2
3
7
13
14
15
16
Technical Support Hotline: (201) 967-8788
11 Park Place / Paramus, New Jersey 07652
TEL: 201-967-9300
Website: www. dataprobe.com Email: tech@dataprobe.com
iPAL
Web Controlled Power Switches
Any Networked
PC Running
Web Browser or
Telnet
FAX: 201-967-9090
Advertisement
Table of Contents
Related Manuals for Dataprobe IP-410
Summary of Contents for Dataprobe IP-410
- Page 1 iPAL Web Controlled Power Switches Overview The iP-4xx and iP-8xx series are network attached, IP addressed, Web Controlled, multi outlet, remote A/C power switches. The following models are covered in this manual. iP-820 8 switched outlets, for use on 115 VAC, 20 Amp Service – NEMA N5-20 iP-420 4 switched outlets, for use on 115 VAC, 20 Amp Service –...
-
Page 2: Important Safety Instructions
iPAL Page 2 Important Safety Instructions When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings in the manual and marked on the product. 3. -
Page 3: Hardware Installation
iPAL Page 3 SAVE THESE INSTRUCTIONS Hardware Installation Important Note: Make all communications connection prior to applying power. To change communications cables, remove power or power cycle the unit after connections. Model iP-820 & iP-815 8 NEMA 5-15 Outlets, 115VAC 10base-T (J2) + Serial (J1) Model iP-820-M &... -
Page 4: Serial Port Pinout
iPAL Page 4 10baseT Connector The 10baseT connector is located on the rear panel of the IPAL. It provides connection to the Ethernet. Note: Connection to an Ethernet hub is made using the cable provided. To directly connect to a PC, a crossover cable is required. -
Page 5: Expansion Connection
iPAL Page 5 Expansion Connection * 4 Outlet versions only * This connection provides for expansion to eight controlled outlets with the addition of model K-415 or K-410 and cable 1940044. Expansion can also be to individual power modules like the K-10-IEC, K-12A or K-30A using cable 1940045. The Control interface is a contact closure (form A) and can be used with any system that responds to a relay. -
Page 6: Setting The Ip Address Using Arp
iPAL Page 6 iPAL Configuration Configuration of the iPAL involves the following steps: Setting iPAL's IP Address Configuring Dial-up Networking (Optional) Setting Configuration parameters using Telnet 1) Setting I/P Address iPAL comes with factory installed IP address 192.168.1.254. In most cases this will need to be changed. Consult your Network Administrator to determine the appropriate IP address. -
Page 7: Configuring Dial-Up Networking
iPAL Page 7 2) Configuring Dial-up Networking Use of the Internal modem (if provided) or use of an external modem require the setup of PPP connection using Dial-up Networking. The following describes the procedure for setup in Windows 98. If you computer supports another operating system, consult your network administrator for proper setup details. - Page 8 iPAL Page 8 E) Click on TCP/IP settings. Change the settings to match the screen to the left and click OK. Then OK again to close the Dial-up Networking window. To Connect to iPAL using Dial-up Networking A) Double click the dial up networking icon you have just created. No user name or password is required.
-
Page 9: Menu System
iPAL Page 9 3) Setting Parameters using Telnet Additional configuration parameters need to be set using Telnet. To connect to the iPAL using telnet, run your telnet client program (provided with your operating system) and connect to the IP address as set in step one above. For Windows: Select Run…Telnet Connect…192.168.1.254 (or the IP address you set as above) -
Page 10: Location Name
iPAL Page 10 Upon entering the password, the main menu is displayed: Location Mode = 6 Status Feedback Outlet 1 Outlet 2 Outlet 3 Outlet 4 - Select relay to toggle P# - Pulse relay - Setup - Exit Enter > Select S to access the setup Menu iPal Setup 1. - Page 11 iPAL Page 11 Operating Mode * Std. Default = 6 * The iPAL supports seven operating modes, which determine how information is displayed, how the inputs are used and how the LED indicators operate. The following chart details each Operating mode. Relay De- Relay Energized...
-
Page 12: Telnet Operation
iPAL Page 12 Telnet Operation Access for operation via telnet is the same as access for configuration. Location Mode = 6 Status Feedback Outlet 1 Outlet 2 Outlet 3 Outlet 4 Outlet 5 Outlet 6 Outlet 7 Outlet 8 - Select relay to toggle or A for All P# - Pulse relay - Setup - Exit... -
Page 13: Web Browser Operation
iPAL Page 13 Web Browser Operation iPAL can be accessed by any Web Browser. To access iPAL, address your browser to the IP address set in iPAL. As shown in the screen right, this browser is connected to iPAL with address 192.168.1.195. You can add iPAL locations to your Bookmarks or Favorite Places and name them as convenient. - Page 14 iPAL Page 14 Upon completion of your control session, click on logout. This will terminate the session and release iPAL to the next user. The Goodbye page will be displayed:...
-
Page 15: Specifications
iPAL Page 15 SPECIFICATIONS Physical 19” wide x 6.25” deep x 1.75” high, EIA Rack Mount -1RU Power Model iP-820 & iP-420 110 -120VAC 60 Hz, 16A Max Model iP-815 & iP-415 110 -120VAC 60 Hz, 12A Max Model iP-810 & iP-410 Switch Selectable ;... -
Page 16: Warranty
iPAL Page 16 TECHNICAL SUPPORT, RETURNS and WARRANTY Dataprobe Technical Support is available 8:30AM to 5:30PM ET to assist you in the installation and operation of this product. To obtain Technical Support call our Tech Support Hotline at 201-967- 8788, or Email us at tech@dataprobe.com. Please have the following information available when you call: Model of Product Serial Number...
