Technical Support: 201-934-5111
Main: 201-934-9944

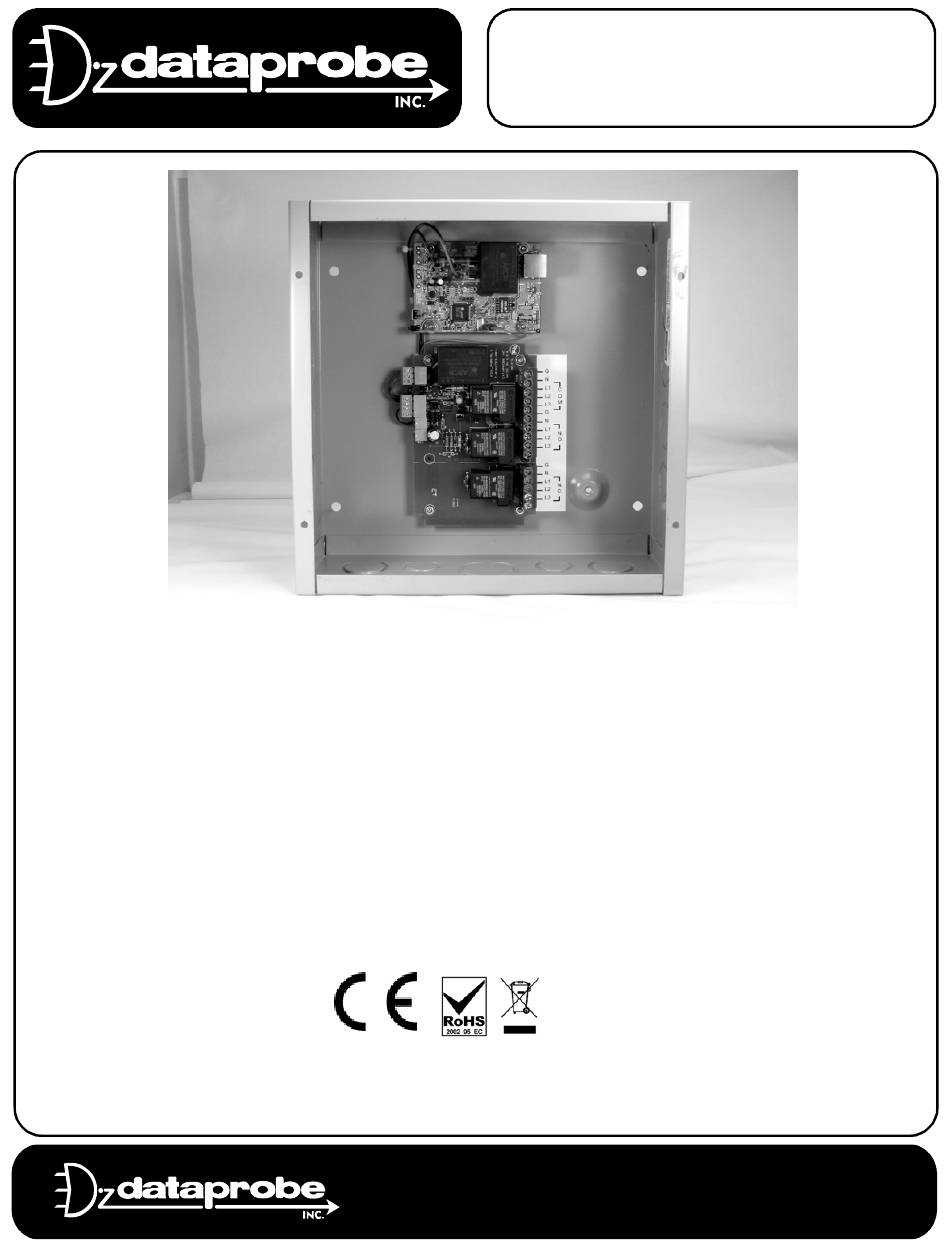

iBoot-30A
Web Enabled Power Switch
110/240 VAC 30 Amp
tech@dataprobe.com
Website: dataprobe.com
8
13
17
18
19
20
Advertisement
Table of Contents
Related Manuals for Dataprobe iBoot-30A
Summary of Contents for Dataprobe iBoot-30A
- Page 1 Web Enabled Power Switch 110/240 VAC 30 Amp Table of Contents Table of Contents 1 Web Setup 8 Important Safety Instructions 2 Command Line Interface 13 General Description 3 Firmware Upgrades 17 Hardware Installation 4 Troubleshooting 18 Initial Configuration 5 ...
-
Page 2: Important Safety Instructions
Page 2 Important Safety Instructions When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and marked on the product. -
Page 3: General Description
30 Amps. A simple Web browser interface makes it easy to control power from anywhere in the world with a click of a mouse. iB-30 also supports Telnet for text commands, as well as Dataprobe’s Exchange Protocol (DxP) for interfacing to a variety of Dataprobe products and custom software development. -
Page 4: Hardware Installation
Page 4 Hardware Installation Ethernet Connections iB-30 supports 10/100 Ethernet using the cord supplied, or other Ethernet suitable unshielded twisted pair (Cat 5) cabling. Remove the cover of the metal box. Select one of the small knockouts and open it up by prying itwith a screw driver or similar tool. -
Page 5: Initial Configuration
IP address. Install and run the Device Management Utility: 1. Download DMUSetup.exe 2. Run DMUSetup.exe DMU Discovers Dataprobe Devices 3. Install the DMU on your Network 4. Run the DMU Note: The IP address can only be set within the... - Page 6 Page 6 Change the IP Address 1. Click on the row containing the iB-30 to be set. The row will become highlighted. 2. From the menu select Set -> IP Address 3. Enter the new IP Address into the form. Click OK when done.
-
Page 7: Web Browser Operation
Page 7 Web Browser Operation Password Protection iB-30 uses two username/password credential sets, one for normal power control (User) and one that also provides access to the setup functions (Admin). admin Default Credentials: Role Username (fixed) Password (user set) -
Page 8: Web Setup
Page 8 When you are finished with iBoot, click on Logout. A confirmation page will be displayed. If another user is logged into the iB-30, a In Use page will be displayed. iB-30 uses an inactivity timer for security. This timeout is user selectable from 0 to 99 minutes. - Page 9 Telnet Port: This setting is used to allow access to the iB-30 via telnet by ports other than standard DxP Port: This setting is used to allow access to the iB-30 via Dataprobe Exchange Protocol (DxP) via ports other than standard 9100.
- Page 10 Page 10 AutoPing Settings IP Address 1 and 2: Enter one or two the IP addresses of the device(s) to be pinged. Ping Frequency: Enter 1 to 999 seconds. The ping will go out to the selected device this often.
- Page 11 Page 11 Note: All of the AutoPing Settings require a reboot of the iB-30, after clicking Save. A Reboot button will appear at the bottom of the page. The new settings will not take effect until the unit is rebooted.
- Page 12 Page 12 Passwords Two passwords are used by iBoot. The User Password allows access to the control of iBoot, but not to the Setup functions. When this password is used, the main screen will not have a link to Setup. The Administrator Password allows access to both the Main Screen and the Setup Screen.
-
Page 13: Command Line Interface
Page 13 Command Line Interface The iB-30 Command Line Interface (CLI) provides a text based method for communicating with the iBoot. The syntax of the CLI uses a basic Set (change a variable) and Get (retrieve a variable). The CLI is accessed through the Telnet protocol and requires a Telnet client program. -
Page 14: Autoping Commands
Page 14 DxP Port: 9100 Timeout: 2 set ipmode <static | dhcp> This command sets the ip address setting mode. Static mode locks the address as set, dhcp mode allows DHCP server to assign address. set ipaddress <dotted decimal> This command is used to set the iB-30’s ip address. -
Page 15: User Commands
Page 15 USER COMMANDS These commands are only available to the administrator. set password <user | admin> <old> <new> This command is used to set the password of either the user <repeat> user or administrator. admin These commands are only available to the EVENT COMMANDS administrator. - Page 16 Page 16 prompt will remain the active prompt until the iB-30 has been rebooted. iBoot-30a_v101118e...
-
Page 17: Firmware Upgrades
Page 17 Firmware Upgrades The iB-30+ can be field upgraded. Find the latest version, or special purpose versions at http://dataprobe.com/support/iboot/ Upgrading the firmware with a minor upgrade (i.e. 1.01.xx to 1.01.yy) will not alter the user defined settings. Major upgrades may or may not reset the iB-30+ to factory defaults. Check the release notes for the upgrade before making changes to you iB-30+. -
Page 18: Troubleshooting
Page 18 Troubleshooting The iB-30 has a recessed pushbutton switch in the event the unit is not performing as expected. Caution: Be very careful not to touch or contact any of the terminal blocks or AC wiring when the unit is connected to the AC power source. Use the pushbutton as follows:... -
Page 19: Specifications
Page 19 Specifications Physical Height 4.0” 120mm Width 8.0” 240mm Depth 8.0” 240mm Weight MTBF Temperature 0 – 50 degrees C Input/Output Screw Terminals Max Wire Size: 10AWG Voltage Range Auto Sensing 105-240 VAC Capacity 30 A Max at 105-125 VAC, 10 A Max at 210-240 VAC... -
Page 20: Technical Support And Warranty
Page 20 Technical Support and Warranty Dataprobe Technical Support is available 8:30AM to 5:30PM ET to assist you in the installation and operation of this product. To obtain Technical Support call 201- 934-5111, or Email us at tech@dataprobe.com. Please have the following information available when you call: •...
