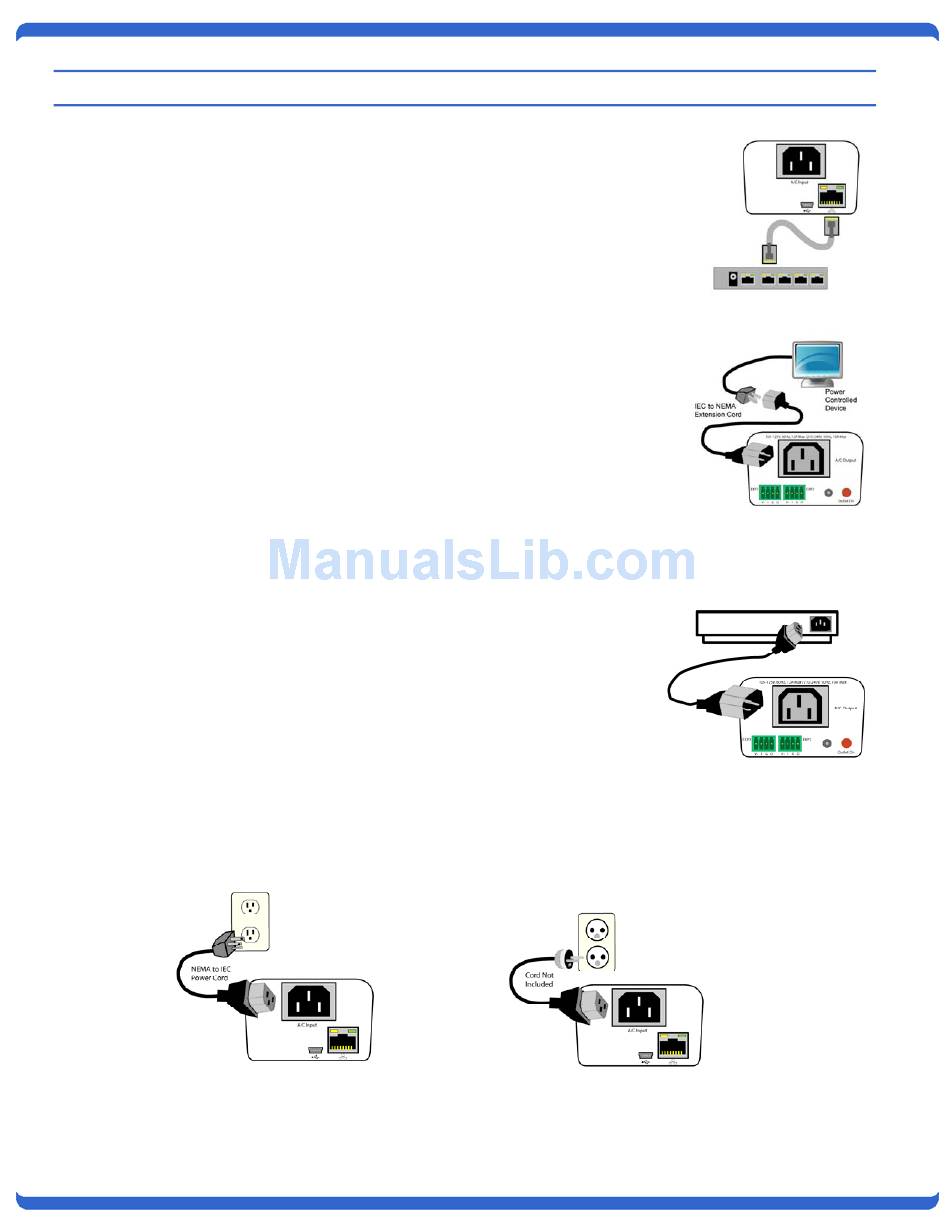

4.1. Ethernet Connections
iBoot-G2+ supports 10/100 Ethernet using the cable supplied, or
other suitable unshielded twisted pair (Cat 5) cabling.
(amber) and Activity (green) LEDs on the network connector
indicate when the network connection is properly established.
4.2. AC Power Connections
Connect the device to be powered ON and OFF to the IEC
receptacle marked A/C Outlet. An IEC 320 to North American
(NEMA 5-15) power cord is included for connecting the iBoot-G2+
outlet to the device to be controlled.
If a cord with a different terminating receptacle is required, be sure
it is properly rated and meets all the required local electrical
standards. If the device to be powered uses an IEC320
receptacle and detachable power cord, an IEC to IEC extension
cord can be used.
The iBoot-G2+ can be connected to a power strip to allow
simultaneous control of multiple devices.
Make sure that the combined load of all controlled devices does
not exceed 12 Amps for 105-125VAC or 10 Amps for 210-
240VAC.
An LED Indicator next to the Switched Outlet will be On to indicate
that the power is On at that outlet. This LED will turn Off to
indicate that the power is Off to the outlet.
Connect the supplied power cord to the connector labeled AC
Input, and the other end to your AC source. If a power cord with
a different terminating plug is required, be sure it is properly rated
and meets all the required local electrical standards.
Power Cord for North
America Included
V110120E

4. Hardware Installation

iBoot-G2+
Link
Connect 10/100 Ethernet
IEC to NEMA 5-15 Outlet
Cord for North America
Source Additional Outlet
Source Additional
Power Cords Locally
Included
Cables Locally
