PRODUCT SETTINGS TAB

To access the Product Settings tab:

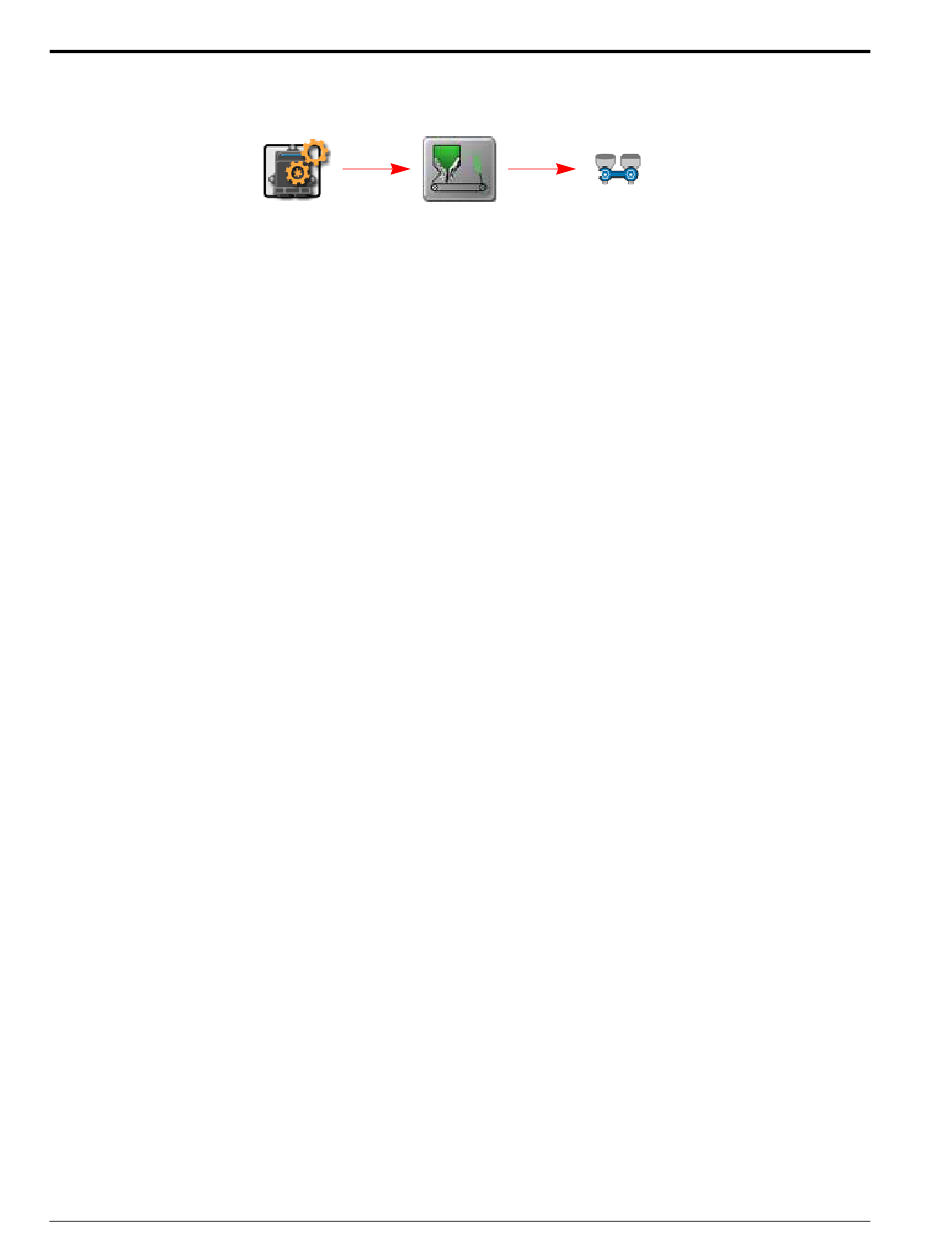

1. Touch the Edit icon in the Machine Panel to view the Machine Devices.
2. Locate and select the Product Control button.
3. Touch the Product Settings tab.
4. Touch the product indicators along the left of the prompt to select the control channel to which the pump is
assigned.
Set Application Type to Liquid Injection. The application type should automatically be set to liquid injection
when ROS detects a Sidekick Pro injection system. Refer to the injection system troubleshooting information or
contact a local Raven dealer for additional assistance if the liquid injection option is not available for the
application type.
Set Tank Capacity (Optional). Set the tank capacity to the approximate total capacity of the chemical tank(s)
attached to the pump. Enter the volume of chemical normally used to fill the chemical supply tank or enter
the current tank volume. Approximately 50 Gallons (6400 ounces) for each pump. This value will be used
during field operation to calculate when the tank is low or empty. This value must be reset when refilling the
product.
Refer to the Alarm Settings Tab section on page 65 for additional assistance with the low tank alarm feature for
use during operation.
Set Tank Level (Optional). Set the tank level to approximate amount of chemical that is currently in the tank(s)
that the pump is connected to.
Set Rate Bump. Set the rate bump to the desired target rate adjustment amount during operation. Enter the
desired increments by which the target rate will increase or decrease when using the rate bump widget on the
guidance screen. Each control channel must be programmed with the desired rate bump value. If no value, or a
value of zero, is entered the rate bump buttons will have no affect on the selected product application rate on
the guidance screen.
Enable Agitator (Optional). An optional tank agitator may be used to continually mix chemical suspensions
which can help to ensure uniform application. If an agitator is installed with the injection system, enable the
agitator feature and actuate the power switch on the agitator motor. The agitator should work anytime the
agitation feature is enabled and the power switch is on.
NOTE: Disable this option if the injection pump is not used or if the chemical supply tank is empty.
agitator option is enabled, pump 1 will turn on agitation in both chemical tanks. Disable individual
tank agitation by turning off agitation switch at chemical agitator on tanks.
Enable Display Smoothing. Enable the smoothing feature to allow ROS to smooth the actual rate display during
field operations. With this feature enabled, ROS will display the target application rate as the actual rate as long
as the actual rate is within 10% of the target rate.
If the actual rate is outside of the target rate dead band (±10%) for 10 seconds, ROS will display the actual
application rate.
Enable Ratio Rate (Optional). The ratio rate application mode allows the operator to configure application of an
injected chemical at a rate proportional to the carrier product flow rate. The ratio rate mode must be enabled
and a rate cal value must be entered in a ratio (oz./gal or dL/L) for each product controlled in ratio to the
carrier.
