Tools & Equipment
The following list of tools and equipment is needed for successful
installation of the transmitter assembly. Before beginning the
installation, gather the following required tools and equipment.
Most of these tools are available from PTI Security Systems.
• PL Premium
• Screw drivers (battery-powered recommended)
• Caulking Applicator Gun (standard tube size)
• Drill with Bits
• Concrete Drill Bits (depending on building construction)
• Transmitter Mounting Hardware Kit (See "Drawing 3:
Mounting hardware kit")
• Pop Rivet Tool (See "Drawing 2: Rivet tool" on page 3)
The rivet tool has a special extension on the nose piece that
allows it to align properly with the magnet mounting holes
• Pop Rivets for Magnet Mounting (See "Drawing 2: Rivet
tool")
• Transmitter alignment tool

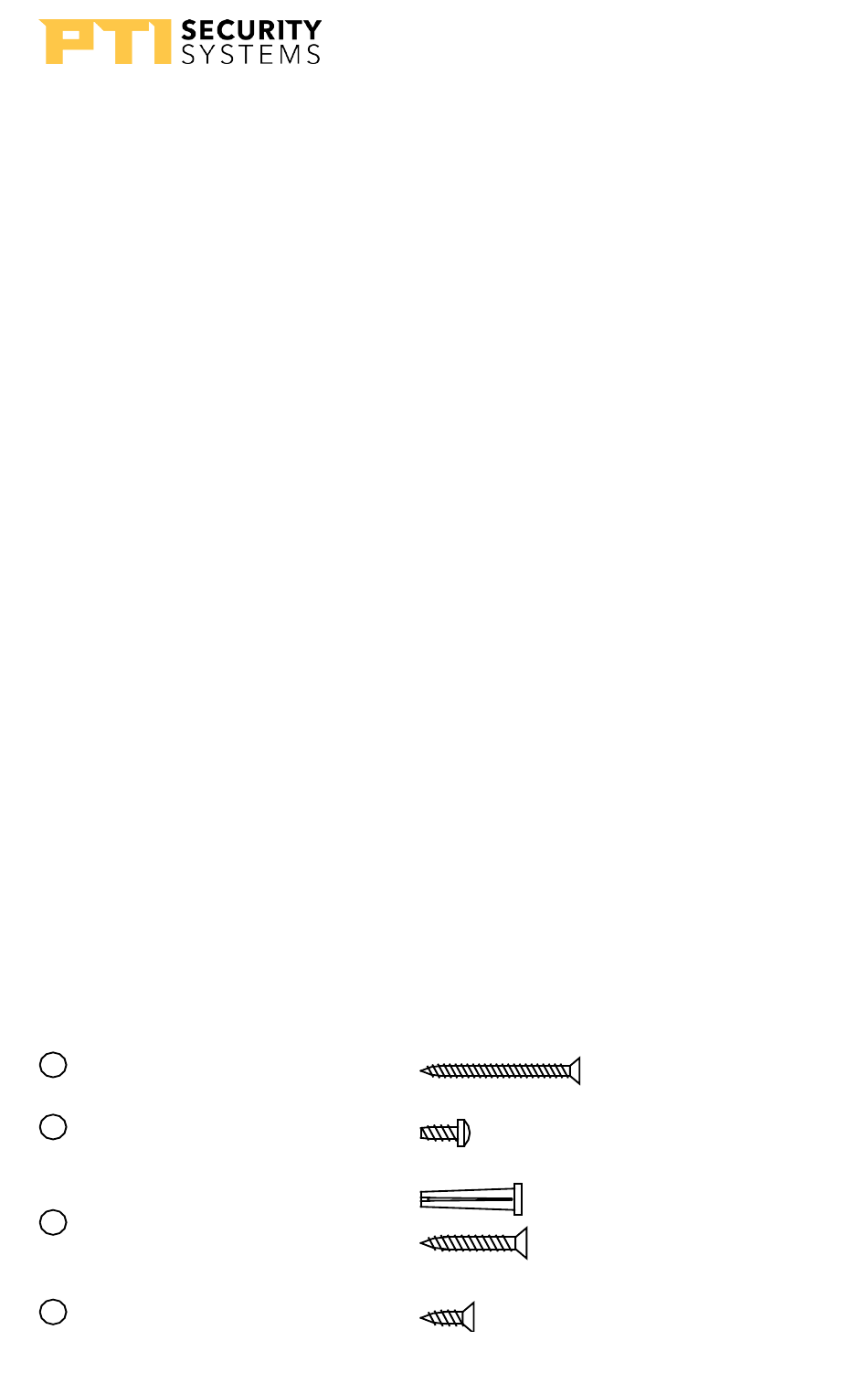

Drawing 3: Mounting hardware kit
1 #6 × 1-1/2" FH Sheet metal screw.
2 6-32 × 3/8" PH Thread cutting screw.
#8 Plastic screw anchor - use 0.250"
drill for pilot hole.
3A
#8 × 1" FH Sheet metal screw -
use 0.116" (#32) drill for pilot hole.
#8 × 1/2" FH Sheet metal screw - use
3B
0.116" (#32) drill for pilot hole.
rev. 7-2017 114A3873.D
Wireless Door Alarm System
Construction Adhesive
®
(For transmitter lid)
(For fastening transmitter to
mounting plate)
(For concrete mounting)
(For sheet metal mounting)
4
