Wireless Door Alarm System

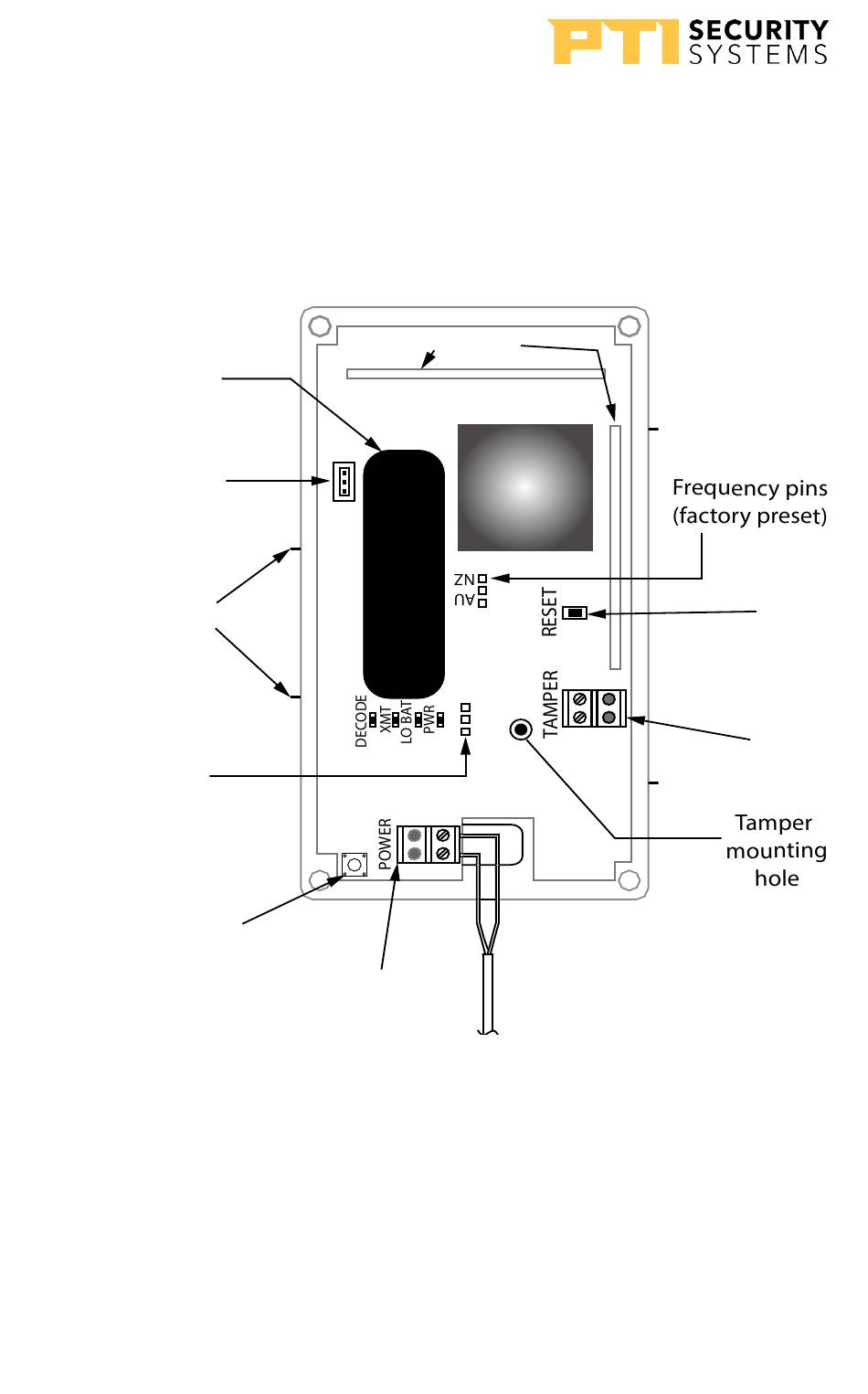

Drawing 21: Repeater LEDs
REPEATER
Antenna
Backup
battery
Battery
connector
Housing
release tabs
Reset
(top & bottom
button
of case)
Tamper
input
Messaging mode
(factory preset)
Tamper button
spring
Power
MAX. TRANSFORMER CABLE
LENGTH = 325 FT
TRANSFORMER
71
114A3873.D rev. 7-2017
