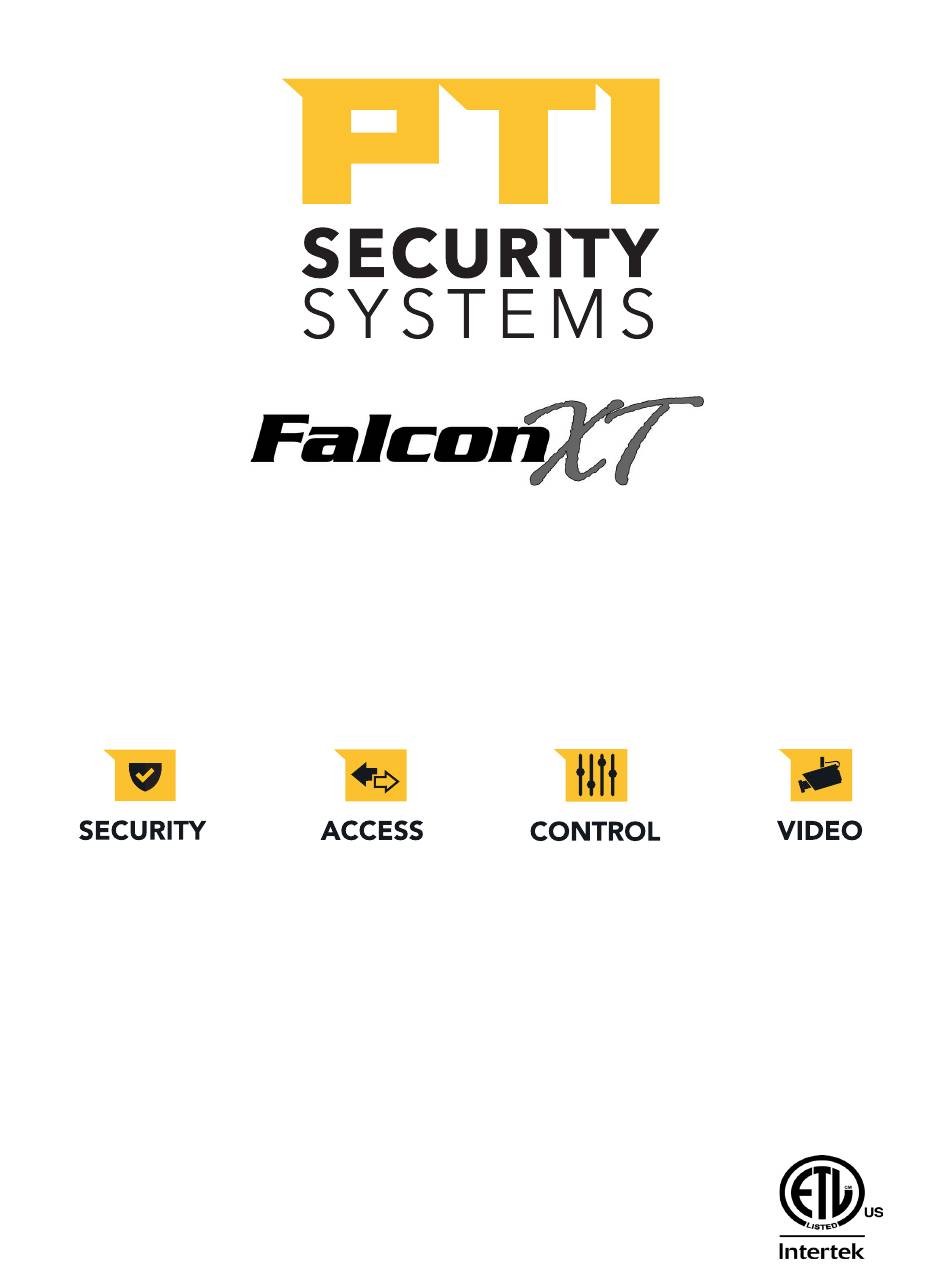

  • Page 1 System Installation Manual www.ptisecurity.com 800.523.9504 114A3866.D Revised July 2017...
  • Page 2 It is designed to be followed from start to finish for proper installation of the Falcon XT™ Access Control System. If you have any difficulties, we strongly recommend that you review this manual prior to contacting Technical Support.
  • Page 3 Changes in environmental conditions, electric or electronic disruptions and tampering may cause the product to not perform as expected. PTI Security Systems warrants its Product to the User. The User is responsible for exercising all due prudence and taking necessary precautions for the safety and protection of lives and property wherever PTI Security Systems products are installed.

  • Page 4: Table Of Contents

    Amperage Calculation ........................11 Cable Voltage Loss .......................... 12 Calculate Voltage Drop ........................13 Pre-Installation Recommendations .................. Unpacking the Falcon XT ....................Typical Wiring Scheme ....................Installing the Falcon XT™ ....................Location ............................21 Controller to Computer Connection ....................22 Controller to AI Devices Connection ....................

  • Page 5: Overview

    Overview The Falcon XT™ offers the access control industry the most comprehensive hardware and software package to the access control industry. It's revolutionary design integrates surveillance, access control, intrusion, lighting, custom scripting, and elevator controls all in one package. •...

  • Page 6: Specifications

    -40°C to +85°C (-40°F to 185°F) Ambient Humidity: 0% to 85% , non condensing Note: The Falcon XT is not intended for outdoor installation. See "Computer System Requirements" on page 3 for computers, components, and peripherals used with the controller.

  • Page 7: Computer System Requirements

    PTI can recommend local dealers and installers, but it is the customers’ responsibility to verify qualifications and negotiate any pricing or contracts (unless PTI Security Systems has been specifically contracted in writing to do so on behalf of the customer).
  • Page 8 Refer to the product manufacturer’s documentation for compatibility information with the operating system in use. PTI Security Systems is not liable for the functioning or reliability of any third party products. Any products recommended by PTI is done so based on evidence of compatability with our product.
  • Page 9 Falcon XT Computer Interface Requirements The following items are required for the operation of the access system controller. • StorLogix™ software, version 4.1 or newer • Ethernet, USB, or RS232 connection Ethernet Cable Connection — maximum length 328 feet (100m) USB Connection —...

  • Page 10: Wire And Cable Specifications

    PTI recommends that you purchase your wire from PTI Security Systems as our recommendations are based on extensive experience with the Falcon XT. PTI verifies that, if installed correctly, the wire will work with the security system.

  • Page 11: Door Alarm Wire Recommendation (From Multiplexer To Door Switch)

    Door Alarm Wire Recommendation (from Multiplexer to Door Switch) Belden PTI Part # Description Wire Code wwir2450 * 9585 24 AWG, 50-conductor solid copper wire (PVC Insulation) wwir2450pl 24 AWG, 50-conductor solid copper wire (Plenum Insulation) wwir2450db 165185110 24 AWG, 50-conductor solid copper wire (Direct Burial) * Denotes standard recommended wire.

  • Page 12: International Wire Cross-Reference

    • If using the USB to connect the Falcon XT™, you MUST use the USB isolator supplied as it will provide the required surge protection. Failure to use the isolator for USB connectivity will void your warranty.

  • Page 13: Battery Operation

    • Office computers, copiers, fax machines, telephones, and other electronics should be plugged into surge protectors or a separate UPS. • Obtain adequate lightning insurance coverage from an insurance agent for all electronic equipment if you are in an area that is prone to regular lightning strikes or electrical storms.

  • Page 14: Power Considerations

    11 volts. All the above conditions are recorded in the Falcon XT event log and can be viewed in StorLogix. If additional power is required, external remote power supplies can be added to the system. For guidance calculating the power requirements of the system, see the "Remote Power Supply"...

  • Page 15: Pre-Installation Recommendations

    PTI can recommend local dealers and installers, but it is the customers’ responsibility to verify qualifications and negotiate any pricing or contracts (unless PTI Security Systems has been specifically contracted in writing to do so on behalf of the customer).
  • Page 16 • PTI Security Systems can supply the necessary wire for your needs. Our recommendations are based on experience and we verify that, if installed correctly, the wire will work with our system.
  • Page 17 Systems immediately (within 5 days of receipt). • We recommend you plug the equipment in and verify that you understand the set up prior to the full site installation. Contact PTI Security Systems immediately if there are any issues. 114A3866.D Revised 7-2017...

  • Page 18: Unpacking The Falcon Xt

    Keys – Used to lock the Falcon XT box after installation and setup are complete to prevent tampering * Images are for reference only and may not exactly represent what is supplied with the Falcon XT controller due to changes in supply or manufacturing.

  • Page 19: Typical Wiring Scheme

    Typical Wiring Scheme The following pages show a typical site wiring scheme. These are shown in order to give the installer an idea of equipment layout and wire planning. Each site will be different and must be planned accordingly. 114A3866.D Revised 7-2017...
  • Page 20 Drawing 2: Installation with circuit board 12VDC CONTROLLER POWER RELAY 4 SUPPLY CIRCUIT BOARD (SHOWN AS EXAMPLE) DEDICATED POWER SUPPLY FOR SINGLE ACCESS INTERFACE POWER & SIREN ONLY (AI DEVICES) BATTERY ETHERNET RS232C -OR- -OR- REFER TO SIREN MANUFACTURER INSTALLATION INSTRUCTIONS FOR PROPER SIREN WIRING.
  • Page 21 SURGE PROTECTION/BATTERY BACKUP Drawing 3: Installation with relay board SURGE PROTECTION ADDITIONAL AI DEVICE SPECS. CAN BE FOUND IN PRODUCT MANUALS RELAY BOARD TEST BATT. TEST ALARM BATT. RELAY BUILDING ENTRANCE KEYPAD (DC POWER CONNECT TO CONNECTION SHOWN) EARTH GROUND −...

  • Page 22: Installing The Falcon Xt

    If the connection uses Ethernet run a separate conduit (at least ¾ inch) from the same area to the router. • If the computer interface connection is via USB, the Falcon XT™ must be less than 16 feet from the computer and does not need second conduit. •...

  • Page 23: Controller To Computer Connection

    Controller to Computer Connection The Falcon XT™ must interfaced with a computer running the StorLogix™ software. This interface can be via Ethernet, USB, or RS232. See "Drawing 4: Controller to Falcon XT computer connection" on page 21. • Ethernet allows high-speed connection over a Local or Wide Area (Internet) network...
  • Page 24 For RS232 connections (up to 50 feet): RS232 cables for connection of the FalconXT to the StorLogix™ computer are available as an accessory from PTI Security Systems. Connect the end marked ‘Controller’ to the RS232C port located on the bottom middle of the controller circuit board.
  • Page 25 SERIAL 114A3866.D Revised 7-2017...

  • Page 26: Controller To Ai Devices Connection

    Controller to AI Devices Connection The system will not operate properly if the voltage is below 12VDC. Take extreme care when choosing a power supply voltage and current rating. Long distance runs may require a remote power supply to be installed in line with an RB5 relay to ensure proper operation.
  • Page 27 Drawing 6: Wiring from controller to AI devices ACCESS INTERFACE POWER & ETHERNET (AI) DEVICES BATTERY RS232C CONTROLLER INSULATED SHIELD WIRE 4-CONDUCTOR, 18GA, SHIELDED CABLE TO ALL DEVICES Keep splices to a minimum. RS485 splices should be made using 3M U-Type connectors and crimpers only.

  • Page 28: Output Relay Connections

    Output Relay Connections The relays have a maximum switching capacity of 30V. Devices with higher voltage must be wired to the system relay through contactor blocks. There are four output relays along the top of the controller circuit board, they can be used for many things, including controlling gate operators, doors, sirens, alarm shunts, lights, elevator controls, and virtual relays.
  • Page 29 114A3866.D Revised 7-2017...

  • Page 30: Door Input Connections

    Door Input Connections There are eight door inputs on the controller circuit board. Door Inputs 1 – 4 are on the lower left side of the board and Inputs 5 – 8 are on the lower right. These door inputs can be used for door alarm switches, request-to-exit switches, motion sensors, photobeams, pressure pads, and many other types of dry contact switches.
  • Page 31 114A3866.D Revised 7-2017...

  • Page 32: Wiegand Input Connections

    Wiegand Input Connections There are two Wiegand device inputs on the controller circuit board. These can be connected to most Wiegand output devices, such as proximity card readers, remote door openers, etc. Refer to the software Help Files for more information on setting up Wiegand inputs. The two Wiegand inputs are commonly used to control a proximity reader to the office entrance where the controller is located, or to control a proximity card reader that allows the proximity cards to be registered and assigned without going out to an AI device on the property.
  • Page 33 114A3866.D Revised 7-2017...

  • Page 34: Power Connections (North America)

    Power Connections (North America) Power connections can be made during initial setup to ensure that all electrical connections are working correctly, but power should remain disconnected until all AI devices are installed and connected and the system is ready for testing. Do not turn on power until all wiring is complete.
  • Page 35 Connect the Ground Wire Strip back the green ground wire coiled inside the case, strip back about ½ inch from the end near the warning tag. Use a wire nut to connect the green ground wire to a ground wire running to a copper grounding post or grounded water pipe as per local code.

  • Page 36: Power Connections (International)

    Power Connections (International) Power connections can be made during initial setup to ensure that all electrical connections are working correctly, but power should be disconnected until all AI devices are installed and connected and the system is ready for testing. Never try to install or connect wire while the power is connected to the system.
  • Page 37 Reliable operation depends upon noise-free, uninterrupted sources of power. In the event of a power loss or emergency failure the Falcon battery backup's primary function is to preserve the integrity of the memory database and system operation. This function does not guarantee the operation of a gate motor or door actuator for emergency situations.

  • Page 38: Troubleshooting The Falcon Xt

    Troubleshooting the Falcon XT To make troubleshooting easier, use a good installer/ service company for the initial install and keep a thorough set of records about the system that includes: • A site map showing the location of all equipment and wiring.

  • Page 39: Reset The System

    Reset the System Locate the controller and press the reset button in the upper left of the circuit board. Hold the reset button in for at least 60 seconds. Large sites with more AI devices may require the button to be held in for a longer time period to be sure that every AI device is reset.
  • Page 41 Appendix Appendix Standard One-Year Equipment Warranty Equipment Location Site Closeout Checklist Contact Information Technical Support Returning Equipment Site Service History Dealer/Servicer Contact Information 114A3866.D Revised 7-2017...
  • Page 42 Appendix Forms The following pages contain several forms that may be useful for the site. We recommend that the Equipment Location and Site Closeout Checklist forms be used for most sites. These forms may be copied. Equipment Location Keep this, along with a wiring map of the site, on-site with this manual.
  • Page 43 Appendix Equipment Location Site Name:_______________________________ Date of Install:_______________ Site Address:___________________________________________________________ AI Device Purpose of Notes/Other AI Device Type Location on Site Address Device Information * Make additional copies of this form if more space is needed. 114A3866.D Revised 7-2017...
  • Page 44 Date of Install:_______________ Dealer/Installer: ___________________________________________________________ Following is a list of the major functions of the installed Falcon XT system. The installer and a representative of the site should review each item and verify functionality. Each item in the categories below should be checked as it is verified in working order.
  • Page 45 Appendix Site Closeout Checklist (cont’d) Door Alarm System: this step is very important … Open and close every alarmed door on-site in sequential order. and can be performed ahead of time and proven by the next step below. … Print a ‘Site Activity by Date’...
  • Page 46 By signing below, I acknowledge that the listed systems have been installed correctly and are functioning properly. I certify that the installation meets all applicable codes and is installed to PTI Security Systems’ specifications except where code takes precedence. I certify that a representative of the site has been trained in the maintenance and operation of the systems.
  • Page 47 Appendix Site Service History Complete this form each time installation, service, or maintenance is performed on the system. This history can be very useful in problem-solving if issues arise. Date: Servicing Company: Name & Phone Number of Tech: Services Performed: Date: Servicing Company: Name &...
  • Page 48 Appendix Site Service History Date: Servicing Company: Name & Phone Number of Tech: Services Performed: Date: Servicing Company: Name & Phone Number of Tech: Services Performed: Date: Servicing Company: Name & Phone Number of Tech: Services Performed: Date: Servicing Company: Name &...
  • Page 49 Appendix Site Service History Complete this form each time installation, service, or maintenance is performed on the system. This history can be very useful in problem-solving if issues arise. Date: Servicing Company: Name & Phone Number of Tech: Services Performed: Date: Servicing Company: Name &...
  • Page 50 Appendix Dealer/Service Contact Information Please complete the information below and keep this page in the manual so that the customer has this information for future sales, installation, and servicing needs. Dealer who sold the system: Company Name: Contact Person: Address: Phone Number: Fax Number: E-mail:...

  • Page 51: Standard One-Year Equipment Warranty

    This warranty will not be modified or varied. PTI Security Systems does not authorize any person to act on its behalf to modify or vary this warranty. This warranty applies to PTI Security Systems products only. All other products, accessories, or attachments used in conjunction with our equipment, including batteries, will be covered solely by their own warranty, if any.
  • Page 52 For Technical Support, Please Visit: tickets.ptisecurity.com mfr part #:114A3866-D Revised July 2017...
