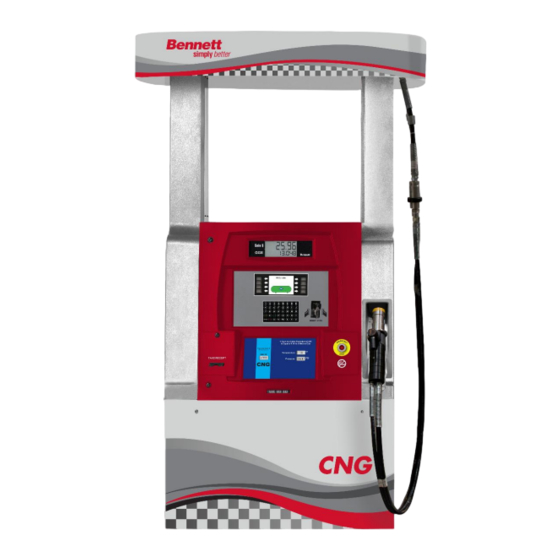

CNG Series Remote Dispensers
Only Trained Personnel May Work on This Equipment
READ THIS MANUAL
This manual has important information for safe installation and operation of this equipment. Read and understand
this manual before applying power. Keep this manual and tell all service personnel to read this manual. If you do not
follow the instructions, you can cause bodily injury, death, or damage to the equipment.
Bennett CNG Series
Installation Manual
120950 Revision L 8/2/17
Bennett 1218 E. Pontaluna Road, Spring Lake, MI 49456
USA 800-235-7618 ~ Outside USA 231-798-1310
sales@bennettpump.com ~ www.bennettpump.com
