Configuration Of Paxton Net2 Plus Modules - Altronix Trove2 Installation Manual

1. Align the Paxton Net2 Plus modules on the backplane to match the modules' mounting holes with corresponding pems.
2. Fasten standoffs (provided) onto metal pems (Fig. 2a, pg. 3).
3. Mount Paxton Net2 Plus modules to standoffs utilizing pan head screws (provided) (Fig. 2a, pg. 3).
Note: Paxton Net2 Plus modules have one (1) RJ45 jack and one (1) switch each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
4. Fasten TPX2 backplane to Trove2 enclosure utilizing hardware (provided).

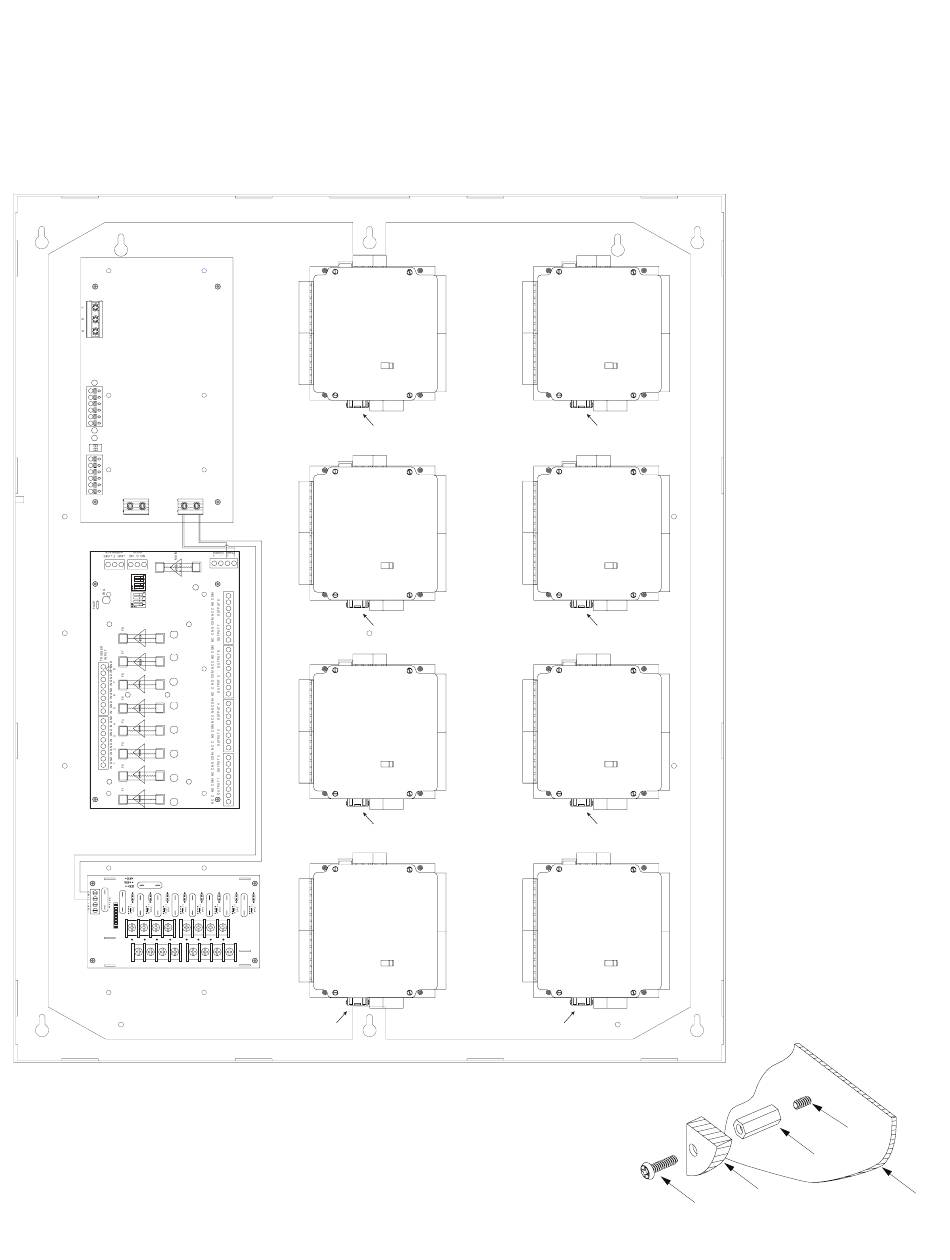

Fig. 2
Altronix
eFlow104NB
– BAT + – DC +
Altronix
ACM8
DM1 + OFF
IN1 Fuse
Altronix PDS8
IN1
10
IN2
10
3
3 3 3
P
OUT1 OUT2 OUT3 OUT4
Common (--- )
N
DM2 +
1 2 3 4
Common Power Outputs (NEG)
Altronix VR6 mounted under PDS8
T2PXK7F8

Configuration of Paxton Net2 Plus Modules:

Paxton Net2 Plus
Paxton Net2 Plus
Paxton Net2 Plus
DM1 +
3 3 3 3
Paxton Net2 Plus
OUT5 OUT6 OUT7 OUT8
Common (--- )
DM2 +
5 6 7 8
RJ45 Jack
Switch
RJ45 Jack
Switch
RJ45 Jack
Switch
RJ45 Jack
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
Pan Head
Screw
Fig. 2a
Pem
Standoff
Paxton
Backplane
Net2 Plus
- 3 -
