MEASURING INSTRUCTION
DROP-ARM AWNING V124 - CALPE

A good preparation!

Keep the following attention points into account when ordering an awning.

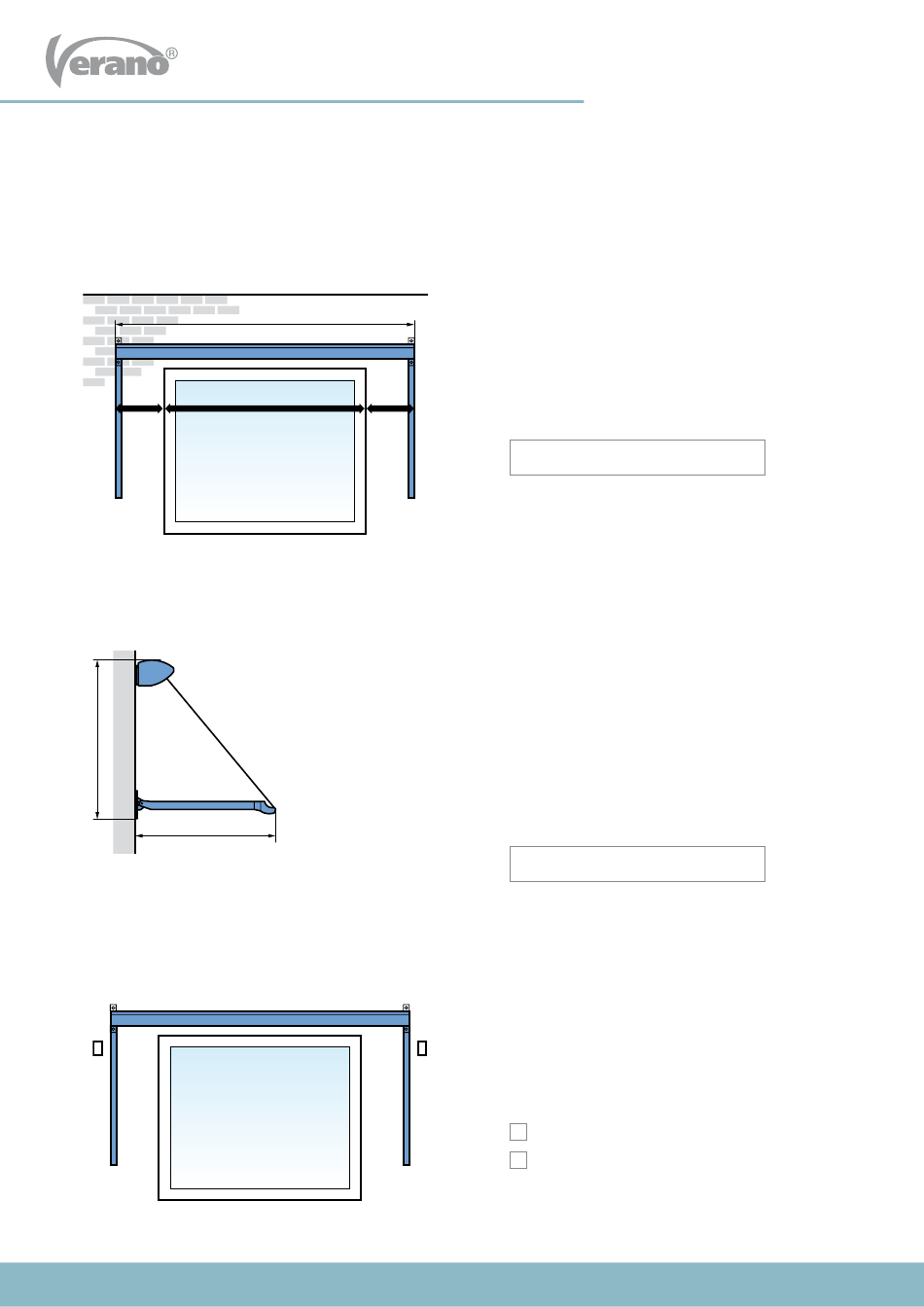

1. Determine the desired width in centimeters.

2. Choose the desired projection.

H
H
P
U

3. Choose the control side.

L
Subject to misprints, errors and technical modifications.
W
B
R
It is advisable to measure the awning as wide as
possible, at least 50 to 100 centimeters if possible.
It is, of course, not a problem if there is no more
than 30 centimeter overlap.
Width (W) =
The bigger the projection, the bigger the effect of
the drop-arm awning. Only the following standard
projection sizes are possible: 50, 60, 70, 80, 90 or 100
centimeter.
Keep the height (H) on the wall that is needed for the
drop-arm into account. For the V124-Calpe this is:
projection (P) + 20 centimeter = height (H).
Projection (P) =
Determine the control side. The control side is
always seen from the outside. Attention! If the wire
of the electrical control (outside) goes in on the left
side, the wire is, seen from the inside, on the right
side and vice versa.
Left
Right
1
mm
mm
