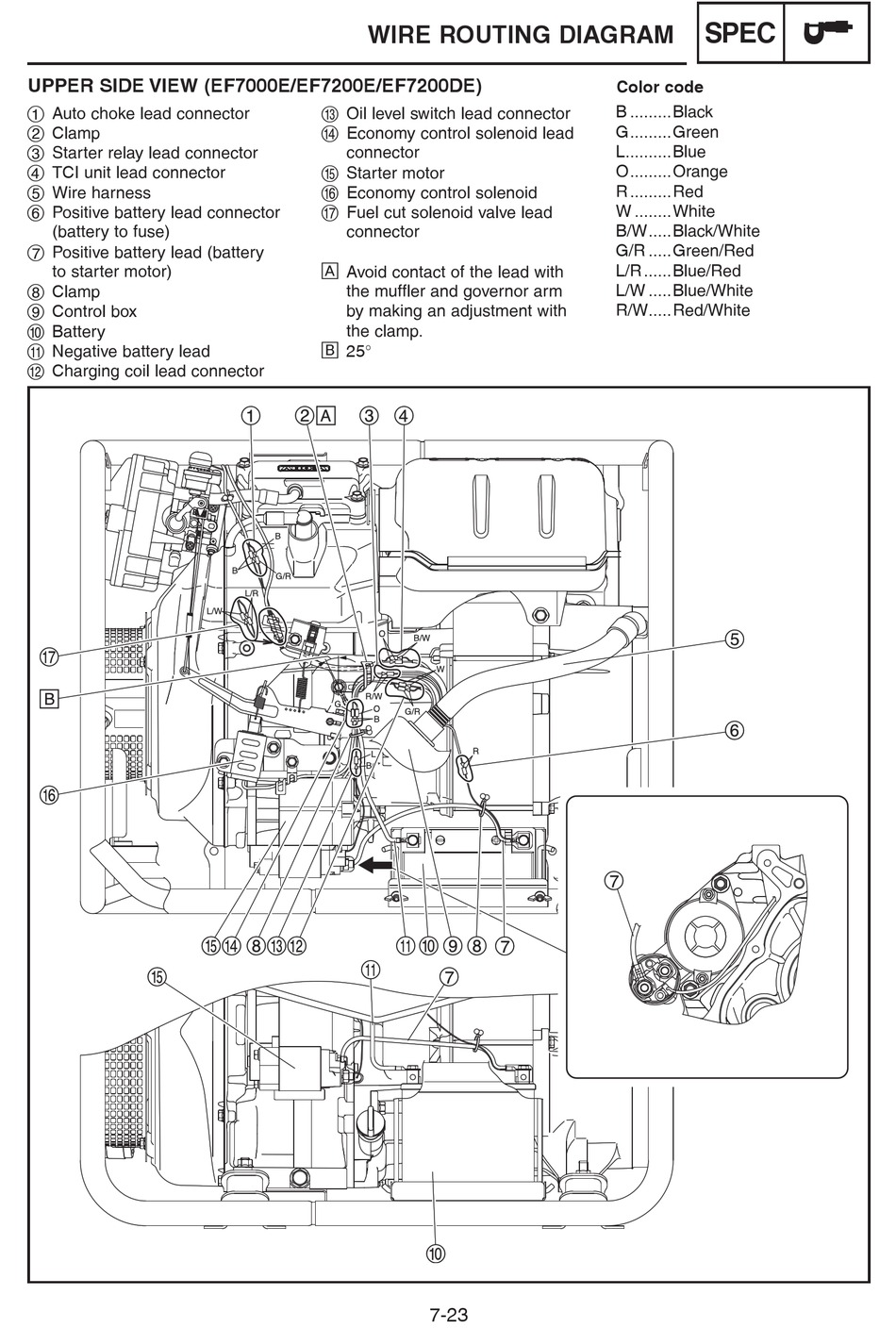

UPPER SIDE VIEW (EF7000E/EF7200E/EF7200DE)
1 Auto choke lead connector
2 Clamp
3 Starter relay lead connector
4 TCI unit lead connector
5 Wire harness
6 Positive battery lead connector
(battery to fuse)
7 Positive battery lead (battery
to starter motor)
8 Clamp
9 Control box
0 Battery
q Negative battery lead
w Charging coil lead connector
WIRE ROUTING DIAGRAM
e Oil level switch lead connector
r Economy control solenoid lead
connector
t Starter motor
y Economy control solenoid
u Fuel cut solenoid valve lead
connector
A Avoid contact of the lead with
the muffler and governor arm
by making an adjustment with
the clamp.
B 25°
7-23
SPEC
Color code
B .........Black
G .........Green
L..........Blue
O .........Orange
R .........Red
W ........White
B/W .....Black/White
G/R .....Green/Red
L/R ......Blue/Red
L/W .....Blue/White
R/W .....Red/White
