14. Attach the access panel – with the corrugated tubing and all
cords – to the machine stand with the screws that you set
aside in Step 12 using a 2 mm hex wrench.

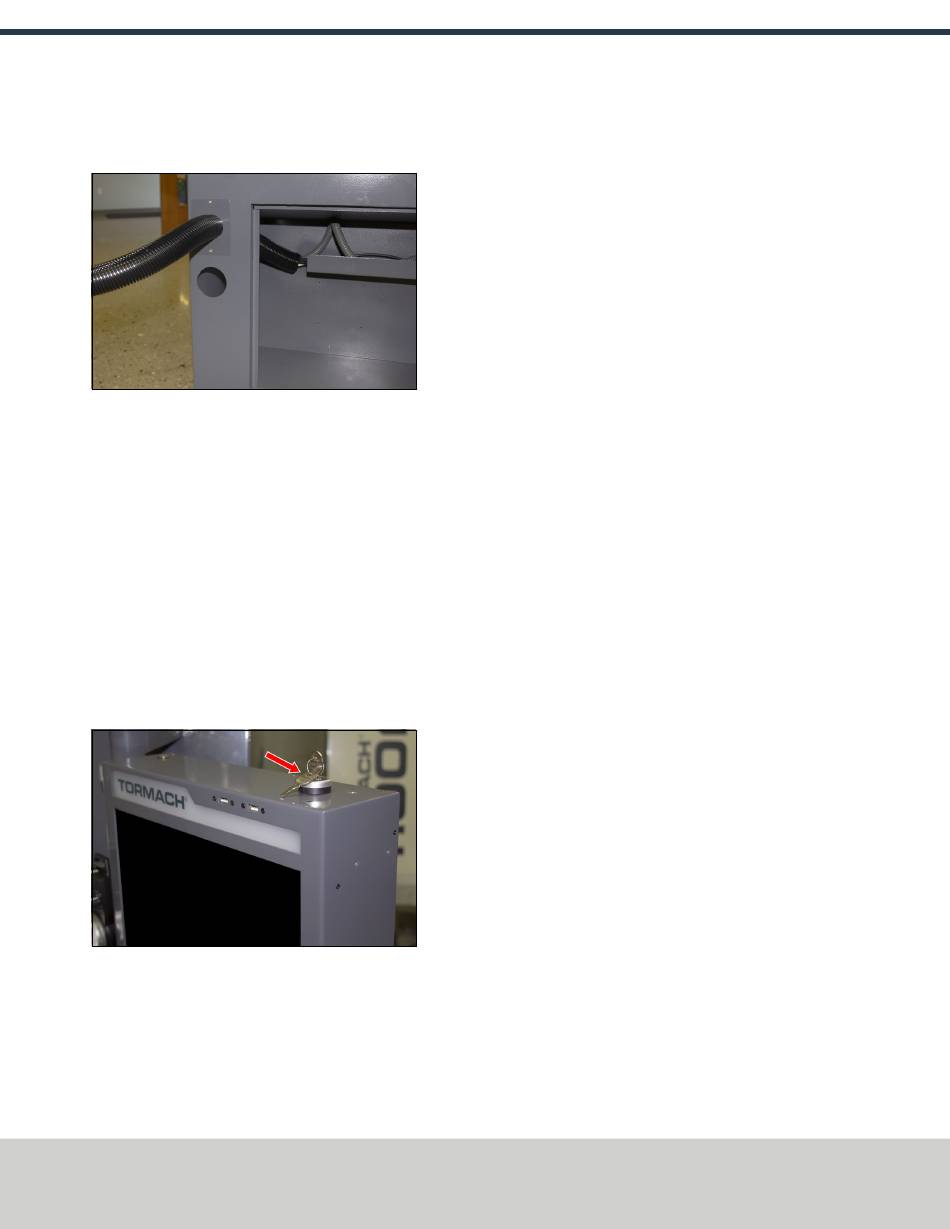

Figure 2-22: Access panel attached to the machine stand.
15. Route the loose end of all cords through the machine stand
and out toward the rear of the machine.
16. Connect the operator box extension cable to the existing
operator box cable (preinstalled on the machine).
17. Connect the Ethernet cable to the Controller Communications
port on the side of the electrical cabinet.
18. From the ATC, remove and discard the existing USB cable.
Then, route the loose end of the ATC USB cable from the
controller to the ATC, and connect it in place of the original
USB cable.
19. If you have an EU model of the PathPilot Operator Console
Assembly for 770M/770M+/770MX, find the provided set of
keys, and put it into the top of the controller.
Figure 2-23: Key put into the controller.
For more information on operation modes, refer to the EU
machine operator's manual.
2.5 REASSEMBLE THE MACHINE
1. Put the right side window (that you set aside in "Prepare the
Machine" (page 3)) back into the right side panel on the
©Tormach® 2020
Specifications subject to change without notice.
enclosure. Then, tighten the screws on the vertical window
retainers
2. Power on the machine and the PathPilot controller.
a. Turn the Main Disconnect switch to ON on the side of the
electrical cabinet.
b. Twist out the Emergency Stop button on the operator box,
which enables movement to the machine axes and the
spindle.
c. Press the Reset button on the operator box.
d. Bring the machine out of reset and reference it.
