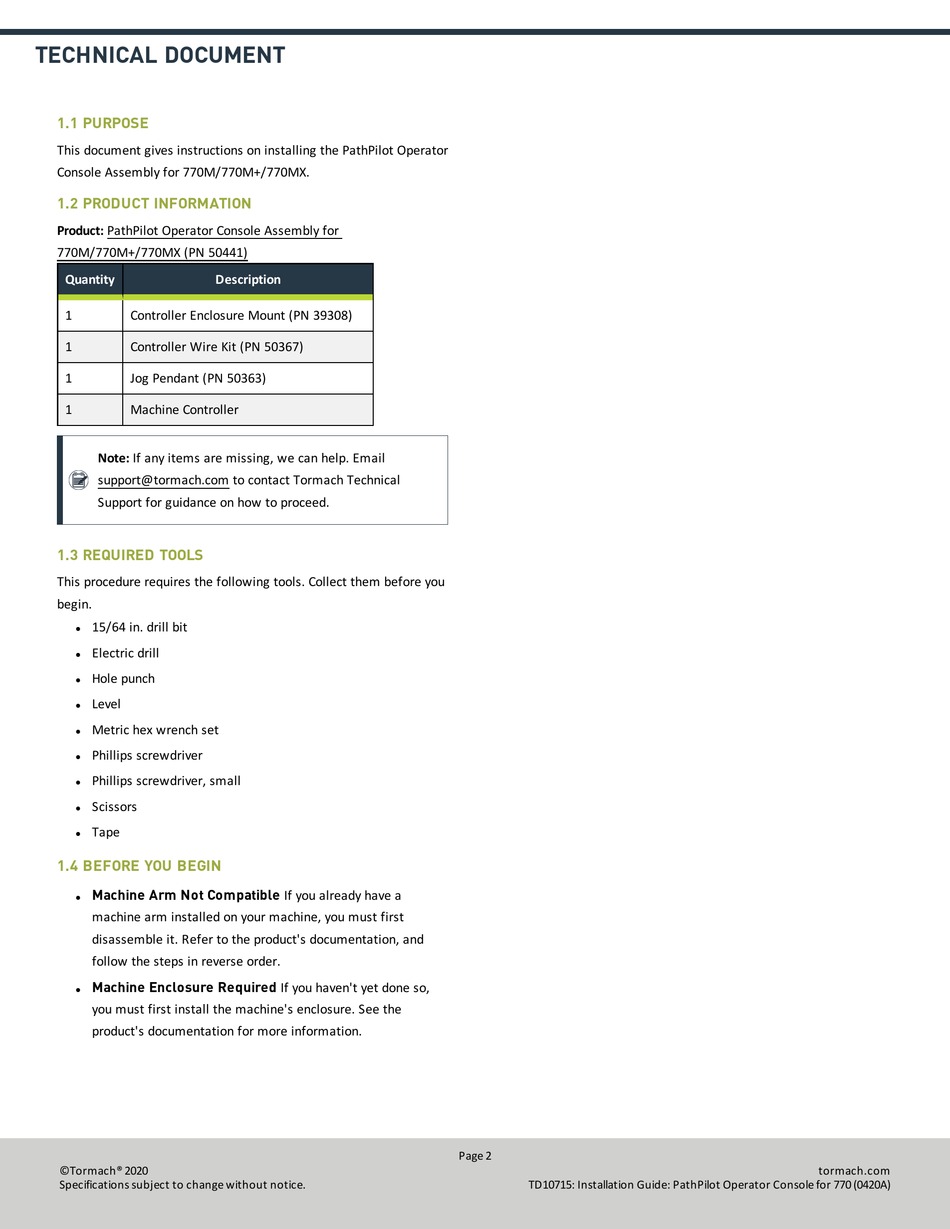

TECHNICAL DOCUMENT
1.1 PURPOSE
This document gives instructions on installing the PathPilot Operator
Console Assembly for 770M/770M+/770MX.

1.2 PRODUCT INFORMATION

Product: PathPilot Operator Console Assembly for
770M/770M+/770MX (PN 50441)
Quantity
1 Controller Enclosure Mount (PN 39308)
1 Controller Wire Kit (PN 50367)
1 Jog Pendant (PN 50363)
1 Machine Controller
Note: If any items are missing, we can help. Email
support@tormach.com to contact Tormach Technical
Support for guidance on how to proceed.

1.3 REQUIRED TOOLS

This procedure requires the following tools. Collect them before you
begin.
15/64 in. drill bit
l
Electric drill
l
Hole punch
l
Level
l
Metric hex wrench set
l
Phillips screwdriver
l
Phillips screwdriver, small
l
Scissors
l
Tape
l

1.4 BEFORE YOU BEGIN

Machine Arm Not Compatible If you already have a
l
machine arm installed on your machine, you must first
disassemble it. Refer to the product's documentation, and
follow the steps in reverse order.
Machine Enclosure Required If you haven't yet done so,
l
you must first install the machine's enclosure. See the
product's documentation for more information.
