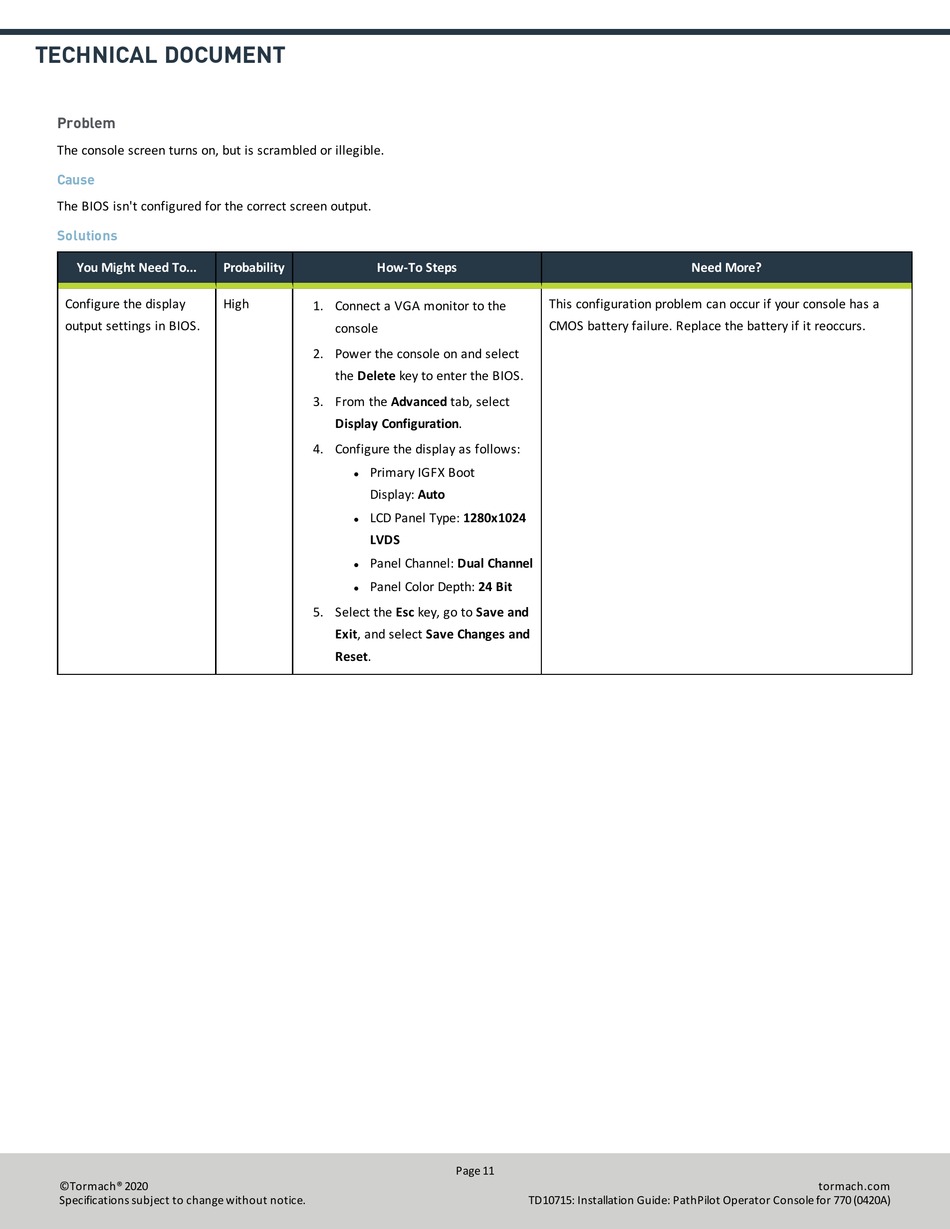

Tormach PATHPILOT OPERATOR CONSOLE Installation Manual page 11

TECHNICAL DOCUMENT
Problem
The console screen turns on, but is scrambled or illegible.
Cause
The BIOS isn't configured for the correct screen output.
Solutions
You Might Need To...
Configure the display
output settings in BIOS.
©Tormach® 2020
Specifications subject to change without notice.
Probability How-To Steps
High
1. Connect a VGA monitor to the
console
2. Power the console on and select
the Delete key to enter the BIOS.
3. From the Advanced tab, select
Display Configuration.
4. Configure the display as follows:
Primary IGFX Boot
l
Display: Auto
LCD Panel Type: 1280x1024
l
LVDS
Panel Channel: Dual Channel
l
Panel Color Depth: 24 Bit
l
5. Select the Esc key, go to Save and
Exit, and select Save Changes and
Reset.
This configuration problem can occur if your console has a
CMOS battery failure. Replace the battery if it reoccurs.
Page 11
TD10715: Installation Guide: PathPilot Operator Console for 770 (0420A)
