so we suggest attaching it 16 in. from the top of the
enclosure.

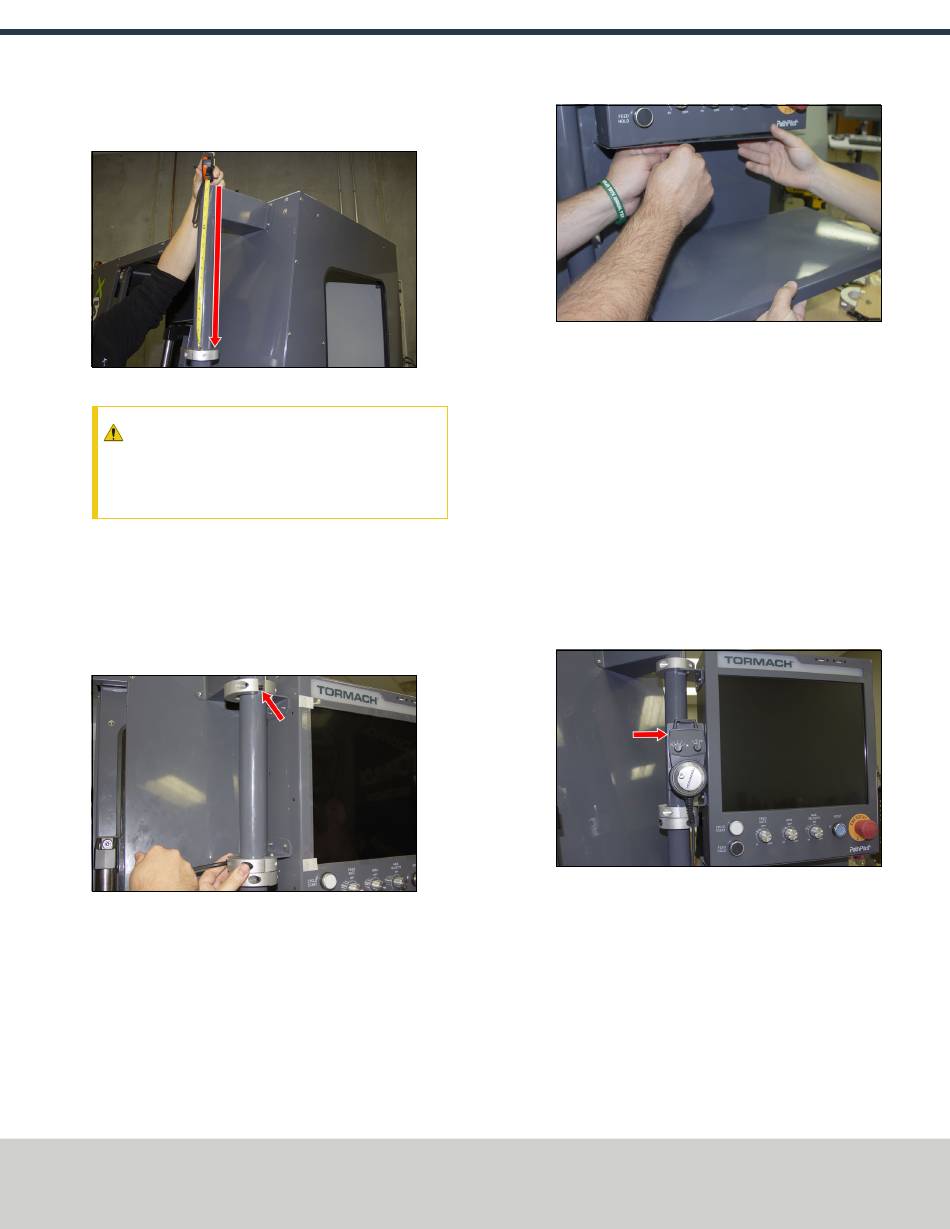

Figure 2-13: Split collar attached to the mount arm.
CAUTION! Team Lift Required: You must have the
aid of more than one person to lift and move the
object. The object is heavy, and lifting it by yourself
can cause serious injury.
2. Lift the console and hold it on the right side of the mount arm.
3. Align the bottom split collar on the controller with the split
collar that you installed on the mount arm in Step 1.
4. With the aid of another person, loosely attach the opposite
side of both split collars to the mount arm using a 6 mm hex
wrench.
Figure 2-14: Loosely attaching the split collars to the mount
arm.
5. Find the keyboard tray that you set aside earlier. Then, attach
it to the bottom of the controller, as shown in the following
image.
©Tormach® 2020
Specifications subject to change without notice.
Figure 2-15: Attaching the keyboard tray to the bottom of
the controller.
6. Loosely attach the opposite side of the split collar to the
mounting arm using a 6 mm hex wrench.
7. Adjust the height and the angle of the console assembly as
required.
8. Securely tighten all four split collars using a 6 mm hex
wrench. Securely tighten all mount arm brackets using a 2.5
mm hex wrench.

2.4 MAKE ELECTRICAL CONNECTIONS

1. Find the provided Jog Pendant (PN 50363).
2. Hang the jog pendant on its bracket (on the front of the
controller) as shown in the following image.
Figure 2-16: Jog pendant on the front of the console
assembly.
3. Route the loose end of the jog pendant to the back of the
controller.
4. Find the provided power supply bracket. Then, attach it to the
back of the controller with two M3 screws using a 2.5 mm hex
wrench.
