9. Using a level, align the bottom of the mount arm with the
bottom of the enclosure.

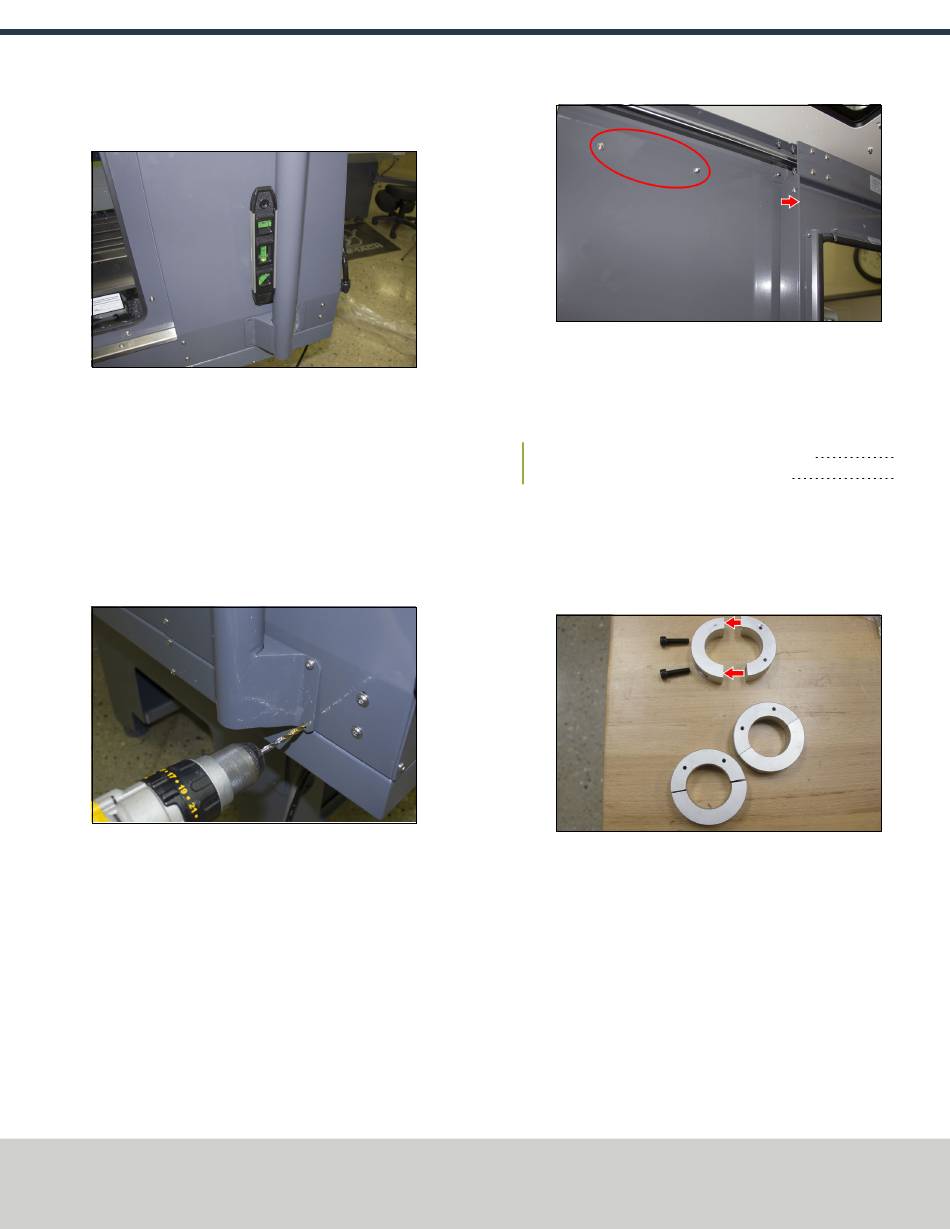

Figure 2-4: Bottom of the mount arm level on the
enclosure.
10. Using the bottom of the mount arm as a template, drill one
hole using an electric drill and a 15/64 in. drill bit.
11. Put one M6 screw, one washer, and one nut into the hole that
you drilled in Step 10 using an M3 hex wrench.
The mount arm is now secure enough to reliably drill the
remaining three holes.
12. Drill the remaining three holes for the mount arm's bottom
bracket.
Figure 2-5: Drilling the remaining three holes into the
enclosure.
13. Put three M6 screws, three washers, and three nuts into the
remaining three holes using an M3 hex wrench.
14. Once the mount arm is secured to the enclosure, open the
enclosure door and verify that the mount arm's screws don't
interfere with the enclosure door jamb. If they do, loosen the
screws on the door jamb, and slide it toward the back of the
machine.
©Tormach® 2020
Specifications subject to change without notice.
Figure 2-6: Door jamb moved to provide clearance for the
mount arm's screws.
2.3 MOUNT THE CONSOLE
Complete the following steps in the order listed:
2.3.1 Assemble the Controller and Keyboard Tray
2.3.2 Lift and Secure the Controller Assembly
2.3.1 Assemble the Controller and Keyboard Tray
1. Find the three provided split collars. If they're connected,
remove their bolts using a 6 mm hex wrench, and separate
them. The split collars are matched pairs, so you must keep
them together.
Figure 2-7: One split collar disassembled.
2. Find the four provided pieces of plastic with adhesive backing.
Cut each piece of plastic so that it's the length of the inside of
the split collar.
Page 4
TD10715: Installation Guide: PathPilot Operator Console for 770 (0420A)
