3. Adhere one piece of plastic to the inside of each split collar.

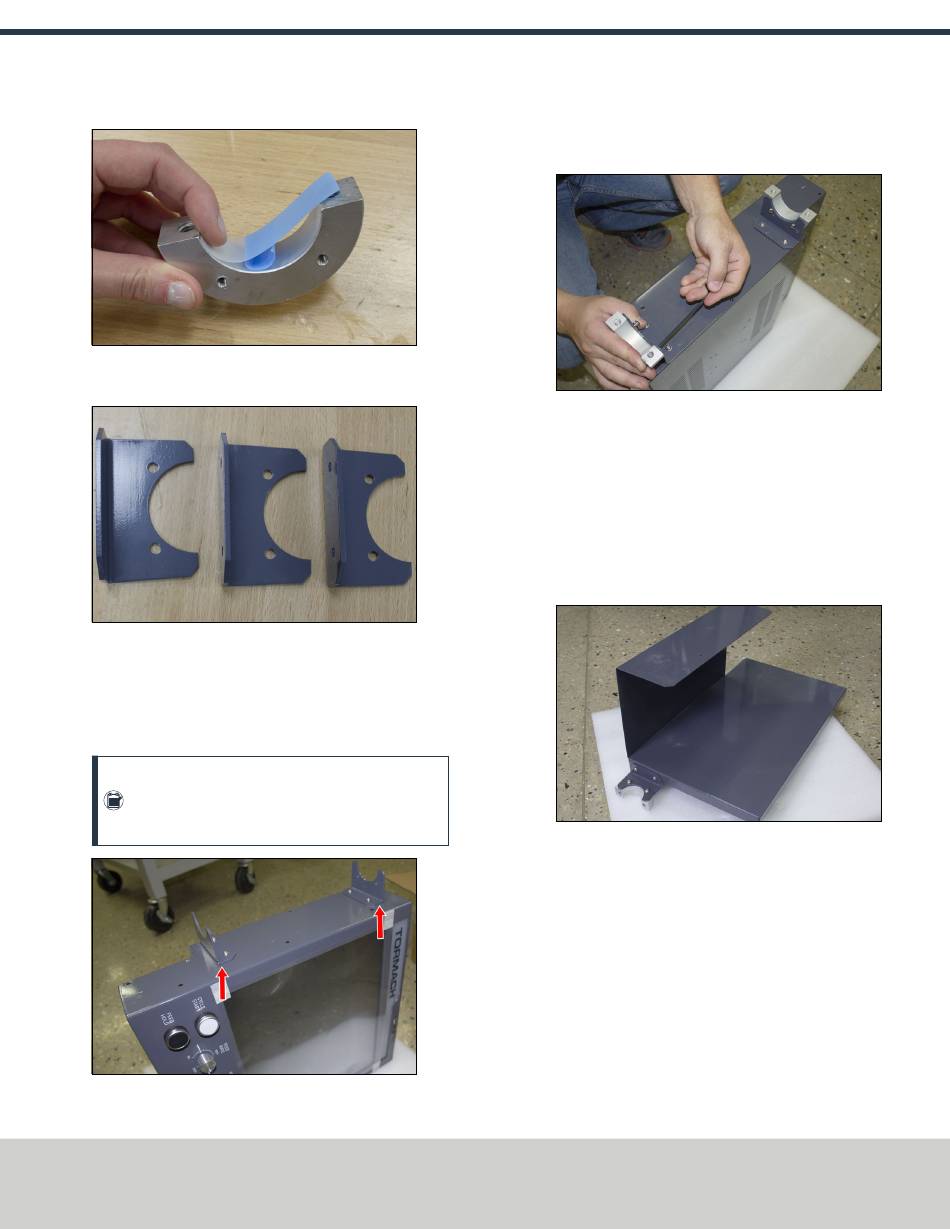

Figure 2-8: Adhering tape on the inside of a split collar.
4. Find the three provided mount arm brackets.
Figure 2-9: Mount arm brackets.
5. Loosely attach two of the mount arm brackets to the left side
of the controller with four M4 screws using a 2.5 mm hex
wrench, as shown in the following image. Verify that the
curved edge is facing away from the controller.
Note: Don't completely tighten the brackets to the
controller. You'll adjust them when you're adjusting
the height of the entire console assembly.
Figure 2-10: Two mount brackets attached to the
controller.
©Tormach® 2020
Specifications subject to change without notice.
6. Attach one side of two split collars to the mount arm brackets
with four M6 screws and four washers using a 3 mm hex
wrench.
Figure 2-11: Split collars attached to the mount arm
brackets on the controller.
7. Find the keyboard tray provided. Then, attach the remaining
mount arm bracket to the left side of the keyboard tray with
two M4 screws using a 2.5 mm hex wrench. Verify that the
curved edge is facing away from the keyboard tray.
8. Attach one side of one split collar to the mount arm bracket
with two M6 screws, two washers, and two nuts using a 3
mm hex wrench.
Figure 2-12: Split collar attached to the mount arm bracket
on the keyboard tray.
9. Find the provided jog pendant bracket. Then, attach it to the
left side of the controller (between the two mount arm
brackets) with two M4 screws using a 2.5 mm hex wrench.
10. Set the keyboard tray aside.
2.3.2 Lift and Secure the Controller Assembly
1. Attach the remaining split collar to the mount arm, and
completely tighten it using a 6 mm hex wrench. This split
collar determines the height for the overall console assembly,
