Tormach 50440 Installation Manual

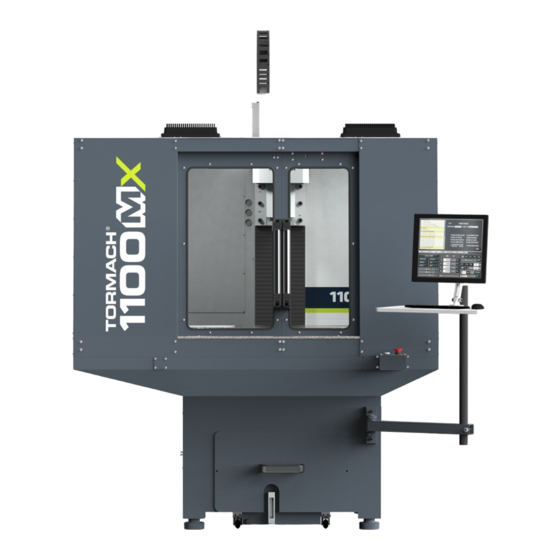

Pathpilot operator console assembly for 1100m/1100m+/1100mx
Hide thumbs

Advertisement

Quick Links

Download this manual
TECHNICAL DOCUMENT
Version 0321A
INSTALLATION GUIDE
PATHPILOT OPERATOR CONSOLE ASSEMBLY
FOR 1100M/1100M+/1100MX
Page 1
Specifications subject to change without notice.
©Tormach® 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tormach 50440

Summary of Contents for Tormach 50440

  • Page 1 TECHNICAL DOCUMENT Version 0321A INSTALLATION GUIDE PATHPILOT OPERATOR CONSOLE ASSEMBLY FOR 1100M/1100M+/1100MX Page 1 Specifications subject to change without notice. ©Tormach® 2021...

  • Page 2: Technical Document

    TECHNICAL DOCUMENT PURPOSE This document gives instructions on installing the PathPilot Operator Console Assembly for 1100M/1100M+/1100MX. PRODUCT INFORMATION Product: PathPilot Operator Console Assembly for 1100M/1100M+/1100MX (PN 50440) Quantity Description Controller Enclosure Mount (PN 39308) Controller Wire Kit (PN 50367) Jog Pendant (PN 50363) Machine Controller Note: If any items are missing, we can help.

  • Page 3: Prepare The Machine

    4. Put the drill template on the mount arm's top bracket. Then, verify that the holes on the bracket align with the holes on the drill template. If they don't, trace the correct hole pattern on to the drill template. Page 3 ©Tormach® 2021 tormach.com Specifications subject to change without notice.
  • Page 4 8. Drill into the marks on the enclosure that you made in Step 6 using an electric drill and a 15/64 in. drill bit. Figure 2: Drilling holes into the top of the enclosure. Page 4 ©Tormach® 2021 tormach.com Specifications subject to change without notice.
  • Page 5 11. Using the bottom of the mount arm as a template, drill one hole using an electric drill and a 15/64 in. drill bit. Page 5 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 6 Figure 5: Drilling the remaining three holes into the enclosure. 14. Put three M6 screws, three washers, and three nuts into the remaining three holes using an M3 hex wrench. Page 6 ©Tormach® 2021 tormach.com Specifications subject to change without notice.
  • Page 7 1. Find the three provided split collars. If they're connected, remove their bolts using a 6 mm hex wrench, and separate them. The split collars are matched pairs, so you must keep them together. Page 7 ©Tormach® 2021 tormach.com Specifications subject to change without notice.
  • Page 8 3. Adhere one piece of plastic to the inside of each split collar. Figure 8: Adhering tape on the inside of a split collar. Page 8 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 9 Note: Don't completely tighten the brackets to the controller. You'll adjust them when you're adjusting the height of the entire console assembly. Figure 10: Two mount brackets attached to the controller. Page 9 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 10 3 mm hex wrench. Figure 12: Split collar attached to the mount arm bracket on the keyboard tray. Page 10 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 11 3. Align the bottom split collar on the controller with the split collar that you installed on the mount arm in Step 1. Page 11 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 12 6. Loosely attach the opposite side of the split collar to the mounting arm using a 6 mm hex wrench. 7. Adjust the height and the angle of the console assembly as required. Page 12 ©Tormach® 2021 tormach.com Specifications subject to change without notice.

  • Page 13: Make Electrical Connections

    4. Find the provided power supply bracket. Then, attach it to the back of the controller with two M3 screws using a 2.5 mm hex wrench. Page 13 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 14 Figure 18: Rubber attached to the bracket on the keyboard tray. 9. Put the loose ends of all cables from the controller into the corrugated tubing. Page 14 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 15 12. Remove the access panel using a 2 mm hex wrench, and discard the panel. Set the screws aside for later in this procedure. Page 15 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 16 Figure 22: Access panel attached to the machine stand. 15. Route the loose end of all cords through the machine stand and out toward the rear of the machine. Page 16 ©Tormach® 2021 tormach.com Specifications subject to change without notice.
  • Page 17 19. From the ATC, remove and discard the existing USB cable. Then, route the loose end of the ATC USB cable from the controller to the ATC, and connect it in place of the original USB cable. Page 17 ©Tormach® 2021 tormach.com Specifications subject to change without notice.
  • Page 18 Press the Reset button on the operator box. d. Bring the machine out of reset and reference it. Page 18 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)

  • Page 19: Troubleshooting

    1 and 2047, but 1000 is generally a shop space with very high or sufficient for most shop spaces. low humidity. Page 19 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 20 Examine the green ring around power the power button. It should light button up when you press the power functionality. button. Page 20 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 21 Panel Color Depth: 24 5. Select the Esc key, go to Save and Exit, and select Save Changes and Reset. Page 21 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 22 (PN 39146). going from the header control on the computer board. motherboard to connector J12 on the control board. Page 22 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 23 (PN 39146). motherboard to connector J12 on board. the control board. Page 23 ©Tormach® 2021 tormach.com Specifications subject to change without notice. TD10596: Installation Guide: PathPilot Operator Console for 1100 (0321A)
  • Page 24 39146 Control Board Override Knobs RGB LED E-Stop Passthrough 39379 Reset Emergency Stop PN 39376 Override Knobs GND1 REVISION Tormach, Inc Machine Schematic 1071 Uniek Dr. 2/20/2019 pdenhartog Waunakee, WI 53597 SCHEME REV. DATE NAME CHANGES User data 1 User data 2...
