5. Find the provided power, Ethernet, emergency stop extension,
and ATC USB cables, and the WiFi dongle. Then, connect them
– and the jog pendant cable – to the controller as shown in
the following image.

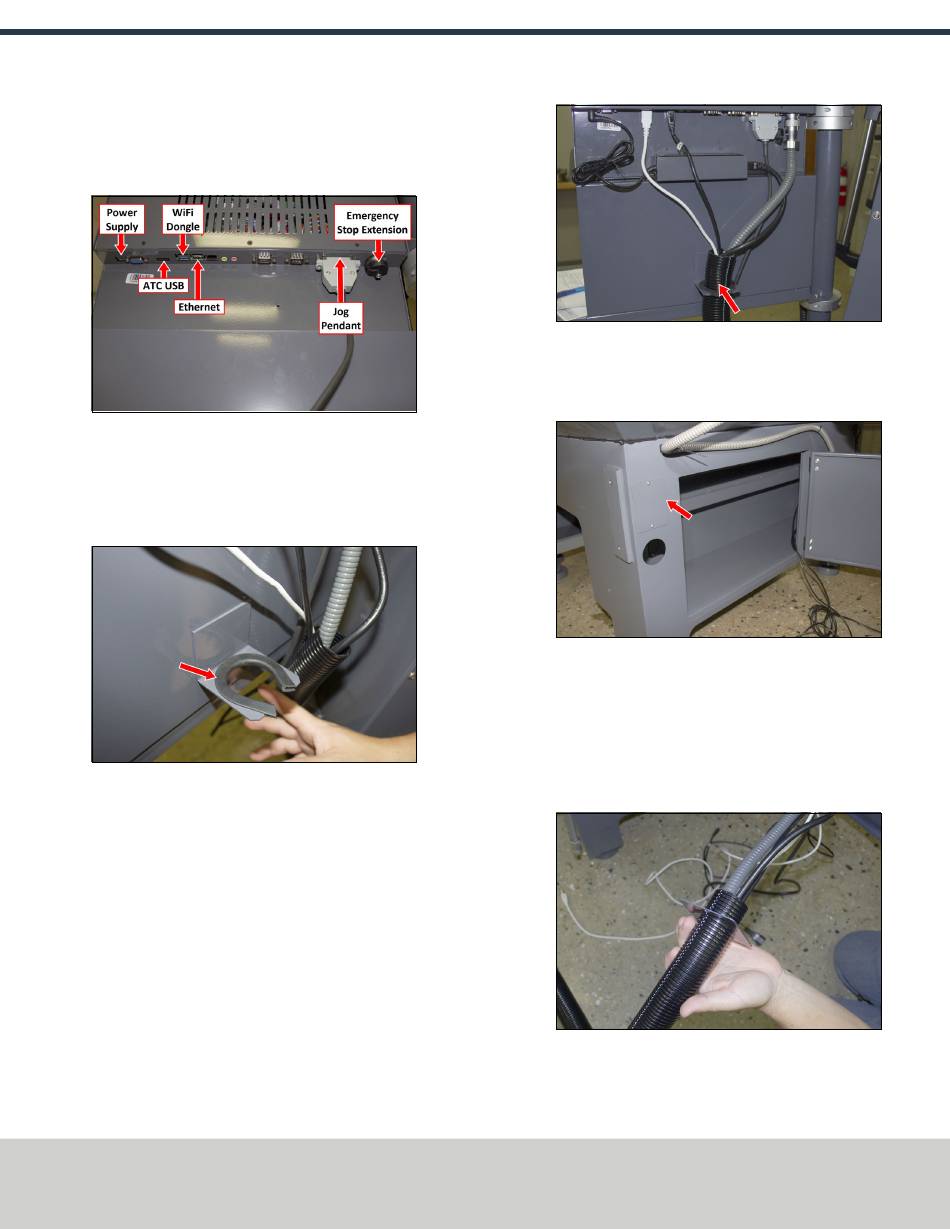

Figure 2-17: Controller connections.
6. Put the power supply into the power supply bracket.
7. Find the provided corrugated tubing and piece of rubber.
8. Attach the piece of rubber to the bracket on the rear of the
keyboard tray as shown in the following image.
Figure 2-18: Rubber attached to the bracket on the
keyboard tray.
9. Put the loose ends of all cables from the controller into the
corrugated tubing.
10. Push the corrugated tubing into the bracket on the rear of the
keyboard tray.
©Tormach® 2020
Specifications subject to change without notice.
Figure 2-19: Cords put into corrugated tubing, which is
attached to the rear of the keyboard tray.
11. Find the access panel on the machine stand as shown in the
following image.
Figure 2-20: Access panel on the machine stand.
12. Remove the access panel using a 2 mm hex wrench, and
discard the panel. Set the screws aside for later in this
procedure.
13. Find the provided access panel. Then, put the loose end of the
corrugated tubing and all cords through it as shown in the
following image.
Figure 2-21: Loose end of corrugated tubing and all cords
put through the access panel.
Page 7
TD10715: Installation Guide: PathPilot Operator Console for 770 (0420A)
tormach.com
