- Page 1 MANUAL ENGLISH EventLITE 4/10 Q4 Set 6x Ordercode: 44061 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
EventLITE 4/10 Q4 Set 6x Table of contents Warning ....................................3 Safety Instructions ................................ 3 Operating Determinations ............................5 Rigging ................................... 5 Connection with the mains ............................6 Return Procedure ................................. 7 Claims ..................................... 7 Description of the device ..............................8 Overview (EventLITE 4/10 Q4) ............................ - Page 3 EventLITE 4/10 Q4 Set 6x 2. Built-in Color Programs ............................32 3. Fade Mode ................................32 4. DMX Address/DMX Channel Mode .........................33 5. Economy ................................33 DMX Channels ................................33 4 Channels ................................33 6 Channels ................................33 9 Channels ................................34 Maintenance ..................................35 Replacing the Fuse (charging case)........................35 Troubleshooting ................................36...
-
Page 4: Warning
EventLITE 4/10 Q4 Set 6x Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. - Page 5 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
EventLITE 4/10 Q4 Set 6x ● This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. ● Repairs, servicing and electrical connection must be carried out by a qualified technician. ● WARRANTY: Till one year after date of purchase. -
Page 7: Connection With The Mains
EventLITE 4/10 Q4 Set 6x The EventLITE can be placed on a flat stage floor or mounted to any kind of truss with a clamp. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. -
Page 8: Return Procedure
EventLITE 4/10 Q4 Set 6x Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device
EventLITE 4/10 Q4 Set 6x Description of the device Features The EventLITE 4/10 Q4 Set 6x consists of 6 LED-equipped wireless EventLITEs 4/10 Q4 spots, a charging case and 2 remote controls. EventLITE 4/10 Q4 ● Wireless DMX by Wireless Solutions Sweden ●... -
Page 10: Overview (Eventlite 4/10 Q4)

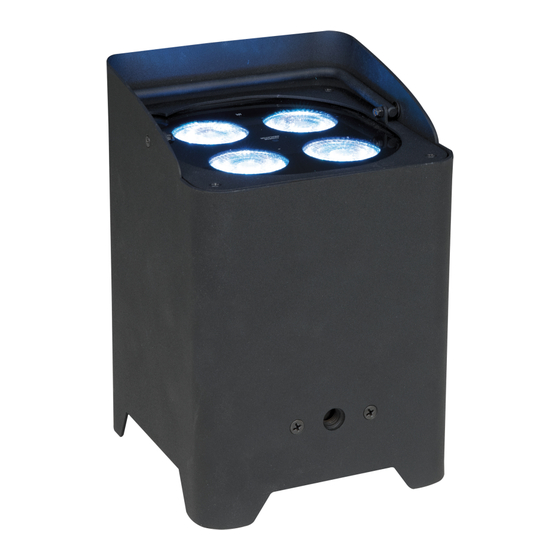

EventLITE 4/10 Q4 Set 6x Overview (EventLITE 4/10 Q4) Fig. 01 01) Wireless DMX receiving antenna 02) IR remote sensor 03) 4 x 10W RGBW LEDs 04) Mounting hole for truss clamp (M10) 05) Charging indicator Bottom (EventLITE 4/10 Q4) Fig. -
Page 11: Overview (Charging Case)
EventLITE 4/10 Q4 Set 6x Overview (Charging case) Fig. 03 14) Carrying handle 15) Wheel 16) Lock 17) Pro power connector (Blue) IN 18) Ground/earth connection 19) Pro power connector (Gray) OUT 20) Fuse F10AL/250V 21) IEC cable (20 cm) -
Page 12: Installation
EventLITE 4/10 Q4 Set 6x Installation Remove all packing materials from the EventLITE 4/10 Q4 Set. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 13: Control Modes
EventLITE 4/10 Q4 Set 6x Fig. 05 Important! ● Charge only with the charging case open. If it is closed, the safety switch (24) will deactivate the charging case. ● When charging, keep the device at least 1 meter from flames or any other heat source. -
Page 14: One Eventlite (Built-In Programs)
EventLITE 4/10 Q4 Set 6x One EventLITE (Built-in programs) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 15: Multiple Eventlites (Wireless Master/Slave Control)
EventLITE 4/10 Q4 Set 6x Multiple EventLITEs (Wireless Master/Slave control) 01) Install multiple EventLITEs at the desired positions (maximum Wi-Fi distance: 250 m). 02) Unlock W-DMX on all EventLITEs (see page 24 for more information). 03) Make sure all the EventLITEs are in “slave” mode. -
Page 16: Multiple Eventlites (Dmx Control)
EventLITE 4/10 Q4 Set 6x Multiple EventLITEs (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). Use a 3-pin XLR cable to connect the EventLITEs and other devices. -
Page 17: Multiple Eventlites (Wireless Dmx Control)
EventLITE 4/10 Q4 Set 6x Multiple EventLITEs (Wireless DMX Control) 01) Install multiple EventLITEs at the desired positions (maximum Wi-Fi distance: 250 m). 02) Make sure the EventLITEs are in “slave” mode. 03) In order for the EventLITEs to receive a wireless DMX signal properly, in main menu, press the UP/DOWN buttons to select 1: DMX and press the ENTER button to enter the submenu. -
Page 18: Connect The Eventlite To The Wireless Dmx Signal Transmitter
EventLITE 4/10 Q4 Set 6x Sweden 2.4GHz Wireless communication module Communication distance: Depending on the transmitting power or transmitter module Test conditions: W-DMX TRx Transmitter module, 2 dBi Antenna, transmitting power 20 dBm (100 mW) Range indoor: 60 m (approx. through three concrete walls) -
Page 19: Fixture Linking
EventLITE 4/10 Q4 Set 6x Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 20: Control Panel
EventLITE 4/10 Q4 Set 6x The EventLITE 4/10 Q4 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) OLED display MENU button C) ENTER button D) UP button DOWN button Fig. -
Page 21: Menu Overview
EventLITE 4/10 Q4 Set 6x Menu Overview Ordercode: 44061... - Page 22 EventLITE 4/10 Q4 Set 6x Ordercode: 44061...
-
Page 23: Main Menu Options
EventLITE 4/10 Q4 Set 6x At start-up, the EventLITE will show the currently selected DMX channel mode, the DMX starting address, the battery status and the current temperature. Main Menu Options 01) Press the ENTER button to open the main menu. The display will show: 02) Press the UP/DOWN buttons to select the desired menu. -
Page 24: Address
EventLITE 4/10 Q4 Set 6x 1.1. Address In this menu you can set the desired DMX starting address. 01) Press the UP/DOWN buttons to set the desired DMX address. The adjustment range is between 001– 512. 02) Press the ENTER button to confirm your choice. -
Page 25: W-Dmx Unlock
EventLITE 4/10 Q4 Set 6x 1.4. W-DMX Unlock In this menu you can activate/deactivate W-DMX. 01) The display will show: 02) Press the UP/DOWN buttons to select ON or OFF. ● Select ON in order to activate W-DMX. ● Select OFF in order to deactivate W-DMX. -
Page 26: Auto
EventLITE 4/10 Q4 Set 6x 3. Auto In this menu you can activate the auto program. 01) In main menu, press the UP/DOWN buttons until the display shows AUTO. 02) Press the ENTER button to open the menu. The display will show:... -
Page 27: Master/Slave Mode
EventLITE 4/10 Q4 Set 6x 5. Master/Slave Mode In this menu you can set the device as a master or a slave. 01) In main menu, press the UP/DOWN buttons to choose SLAVE. 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to choose YES or NO. -
Page 28: Curves Select
EventLITE 4/10 Q4 Set 6x 6.1. Curves Select In this menu you can set the dimming curves. 01) Press the UP/DOWN buttons to choose one of the 3 dimming curves. 02) Press the ENTER button to confirm your choice. 6.2. Dimmer Speed In this menu you can set the dimmer speed. -
Page 29: Economy
EventLITE 4/10 Q4 Set 6x 6.3. Economy In this menu you can set the device’s energy-saving mode. 01) Press the UP/DOWN buttons to choose ON or OFF. 02) If you have chosen ON, the EventLITE will operate at 80 % of its efficiency (economical mode). -
Page 30: Lock
EventLITE 4/10 Q4 Set 6x 6.6. IR In this menu you can activate the remote control. 01) Press the UP/DOWN buttons to choose ON or OFF. 02) If you have choose ON, you can use the remote control to operate the device. -
Page 31: Information
EventLITE 4/10 Q4 Set 6x 7. Information In this menu you can view the device’s current software version, temperature, total lifetime, operation mode and the device’s UID number. 01) While in main menu, press the UP/DOWN buttons to choose INFORMATION. -
Page 32: Remote Control
EventLITE 4/10 Q4 Set 6x Remote Control Button Function Description On / Off Press to switch the light output ON/OFF. Press to increase the value. Down Press to decrease the value. Auto Press to activate Auto mode. Not functional Built-in color... -
Page 33: Auto Mode
EventLITE 4/10 Q4 Set 6x Not functional Orange Press to activate the Orange LED. Cyan Press to activate the Cyan LED. Pink Press to activate the Pink LED. 01) Press the button to set the device as a master (the display will read MASTER) or a slave (the display will read SLAVE). -
Page 34: Dmx Address/Dmx Channel Mode
EventLITE 4/10 Q4 Set 6x 4. DMX Address/DMX Channel Mode 01) Press the button to set the desired DMX starting address. The display will read ADDRESS. 02) Press the buttons to set the desired DMX address. The adjustment range is between 001–512. -
Page 35: Channels
EventLITE 4/10 Q4 Set 6x Channel 5 – Blue Dimmer intensity CH1 must be open 0–255 Gradual adjustment Blue, from dark to brightest Channel 6 – White Dimmer intensity CH1 must be open 0–255 Gradual adjustment White, from dark to brightest 9 Channels Channel 1 –... -
Page 36: Maintenance
EventLITE 4/10 Q4 Set 6x 189–195 Color 27 (R255, G000, B025, W050) 196–202 Color 28 (R255, G000, B025, W025) 203–209 Color 29 (R255, G000, B025, W000) 210–216 Color 30 (R000, G000, B000, W255) 217–223 Color 31 (R075, G075, B000, W255) 224–230... -
Page 37: Troubleshooting
01) Battery. Check if the battery is fully charged. 02) The LEDs. Return the EventLITE to your Showtec dealer. 03) The internal fuse. Return the EventLITE to your Showtec dealer. 04) The fuse. Replace the fuse on the charging case. See page 35 for replacing the fuse. -
Page 38: Product Specifications
EventLITE 4/10 Q4 Set 6x Product Specifications EventLITE 4/10 Q4 Light source: 4 x 10W RGBW LEDs Security: Kensington lock eye Input voltage: 100–240 V AC, 50/60 Hz Battery type: Lithium-ion Battery storage: 4,16 Ah Operating time at Full On:... -
Page 39: Dimensions
EventLITE 4/10 Q4 Set 6x Dimensions Ordercode: 44061... - Page 40 ©2020 Showtec...
