EventLITE 4/10 Q4 Set 6x

1.4. W-DMX Unlock

In this menu you can activate/deactivate W-DMX.

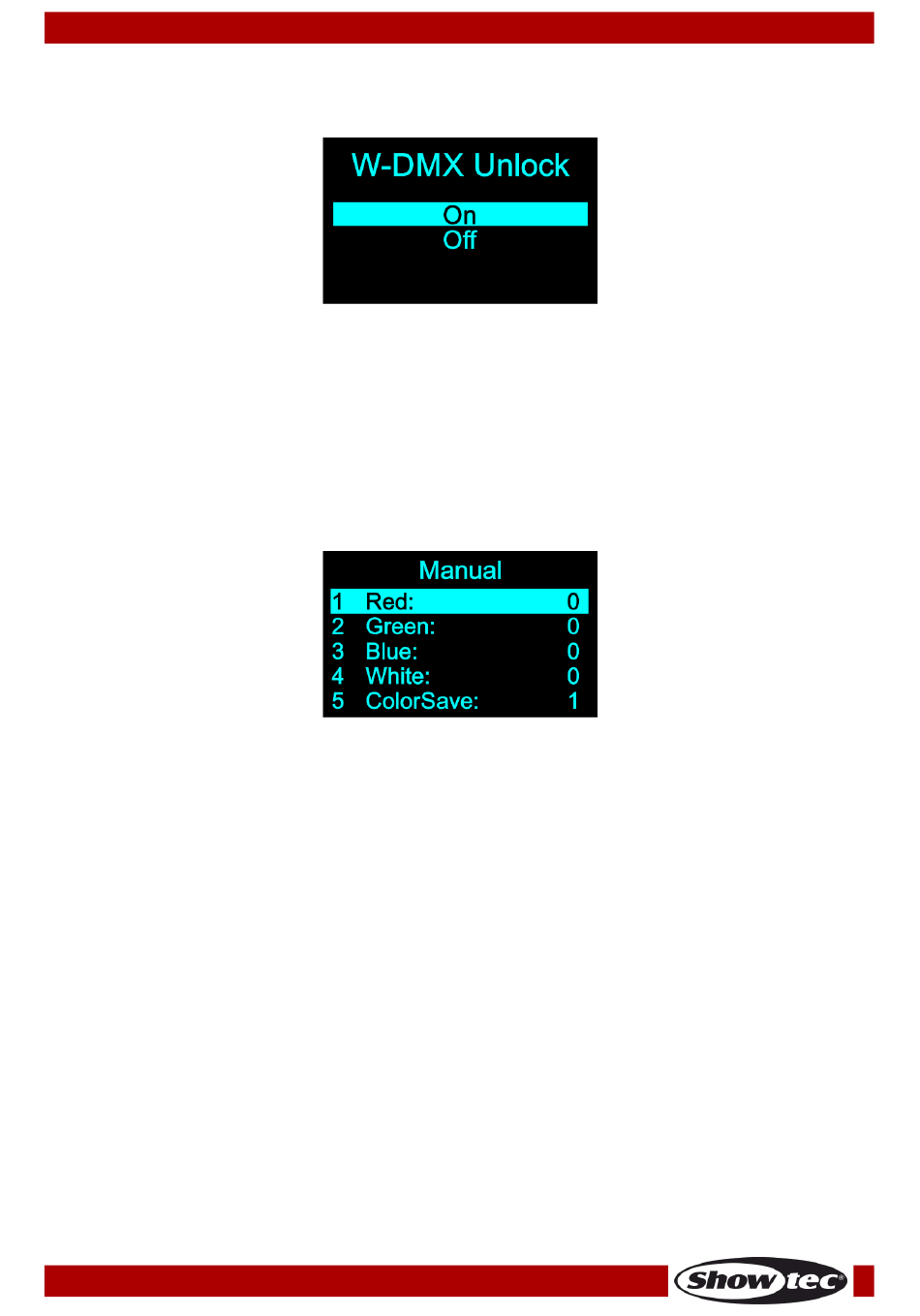

01) The display will show:

02) Press the UP/DOWN buttons to select ON or OFF.

●

Select ON in order to activate W-DMX.

●

Select OFF in order to deactivate W-DMX.

03) Press the ENTER button to confirm your choice.

In this menu you can set the static colors and store them.

01) In main menu, press the UP/DOWN buttons until the display shows MANUAL.

02) Press the ENTER button to open the menu. The display will show:

03)

Press the UP/DOWN buttons to select one of the 4 colors: Red, Green, Blue or White.

04)

Press the ENTER button to open the submenu.

05)

Press the UP/DOWN buttons to set the intensity of the LEDs. The adjustment range for each color is

between 0–255, from dark to brightest.

06)

Press the ENTER button to save your settings.

07) You can combine Red, Green, Blue and White to create an infinite range of colors (0–255).

In this menu, it is possible to save a previously created static color.

01) Press the UP/DOWN buttons to select COLORSAVE and press the ENTER button to open the menu.

02) Press the UP/DOWN buttons to select the slot in which you want to save your current static color.

There are 5 slots to choose from.

03) Press the ENTER button to confirm your choice. The display will read SAVE OK and your static color

will be saved.

Ordercode: 44061
