- Page 1 MANUAL ENGLISH Compact Power Lightset 4 RGBW V1 Ordercode: 30277 Highlit e I nt ernat ional B.V. – Ves t as t raat 2 – 6468 EX – K erkrade – t he Net herlands...
-
Page 2: Table Of Contents
One Compact Power Lightset 4 RGBW (Sound-control) ................8 One Compact Power Lightset 4 RGBW (Manual control) ................8 One Compact Power Lightset 4 RGBW (Auto Run, Built -in programs)............8 Multiple Compact Power Lightsets 4 RGBW (Master/Slave control)............. 8 Multiple Compact Power Lightsets 4 RGBW (DMX512 Mode).............. -
Page 3: Warning
Compact Power Lightset 4 RGBW Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any part s appear to be damaged from shipping or the carton itself shows signs of mishandling. - Page 4 For replacement, use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Compact Power Lightset 4 RGBW. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the Compact Power Lightset 4 RGBW, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Compact Power Lightset 4 RGBW can be placed on a flat stage floor or mounted to any kind of truss by a clamp. -
Page 6: Return Procedure
Compact Power Lightset 4 RGBW Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

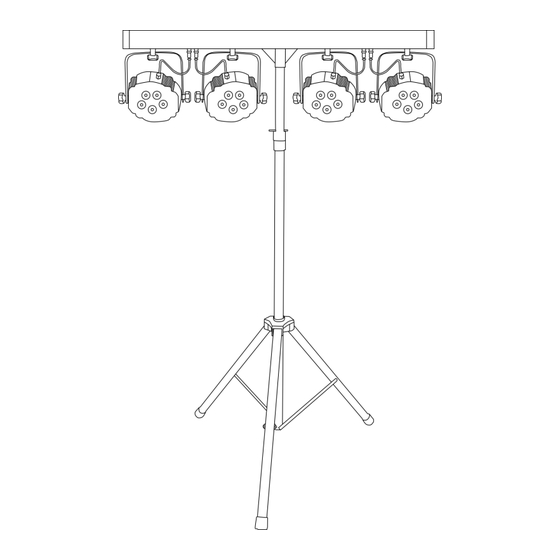

Features The Showtec Compact Power Lightset 4 RGBW is a T-bar with 4 LED spots on a light stand, packed in a hard case and a carrying bag for the stand. It is a plug and play set that offers internal chase programs but also can be controlled by DMX or with the optional available footswitch. -
Page 8: Backside
09) IEC Power Out (10a) Installation Remove all packing materials from the Compact Power Lightset 4 RGBW. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: One Compact Power Lightset 4 Rgbw (Sound-Control)
04) Please see page 13 for more information about the Manual control mode. One Compact Power Lightset 4 RGBW (Auto Run, Built-in programs) 01) Fasten the effect light onto firm trussing or place it on the floor. Leave at least 0,5 meter on all sides for air circulation. -
Page 10: Multiple Compact Power Lightsets 4 Rgbw (Dmx512 Mode)
Compact Power Lightset 4 RGBW Multiple Compact Power Lightsets 4 RGBW (DMX512 Mode) 01) Fasten the effect light onto firm trussing or place it on the floor. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Fixture Linking
Compact Power Lightset 4 RGBW Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX -512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixt ures the data link can support. -
Page 12: Control Panel
Compact Power Lightset 4 RGBW should be 1(001); the DMX address of the second Compact Power Lightset 4 RGBW should be 1+19=20 (020); the DMX address of the third Compact Power Lightset 4 RGBW should be 20+19=39 (039), etc. Please, be sure that you do not have any overlapping channels in order to control each Compact Power Lightset 4 RGBW correctly. -
Page 13: Menu Overview
Compact Power Lightset 4 RGBW Menu overview Ordercode: 30277... -
Page 14: Main Menu Options
Compact Power Lightset 4 RGBW Main Menu Options 1. DMX mode 2. Built in programs 3. Auto run 4. Info 5. Settings 6. Sound-controlled mode 7. Manual mode (Static color mode) 8. Slave mode 1. DMX Mode With this menu you can set the DMX address and choose a DMX configuration. -
Page 15: Auto Run Program
08) Use the Up/Down buttons to set the speed between 001-100 and strobe frequency between 000-099. 3. Auto Run Program With this menu you can activate the Auto run mode of the Compact Power Lightset 4 RGBW. 01) Press the Mode button on the device until the display shows 02) The Compact Power Lightset 4 RGBW will start automatically with its built-in program. -
Page 16: Sound Control Mode
Compact Power Lightset 4 RGBW 06) With the menu option , you can set the dimmer speed, by pressing the Up/Down buttons. You can choose between Smooth or Fast. 07) In the menu you can set how long the display will remain ON, when no button is pressed. -
Page 17: Manual Mode (Static Color Mode)
Compact Power Lightset 4 RGBW 7. Manual Mode (Static color mode) With this menu you can create a static color. 01) Press the Mode button until the display shows 02) Press the Setup button to open the menu. 03) With the Setup button you can scroll through the colors Red, Green, Blue and White. -
Page 18: Dmx Channels
Compact Power Lightset 4 RGBW DMX Channels 4 channels Channel 1 – Red Dimmer intensity 0-255 Gradual adjustment Red from 0-100% Channel 2 – Green Dimmer intensity 0-255 Gradual adjustment Green from 0-100% Channel 3 – Blue Dimmer intensity 0-255 Gradual adjustment Blue from 0-100% Channel 4 –... - Page 19 Compact Power Lightset 4 RGBW 210-216 Color 30 (R000, G000, B000, W255) 217-223 Color 31 (R075, G075, B000, W255) 224-230 Color 32 (R000, G000, B100, W255) 231-255 Color 33 (R255, G255, B255, W255) Channel 4 – Color running (CH1 must be set must between 001-255...
-
Page 20: Channels
Compact Power Lightset 4 RGBW 6 channels Channel 1 – Master Dimmer 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Linear Strobe (CH1 must be set between 001-255 0-10 11-255 Linear strobe intensity, from low to high frequency Channel 3 –... -
Page 21: Channels
Compact Power Lightset 4 RGBW 8 channels Channel 1 – Red color intensity 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green color intensity 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue color intensity 0-255 Gradual adjustment Blue from 0 –... -
Page 22: Channels
Compact Power Lightset 4 RGBW 10 channels Channel 1 – Master Dimmer 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Linear Strobe (CH1 must be set between 001-255 0-10 11-255 Linear strobe intensity, from low to high frequency Channel 3 –... - Page 23 Compact Power Lightset 4 RGBW 46-55 Program 05 56-65 Program 06 66-75 Program 07 76-85 Program 08 86-95 Program 09 96-105 Program 10 106-115 Program 11 116-125 Program 12 126-135 Program 13 136-145 Program 14 146-155 Program 15 156-165 Program 16...
-
Page 24: Channels
Compact Power Lightset 4 RGBW 16 channels Channel 1 – Red color intensity 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green color intensity 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue color intensity 0-255 Gradual adjustment Blue from 0 –... - Page 25 Compact Power Lightset 4 RGBW Channel 10 – Green color intensity 0-255 Gradual adjustment Green from 0 – 100% Channel 11 – Blue color intensity 0-255 Gradual adjustment Blue from 0 – 100% Channel 12 – White color intensity 0-255 Gradual adjustment White from 0 –...
-
Page 26: Channels
Compact Power Lightset 4 RGBW 19 channels Channel 1 – Master Dimmer 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Linear Strobe (CH1 must be set between 001-255 0-10 11-255 Linear strobe intensity, from low to high frequency Channel 3 –... - Page 27 Compact Power Lightset 4 RGBW Channel 11 – White color intensity 0-255 Gradual adjustment White from 0 – 100% Channel 12 – Red color intensity 0-255 Gradual adjustment Red from 0 – 100% Channel 13 – Green color intensity 0-255 Gradual adjustment Green from 0 –...
-
Page 28: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Showtec Compact Power Lightset 4 RGBW requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light -output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. -
Page 29: No Response To Dmx
Compact Power Lightset 4 RGBW No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit ; change the DMX cable; then reconnect to electrical power. -
Page 30: Product Specifications
Compact Power Lightset 4 RGBW Product Specifications Model: Showtec Compact Power Lightset 4 RGBW Input Voltage: 100-240V AC, 50/60Hz Drive current: 330mA Refresh rate: 7,8 Khz Consumption Power 90 Watt DMX linking: 30pcs Fuse: 5S1.5A / 250V Dimensions T-bar + 4 parcans:... -
Page 31: Dimensions
