- Page 1 Tracker 300 ORDERCODE 41381...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Tracker 300 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Tracker 300 Product Guide ™ Warning.................…...……………..…………………………..…………….……………. Safety-instructions…………………………………………………………………………………………………………………….. Operating Determinations.…………………………………………………………………………………………………………. Rigging.…………………………………………………………………………………………………………………………………. Return Procedure…………………………………………………………………………………………........Claims……………………………………………………………………………................Description................…...………………………………………….……………………….. Features and Overview ………………………………...….……………….………….……….……….…………………….……. Backside…………………………………………………...…...….……………….…………………...…………………….……….. Installation................…...…………………………………………………………..……..… Set Up and Operation..............……..…………………………………………………………... Control Modes…………………………………………………………………………………………………….……..……………. One Tracker (Built-in Programs)…..………………………………………….……………….…………..…..……………… One Tracker (Sound Control)………………………………………………………..…………………….……..………….. Multiple Trackers (Master/Slave control).……………………………………………….……………..…………………... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Tracker 300 with powercable 1,75m • Quick-lock brackets and M10 nuts • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description

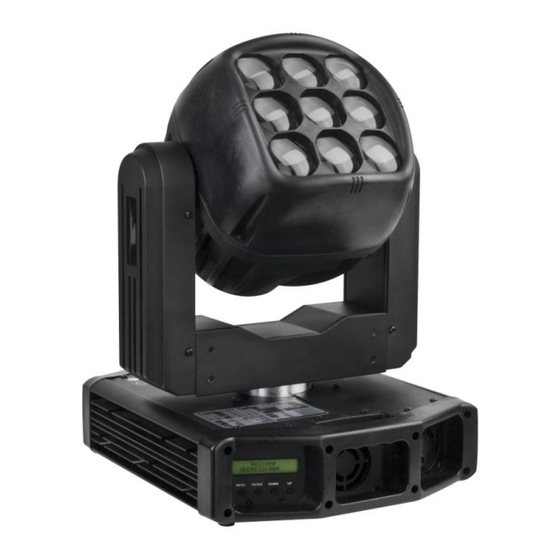

Description of the device Features The Showtec Tracker 300 is a moving-head with high output and great effects. • Low power consumption • Less heat • Auto Correction system for pan and tilt movement • 9 LED's total (6W / 1400mA each) •... -
Page 9: Backside
Backside Fig. 2 IEC power connector + Fuse 4A 250V On/Off DMX signal connector (OUT) 3-pin DMX signal connector (IN) 3-pin Installation Remove all packing materials from the Tracker 300. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Multiple Trackers (Master/Slave Control)
Multiple Tracker (Master/Slave control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the Tracker. The pins: Earth Signal - Signal + 3. -
Page 11: Fixture Linking
4. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. 5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other end of the mains power cord into proper electric power supply sockets, starting with the first unit. -
Page 12: Control Panel
The Tracker 300 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Panel Fig. 5 A. LCD Display D. Down Button B. MENU button E. Up Button C. ENTER Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Menu Overview... -
Page 14: Main Menu Options
Main Menu Options 1. Intro DMX Addressing With this menu you can set the DMX address. 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Address menu. 3) Press enter to open this menu. You can choose 512 different DMX addresses. Use the Up / Down buttons to select the required address from 000 - 512. -
Page 15: Built-In Programs Mode
Built-in Programs Mode With this menu you can select 4 different Programs when using the Tracker. 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Operation menu. 3) Press enter to open this menu. Scroll through the menu until the display shows Auto_1, Auto_2, Sound_1 or Sound_2. -
Page 16: Display Mode
Display Mode 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Display menu. 3) Press enter to open this menu. You can choose 60_close or Bright mode. Use the Up / Down buttons to select one. 4) Once you have set the desired mode, press the enter button to store your setting. -
Page 17: Special
4. Special 1) Press Menu, until the display shows: Special 2) Press Enter and use the Up/Down buttons to choose: Black or Reset. 3) Press enter to open this menu. Use the Up / Down buttons to set the desired setting. 4) Once you have set the desired mode, press the enter button to store your setting. -
Page 18: Channels (Advanced)
DMX Protocol 30 Channels (Advanced ) Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 530° and stopped at any position you wish. –... -
Page 19: Dmx Channels
54-59 60-65 66-71 72-77 78-83 84-89 90-95 96-101 102-107 108-113 114-119 120-125 126-131 132-137 138-143 144-149 150-155 156-161 162-167 168-173 174-179 180-185 186-191 192-197 198-203 204-209 210-215 216-221 222-227 228-233 234-239 240-255 Channel 10 – Channel Functions When you have entered one of the functions between 20-39, you must first disable this function, before the device will operate normally. - Page 20 180-199 No Function 200-219 Reset (activated after 3 seconds) 220-255 No Function Channel 11 – Chase Open / White 10-19 Chase 1 20-29 Chase 2 30-39 Chase 3 40-49 Chase 4 50-59 Chase 5 60-69 Chase 6 70-79 Chase 7 80-89 Chase 8 90-99...
- Page 21 Channel 19 – Dimmer intensity LED 4 0-255 From black to brightest Channel 20 – Strobe (Dimmer LED 4 must be open 0-255 Shutter open Channel 21 – Dimmer intensity LED 5 0-255 From black to brightest Channel 22 – Strobe (Dimmer LED 5 must be open 0-255 Shutter open Channel 23 –...
-
Page 22: Channels (Pixel)
DMX Protocol 21 Channels (Pixels ) Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 530° and stopped at any position you wish. –... - Page 23 54-59 60-65 66-71 72-77 78-83 84-89 90-95 96-101 102-107 108-113 114-119 120-125 126-131 132-137 138-143 144-149 150-155 156-161 162-167 168-173 174-179 180-185 186-191 192-197 198-203 204-209 210-215 216-221 222-227 228-233 234-239 240-255 Channel 10 – Channel Functions When you have entered one of the functions between 20-39, you must first disable this function, before the device will operate normally.
- Page 24 200-219 Reset (activated after 3 seconds) 220-255 No Function Channel 11 – Chase Open / White 10-19 Chase 1 20-29 Chase 2 30-39 Chase 3 40-49 Chase 4 50-59 Chase 5 60-69 Chase 6 70-79 Chase 7 80-89 Chase 8 90-99 Chase 9 100-109...
-
Page 25: Channels (Basic)
Channel 21 – Dimmer intensity LED 9 0-255 From black to brightest DMX Protocol 10 Channels (Basic) Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 530°... - Page 26 54-59 60-65 66-71 72-77 78-83 84-89 90-95 96-101 102-107 108-113 114-119 120-125 126-131 132-137 138-143 144-149 150-155 156-161 162-167 168-173 174-179 180-185 186-191 192-197 198-203 204-209 210-215 216-221 222-227 228-233 234-239 240-255 Channel 8 – Channel Functions When you have entered one of the functions between 20-39, you must first disable this function, before the device will operate normally.
- Page 27 180-199 No Function 200-219 Reset (activated after 3 seconds) 220-255 No Function Channel 9 – Chase Open / White 10-19 Chase 1 20-29 Chase 2 30-39 Chase 3 40-49 Chase 4 50-59 Chase 5 60-69 Chase 6 70-79 Chase 7 80-89 Chase 8 90-99...
-
Page 28: Channel Settings
Channel settings Fig. 6 Beam Angle Fig. 7... -
Page 29: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Tracker 300 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. - Page 30 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 31: Product Specifications
Product Specification Model: Showtec Tracker 300 Voltage: 240V-50Hz (CE) Power Consumption: 100W Fuse: F3A / 250V Dimensions: 390x320x450mm (LxWxH) Weight: 17 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel...
