- Page 1 USER MANUAL ENGLISH Kanjo Scan 60 Product code: 45012 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Kanjo Scan 60 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Kanjo Scan 60 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Kanjo Scan 60 Troubleshooting ..............................27 Maintenance ..............................28 Safety Instructions for Maintenance ......................28 Preventive Maintenance ..........................28 Basic Cleaning Instructions ........................29 Corrective Maintenance ..........................29 Replacing the Fuse .............................29 Deinstallation, Transportation and Storage ....................30 Instructions for Deinstallation ..........................30 Instructions for Transportation ........................30 Storage ................................30...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Kanjo Scan 60 ● Schuko to IEC (C13) power cable ● User manual Fig. -
Page 6: Symbols And Signal Words
Kanjo Scan 60 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Kanjo Scan 60 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Kanjo Scan 60 WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling.
-
Page 9: Requirements For The User
Kanjo Scan 60 ● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation. -
Page 10: Description Of The Device

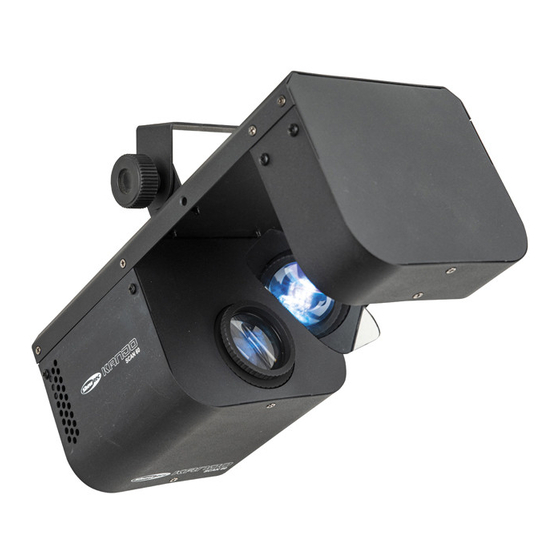

Description of the Device The Showtec Kanjo Scan 60 is a compact scanner, equipped with a bright 60-W LED source with a cool white color (7500 K). The scanner has 7 dynamic gobos and 7 vivid colors. The lightweight mirror with special coating guarantees fast movement and excellent projection. -
Page 11: Product Specifications
Kanjo Scan 60 Product Specifications Model: Kanjo Scan 60 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 85 W Fuse: F3AL, 250 V Physical: Dimensions: 335 x 204 x 165 mm (L x W x H) Weight: 3,54 kg... -
Page 12: Dimensions
Kanjo Scan 60 Dimensions Fig. 04 Fig. 05 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. -
Page 13: Installation Site Requirements
Kanjo Scan 60 Installation Site Requirements ● The device can be used only indoors. ● The device can be mounted to a truss or other rigging structure. ● The minimum distance to other objects must be bigger than 0,5 m. -
Page 14: Angle Adjustment
Kanjo Scan 60 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (03). 01) Turn the adjustment screws (03) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 07). -
Page 15: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 10 devices Kanjo Scan 60 ● at 200–240 V: 15 devices Kanjo Scan 60 Product code: 45012... -
Page 16: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Kanjo Scan 60 is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually, in auto mode or in sound-controlled mode. -
Page 17: Dmx Cables
Fig. 09. Fig. 09 Master/Slave Setup The Kanjo Scan 60 supports master/slave control mode. To connect multiple devices in a master/slave setup, follow the steps below: Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 18: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 10 to the previous number. Make sure that you do not have any overlapping channels in order to control each Kanjo Scan 60 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 19: Operation
Control Modes The Kanjo Scan 60 can be operated with a DMX controller, or without a DMX controller as a stand-alone device or in a master/slave setup. -
Page 20: Control Panel
Kanjo Scan 60 Control Panel A) LED display ENTER button C) UP button D) DOWN button MENU button Fig. 12 ● Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 21: Menu Overview
Kanjo Scan 60 Menu Overview Product code: 45012... -
Page 22: Main Menu Options
Kanjo Scan 60 Main Menu Options The main menu has the following options: DMX address Display LEDs XY Direction Display settings DMX channel mode Reset Master/Slave mode Manual control DMX channels Sound mode (see 6.7. Manual Control of the DMX Channels on page 24) Press the UP/DOWN buttons to navigate through the main menu. -
Page 23: Dmx Channel Mode
Kanjo Scan 60 DMX Channel Mode In this menu you can select the DMX channel mode. 01) Press the UP/DOWN buttons to select the desired DMX channel mode. There are 2 options available: 8 channels 10 channels 02) Press the ENTER button to confirm the selection. -
Page 24: Display Leds
Kanjo Scan 60 Display LEDs In this menu you can select whether the display LEDs will remain on or will turn off after 100 seconds of inactivity. 01) Press the UP/DOWN buttons to choose between the following 2 options: The LED display remains on... -
Page 25: Manual Control
Kanjo Scan 60 Manual Control In this menu you can enable manual control. 01) Press the UP/DOWN buttons to choose between the following 2 options: Enable manual control Off: Disable manual control 02) Press the ENTER button to confirm your choice. -
Page 26: Dmx Channels
Kanjo Scan 60 DMX Channels 8 CH 10 CH Function Value Setting 000–255 Horizontal mirror movement, 0–170° No function Pan Fine 001–255 Fine adjustment (16-bit) Tilt 000–255 Vertical mirror movement, 0–85° No function Tilt Fine 001–255 Fine adjustment (16-bit) Pan/Tilt Speed 000–255... -
Page 27: Gobo Wheel And Color Wheel
Kanjo Scan 60 Gobo Wheel and Color Wheel Static gobo wheel Color wheel Fig. 13 Product code: 45012... -
Page 28: Troubleshooting
Kanjo Scan 60 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 29: Maintenance
Kanjo Scan 60 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. -
Page 30: Basic Cleaning Instructions
Kanjo Scan 60 Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 31: Deinstallation, Transportation And Storage
Kanjo Scan 60 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 32 ©2020 Showtec...
