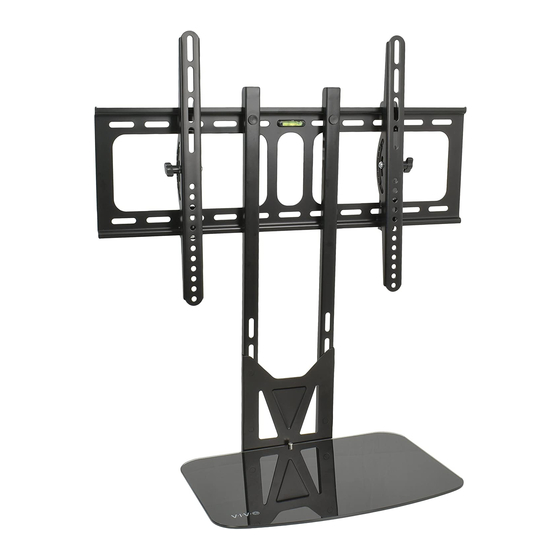

Vivo MOUNT-VW11 Mounting Instructions

MOUNTING INSTRUCTIONS
Model: MOUNT-VW11
Max. VESA 600X400
45kg/99lbs
TV
13.6kg/30lbs
DVD
32" - 70"(81-178cm)
For Help Please Contact Us:
Email: help@vivo-us.com
Live Chat: www.vivo-us.com
Phone: 1-800-371-5654
WARNING STATEMENTS
Warning
The wall structure must be capable of supporting at least a
maximum weight of 45kg (99lbs) for 32"-70" televisions.
Proper installation procedure by a qualified service
technician, as outlined in the installation instructions, must
be adhered to. Failure to properly mount this product may
result in serious personal injury and property damage.
Safety measures must be practiced at all times during the
installation of this product. Use proper safety gear and tools
for the installation procedure to prevent personal injury.
Prior to the installation of this product, the installation
instructions should be read and completely understood.
The installation instructions must be read to prevent
personal injury and property damage. Keep these
installation instructions in an easily accessible location for
future reference.
A secure structure must support the weight or load of the
display, When mounting to a wall that contains wooden
studs, dead center of the wooden stud must be confirmed
prior to installation.
Do not install on a structure that is prone to vibration,
movement or chance of impact. Failure to do so could
result in damage to the display and/or damage to the
mounting surface.
Do not install near heater, fireplace, direct sunlight, air
conditioning or any other source of direct heat energy.
Failure to do so may result in damage to the display and
could increase the risk of fire.
At least two qualified people should perform the
installation procedure. Injury and/or damage can result
from dropping or mishandling the display.
Recommended mounting surfaces: wooden studs and
solid-flat concrete. If the mount is to be installed on any
surface other than wooden studs, use suitable hardware
(which is commercially available).
TOOLS REQUIRED NOT INCLUDED
TOOLS REQUIRED NOT INCLUDED
A
C D
a
M4x12 (x4)
b
M5x12 (x4)
c
M6x12 (x4)
d
M8x16 (x4)
e
Φ18x6.5x1.5(x4)
f
Φ20x8x1(x6)
g
Φ10x50 (x6)
h
Φ12x6.5x1.5(x4)
i
? x1pcs
j
x4pc
B
E
F
M8x60 (x6)
M6x25(x2) M6(x4)
M5x12(x3) M6x35(x2) S=4mm xPCS
S=2.5mm xPCS
