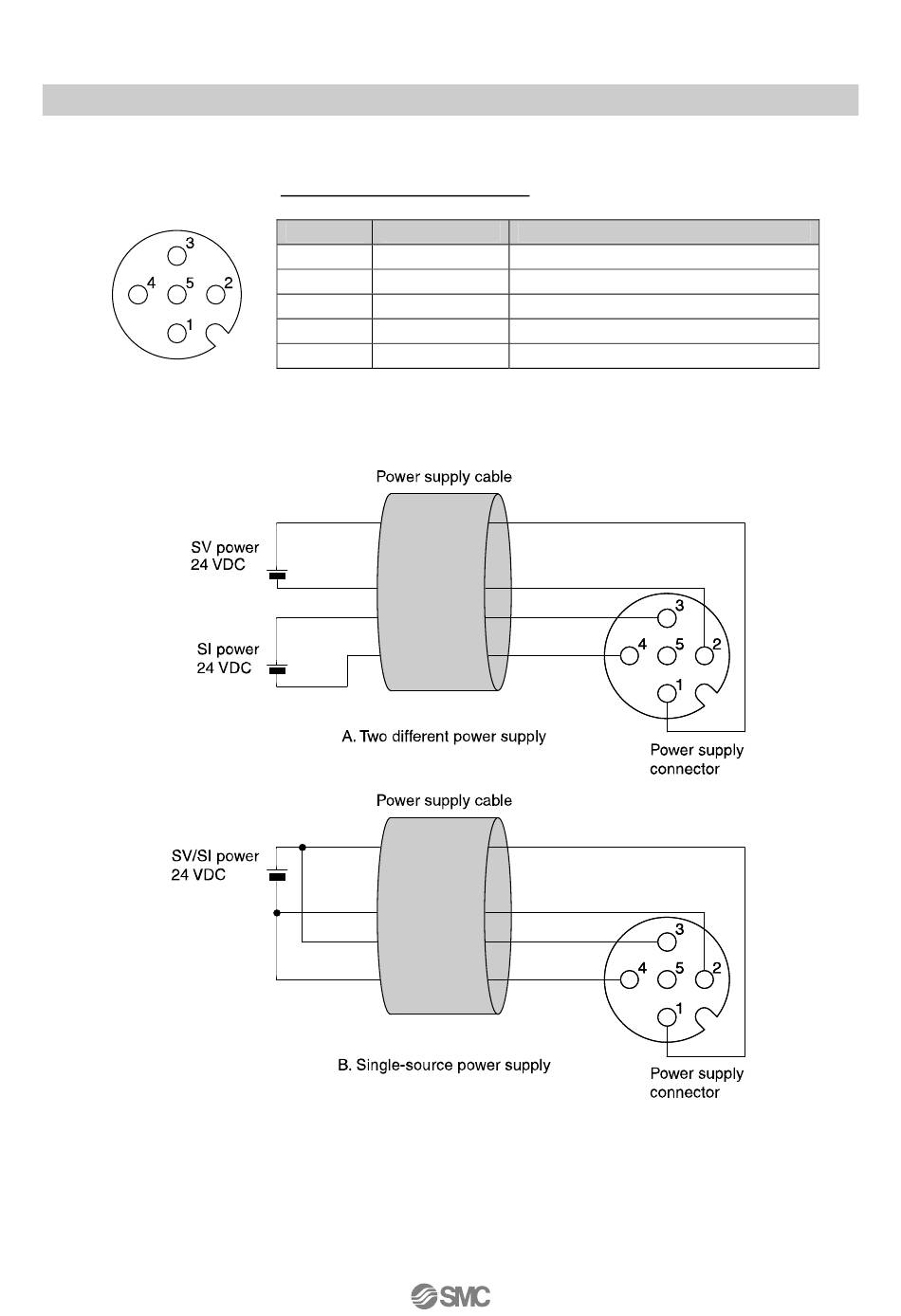

Power supply connector layout
Power-supply line for solenoid valve and power-supply line for SI unit operation are isolated.
Be sure to supply power, respectively.
Either single-source power or two different power can be used.
Note) Pay attention not to exceed the tolerance range of power supply voltage.
PWR: M12 5-pole Plug A-coded
No. Designation
1 SV24 V
2 SV0 V
3 SI24 V
4 SI0 V
5 -
-11-
Description
+24 V for solenoid valve
0 V for solenoid valve
+24 V for SI unit operation
0 V for SI unit operation
Unused
