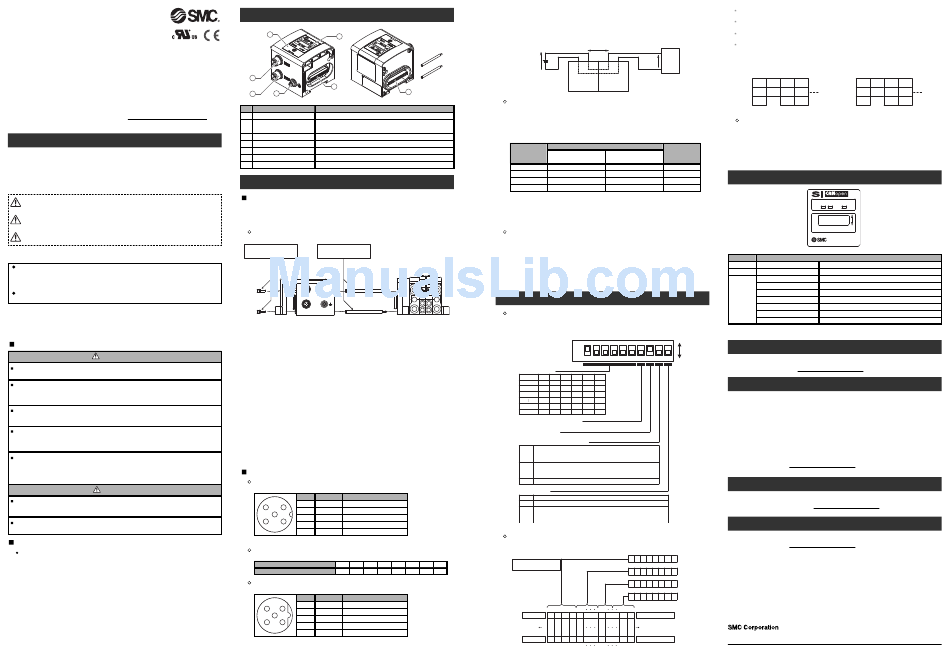

SMC Networks EX250 Series Operation Manual

Fieldbus device
Operation Manual
EX250 Series for CANopen
Thank you for purchasing an SMC EX250 Series Fieldbus device (Hereinafter
referred to as "SI unit" ).
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations.
Please keep this manual handy for future reference.
To obtain more detailed information about operating this product,
please refer to the SMC website (URL http://www.smcworld.com) or
contact SMC directly.
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or
equipment damage.
These instructions indicate the level of potential hazard with the labels of
"Caution", " Warning" or "Danger". They are all important notes for safety and
must be followed in addition to International standards (ISO/IEC) and other safety
regulations.
Caution: CAUTION indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
WARNING indicates a hazard with a medium level of risk
Warning:
which, if not avoided, could result in death or serious injury.
DANGER indicates a hazard with a high level of risk which, if
Danger:
not avoided, will result in death or serious injury.
Operator
This operation manual is intended for those who have knowledge of machinery
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenace of such equipment. Only those persons are allowed
to perform assembly, operation and maintenance.
Read and understand this operation manual carefully before assembling,
operating or providing maintenance to the product.
Safety Instructions
Warning
Do not disassemble, modify (including changing the printed circuit board) or repair.
An injury or failure can result.
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
Do not operate in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
This product is not designed to be explosion proof.
If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system.
•Check the product regularly for proper operation.
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance:
•Turn off the power supply.
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance.
Otherwise an injury can result.
Caution
After maintenance is complete, perform appropriate functional inspections.
Stop operation if the equipment does not function properly.
Safety cannot be assured in the case of unexpected malfunction.
Provide grounding to assure the safety and noise resistance of the Fieldbus system.
Individual grounding should be provided close to the product with a short cable.
NOTE
When conformity to UL is necessary the SI unit must be used with a UL1310
Class2 power supply.
Summary of Product elements
6
5
1
Tie-rod (2 pcs)
4
accessory
3
7
2
No. Description Function
1 Communication connector Connect with CANopen communication line.
Supplies power to the solenoid valve, the Output block, SI unit and the Input
2 Power supply connector
block.
3 Input block connector Connects the Input block.
4 Output block connector Connects the solenoid valve, Output block and etc.
5 Display LED display shows the SI unit status.
6 Switch protective cover Set node ID and Baud rate by using the switches under the cover.
7 FE Used for grounding.
Mounting and Installation
Installation
The SI unit does not have mounting holes, so it cannot be installed alone. Make sure to
connect the solenoid valve. When an input block is not required, connect the end plate
directly to the SI unit.
Assembly and disassembly of the SI unit
M3 hexagon screw Tie rod
Tightening torque: 0.6 Nm Tightening torque: 0.6 Nm
R
BUS
3
X
12
PWR
P
1 A
End plate SI unit Valve manifold
Exchange of SI unit
•Remove screws from End Plate and release connection of each unit.
•Replace old SI unit with new one. (Tie rod does not need to be removed.)
•Connect Input Block and End Plate and tighten removed screws by specified
tightening torque. (0.6 Nm)
Assembly and disconnection of unit
Addition of Input Block
•Remove screws from End Plate.
•Mount attached tie rod.
•Connect additional Input Block.
•Connect End Plate and tighten removed screws by specified tightening torque. (0.6 Nm)
Caution for maintenance
(1) Be sure to turn-off all power supplies.
(2) Be sure that there is no foreign object in any of units.
(3) Be sure that gasket is lined properly.
(4) Be sure that tightening torque is according to specification.
If these items are not kept, it may lead to the breakage of substrate or intrusion of
liquid or dust into the units.
Wiring
Communication wiring
•Communication connector M12 5 pins plug A-coded
No. Description Function
3 2
1 CAN_SHLD Shield
5
2 CAN_V+ Power supply + for CANopen
4 1
3 CAN_GND Power supply − for CANopen
4 CAN_H CAN_H bus line (dominant high)
5 CAN_L CAN_L bus line (dominant low)
Example of connection cable: M12 socket 5 pins cable with shield (according to ISO11898)
Communication wiring
Relation Baud rate and Bus length are as follows.
Baud rate (Communication speed) (bit/s) 1 M 800 k 500 k 250 k 125 k 50 k
Max. bus cable length (m) 25 50 100 250 500 1000 2000
Power supply wiring
•Power supply connector M12 5pins plug B-coded (reverse key type)
No. Description Function
3 2 1 SV24 V +24 V for solenoid valve.
5
2 SV0 V 0 V for solenoid valve
4 1 3 SW24 V +24 V for input block
4 SW0 V 0 V for input block
5 FE Function ground
Example of connection cable: EX9-AC050-1 etc.
SW power is supplied to the sensor connected to the input block. There is a voltage drop up
to maximum 1 V inside the SI unit when SW power is supplied. Select a sensor taking this
voltage drop into consideration. If 24 V must be supplied to the sensor, it is necessary to
increase the SW power supply voltage so that the input voltage of the sensor will be 24 V with
the actual load. (Allowable SW power supply range: 19.2 V to 28.8 V)
Voltage reduction of approx.1V
24 VDC
SI unit
Bus cable and termination resistors
The cables, connectors, and termination resistors used in CANopen networks shall
meet the requirements defined in ISO 11898. In addition, here are given some
guidelines for selecting cables and connectors.
The table below shows some standard values for DC parameters for CANopen
networks with less than 64 nodes.
Bus cable specification
Bus length [m]
Length-related resistance
[mΩ/m]
0 ... 40
<70
40 ... 300
<60
300 ... 600
<40
600 ... 1000
<26
For drop cables a wire cross-section of 0.25 to 0.34 mm
choice in many cases.
Besides the cable resistance, there should also be considered the real resistance of
the connectors, if calculating the voltage drop. The read resistance of one connector
should be in the range of 2.5 to 10 mΩ.
FE connection
Connect the ground terminal to the ground. Resistance to the ground should be 100 Ω
or less.
R
3 Setting
X
B B
12
P
Switch setting
A 1
Before setting of Node-ID by DIP switch, turn "OFF" power supply to the SI unit.
ON
1 2
Setting of Node-ID
Node-ID SW1 SW2 SW3 SW4 SW5 SW6
0 0 0 0 0 0 0
1 1 0 0 0 0 0
2 0 1 0 0 0 0
62 0 1 1 1 1 1
63 1 1 1 1 1 1
Set SW7 to 0. (SW7 is not used.)
Set SW8 to 1. (fixed)
Setting of output when stopped state
Output condition of solenoid valve when stopped state by an error
SW9 occurs (Error Control ,Emergency Object) or "Stop Remote Node"
command is received.
Output Value shall take the pre-defined condition specified in
0 Error Value Output Object (6207h,6307h,6327h)
Default: all outputs are cleared.
1 Output Value shall be kept.
Setting of mode
SW10 Mode
0 HW mode. Setting of Node-ID is achieved by DIP switches SW1-6.
SW mode. Setting of Node-ID is achived via network.
1 SW1-8 become unavailable. Node-ID can be set up to 127.
Default is 127 (7Fh).
Output No. assignment
Combinations of output data and valve manifold
0: Solenoid valve: OFF
20 k 10 k
1: Solenoid valve: ON
5000
Bit No. 0 2 4 6 0 0
Output No. 0 2 4 6 8 16
Side D
(SI unit side)
Output No. 1 3 5 7 9 17
Bit No. 1 3 5 7 1 1
Valve maifold
: Output numbers are assigned to stations from side D to U of manifold in order. (See manual of
each valve manifold for the directions of side D and U).
: Standard manifold is wired in double. Output numbers are assigned to side A and B alternatively.
In case of single solenoid valve, output on side B is free. (Refer to fig.a)
: Mixed (single and double) wiring is available as long as wiring specifications designate it. This
allows output numbers to be specified without having free output. (Refer to fig.b)
: Each bit of data sent from master (4 bytes) shows ON/OFF (0: OFF, 1: ON) of solenoid valve.
Starting from LSB of the first byte (Offset0), output numbers are assigned to all the bits in
numeric order.
23 VDC Sensor
fig.a
Double Single Double Double
Input block No. 0 2
Station 1 2
No. 1 3
Input No. assignment
The inputs of the Input block are assigned from the SI unit side Input block in the order
0,1,2...maximum of 31.
Termination
resistance [Ω]
Cross-section [mm 2 ]
0.25 ... 0.34
124
0.34 ... 0.6 150 ... 300
LED indication
0.5 ... 0.6 150 ... 300
0.75 ... 0.8 150 ... 300
2 would be an appropriate
LED
PWR(V) Green Light
PWR Green Light
Green Light
Green Light (blinking)
Green Light (single flash)
CAN Red Light (single flash)
Red Light (double flash)
Green / Red Light (flickering)
Red Light
Troubleshooting
1
0
3 4 5 6 7 8 9 10
Technical documentation giving detailed troubleshooting information can be found
on the SMC website (URL http://www.smcworld.com).
Specifications
Power for CANopen communication: 18 to 30 VDC, 0.1 A or less
Power for input block: 24 VDC ±20%, 1 A or less (Depending on number of connecting
Power for solenoid valve: 24 VDC +10%/-5%, 2 A or less
Connection load: Solenoid valve with protection circuit for 24 VDC and 1.5 W or less surge
voltage. (made by SMC)
Operating ambient temp: -10 to 50
Pollution degree: Pollution degree 3 (UL508)
Technical documentation giving detailed specification information can be found on
the SMC website (URL http://www.smcworld.com).
Outline Dimensions
Technical documentation giving detailed outline dimensions information can be
found on the SMC website (URL http://www.smcworld.com).
Accessories
Technical documentation giving detailed accessories information can be found on
the SMC website (URL http://www.smcworld.com).
Bit: 7 0
Byte
0 Offset
Bit: 7 0
Byte
1 Offset
Bit: 7 0
Byte
2 Offset
Bit: 7 0
Byte
3 Offset
4 6
28 30 Solenoid on side A
Side U
tkihabaraMUwXMdhy]Mg_dg_d]MSotokanda]Mvhiyoda_ku]MTokyoMdcd_cced]M±tPt−
PhonemM[kdMf_hecj_keglMMMyaxmM[kdMf_helk_hfie
29 31 Solenoid on side B
5 7
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
© 2011 SMC Corporation All Rights Reserved
fig.b
Double Single Double Double
4 6 Side A No. 0 2 3 5 Side A
3 4 Station 1 2 3 4
5 7 Side B No. 1 - 4 6 Side B
Open
PWR(V) PWR CAN
1
0
ADDRESS
EX250
Description
Illuminates when power for solenoid valves is supplied.
Illuminates when power for CANopen line is supplied.
Illuminates when SI unit is in the Operational state.
SI unit is in the Pre-Operational state.
Single flash when SI unit is in Stopped state.
Single flash when CAN controller error occurs.
Double flash when Error Control Event occurs.
Flickering when SI unit is in Configuration mode. (LSS services)
SI unit is in "Bus OFF" state.
sensors and specifications)
(Depending on number of solenoid valve station and
specifications)
o C Storage ambient temp: -20 to 60 o C
UR"Mhttpmbbwwwasmcworldacom
