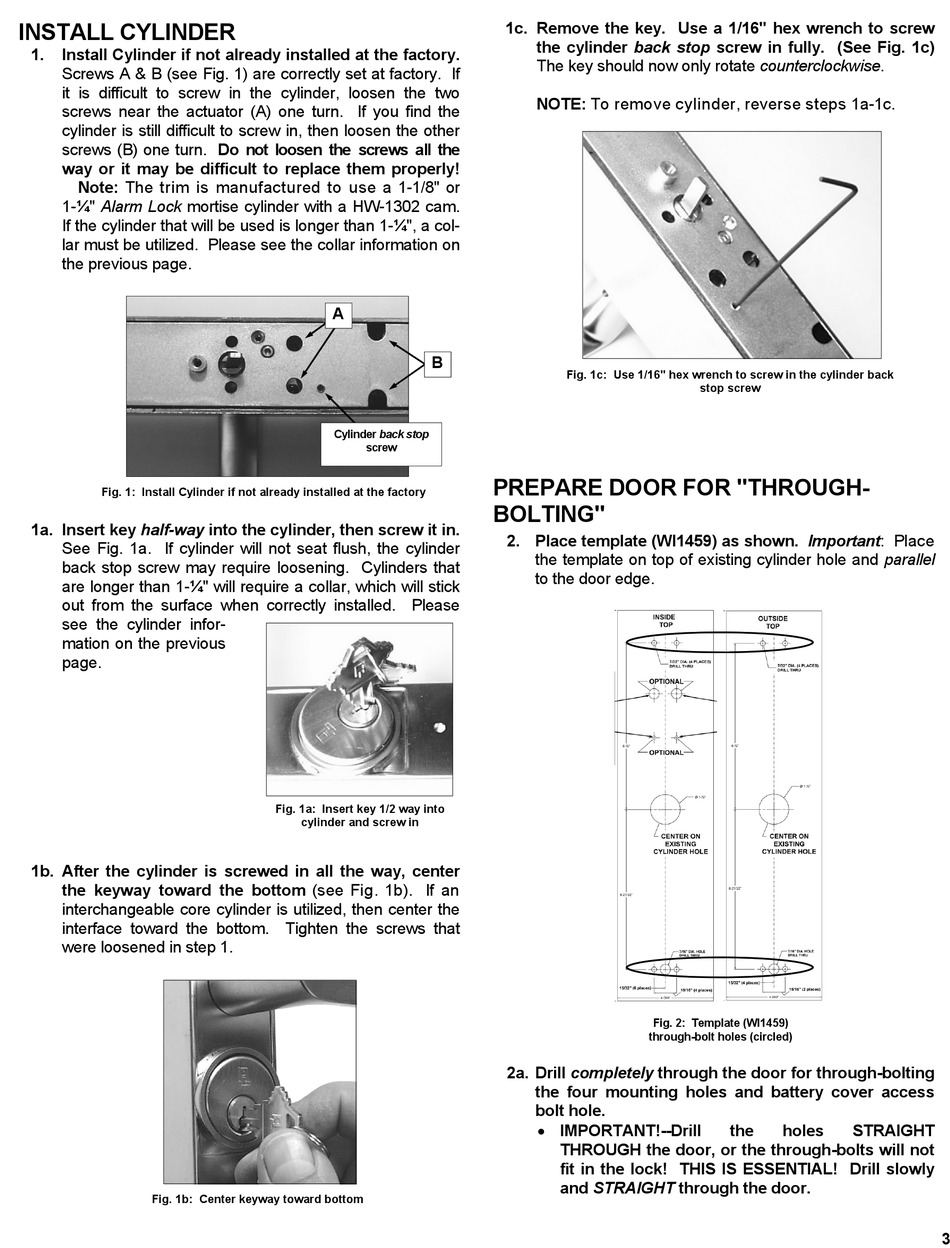

INSTALL CYLINDER

1. Install Cylinder if not already installed at the factory.
Screws A & B (see Fig. 1) are correctly set at factory. If
it is difficult to screw in the cylinder, loosen the two
screws near the actuator (A) one turn. If you find the
cylinder is still difficult to screw in, then loosen the other
screws (B) one turn. Do not loosen the screws all the
way or it may be difficult to replace them properly!
Note: The trim is manufactured to use a 1-1/8" or
1-¼" Alarm Lock mortise cylinder with a HW-1302 cam.
If the cylinder that will be used is longer than 1-¼", a col-
lar must be utilized. Please see the collar information on
the previous page.
Fig. 1: Install Cylinder if not already installed at the factory
1a. Insert key half-way into the cylinder, then screw it in.
See Fig. 1a. If cylinder will not seat flush, the cylinder
back stop screw may require loosening. Cylinders that
are longer than 1-¼" will require a collar, which will stick
out from the surface when correctly installed. Please
see the cylinder infor-
mation on the previous
page.
1b. After the cylinder is screwed in all the way, center
the keyway toward the bottom (see Fig. 1b). If an
interchangeable core cylinder is utilized, then center the
interface toward the bottom. Tighten the screws that
were loosened in step 1.
Fig. 1b: Center keyway toward bottom
A
B
Cylinder back stop
screw
Fig. 1a: Insert key 1/2 way into
cylinder and screw in
1c. Remove the key. Use a 1/16" hex wrench to screw
the cylinder back stop screw in fully. (See Fig. 1c)
The key should now only rotate counterclockwise.
NOTE: To remove cylinder, reverse steps 1a-1c.
Fig. 1c: Use 1/16" hex wrench to screw in the cylinder back
PREPARE DOOR FOR "THROUGH-
BOLTING"
2. Place template (WI1459) as shown. Important: Place
the template on top of existing cylinder hole and parallel
to the door edge.
Fig. 2: Template (WI1459)
through-bolt holes (circled)
2a. Drill completely through the door for through-bolting
the four mounting holes and battery cover access
bolt hole.
 IMPORTANT!--Drill
THROUGH the door, or the through-bolts will not
fit in the lock! THIS IS ESSENTIAL! Drill slowly
and STRAIGHT through the door.
stop screw
the holes STRAIGHT
3
