BZB Gear BZ-IP-100HD User Manual

Hdmi over ip extender with loop out, 100m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BZ-IP-100HD
HDMI over IP Extender with
Loop out (100M)

Advertisement

Table of Contents
loading

Related Manuals for BZB Gear BZ-IP-100HD

Summary of Contents for BZB Gear BZ-IP-100HD

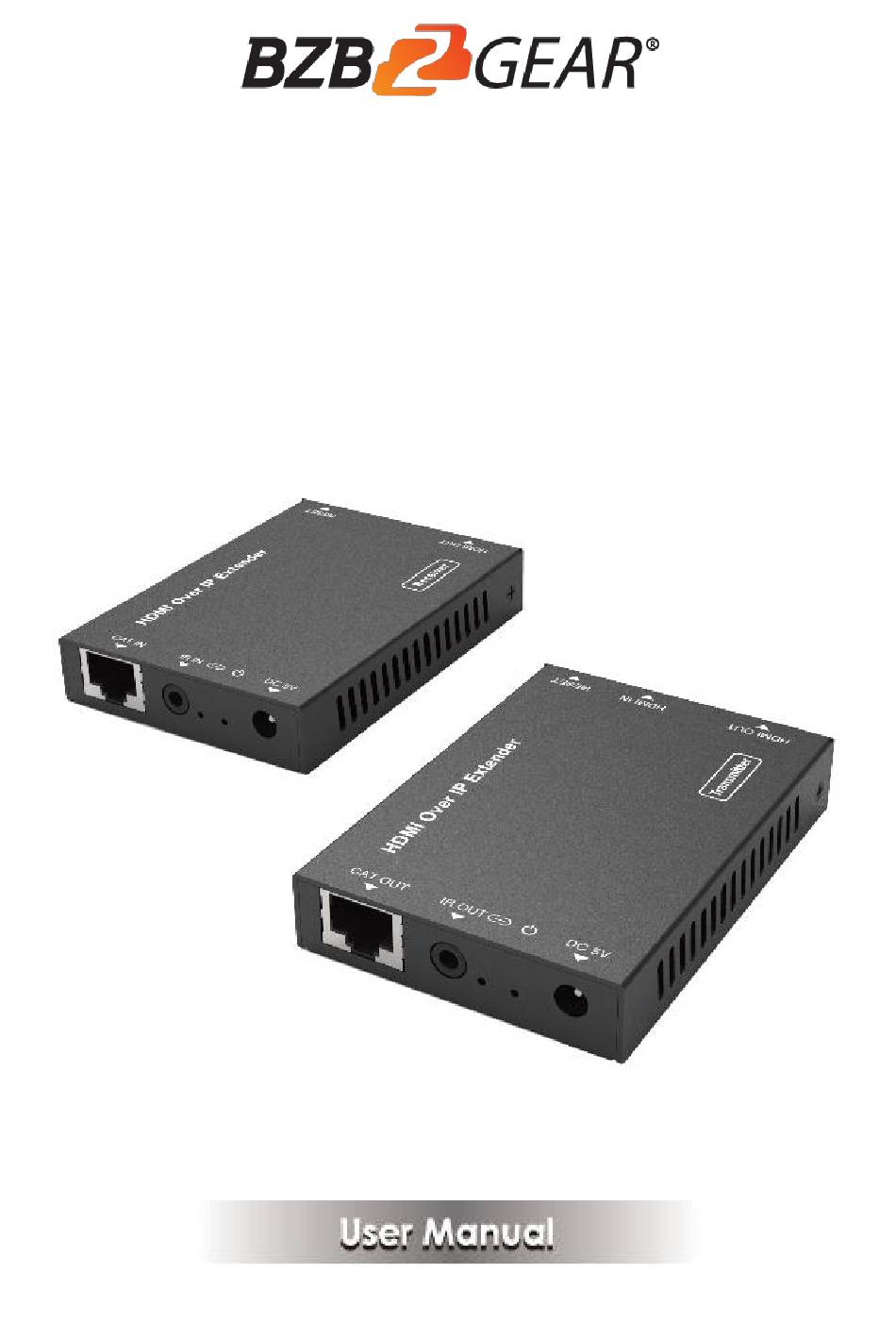

  • Page 1 BZ-IP-100HD HDMI over IP Extender with Loop out (100M)

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The BZ-IP-100HD is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 100m/328ft between encoder and decoder via Cat5e/6 cable.

  • Page 4: Package Contents

    ☆ Support 1G standard IP switcher / router / hub ☆ Support one-way IR control ☆ Compact design for easy and flexible installation 3. Package Contents ① 1× HDMI over IP Encoder ② 1× HDMI over IP Decoder ③ 1× Wideband IR Blaster cable ④...

  • Page 5: Operation Controls And Functions

    Outputs: 1×HDMI Type A [19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack] 1×CAT OUT [RJ45 connector] Decoder Inputs: 1×IR IN [3.5mm Stereo Mini-jack] 1×CAT IN [RJ45 connector] Outputs: 1×HDMI Type A [19-pin female] Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 88mm (W) ×...

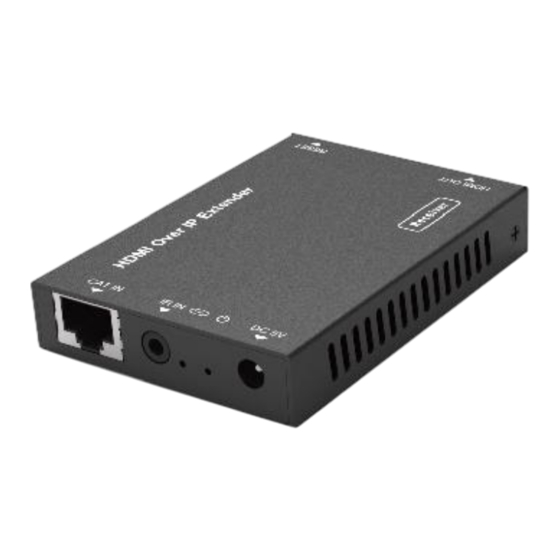

  • Page 6: Decoder Panel

    CAT cable for sending signal to Decoder. Notice: The CAT OUT is also a network port, it can be connected directly PC (through corresponding on-demand software such as VLC media player software.) to output signal from HDMI IN port. IR OUT Connect to wideband IR blaster cable.

  • Page 7: The Computer Plays Video Stream

    powered on. DC 5V Plug the DC 5V/1A power supply into the unit and connect the adapter to an AC outlet. 6. The Computer plays Video Stream 6.1 Web GUI introduction The Encoder supports play video stream on computer through the corresponding on-demand software such as VLC media player, and you can connect the Web GUI of the product to control your on-demand software on the computer.
  • Page 8 Step 2: On the PC, go to Control Panel >Network and Internet> Network Connections>Local Area Connections, right click on it, choose Properties. Double click Internet Protocol Version 4 (TCP/IPv4). Choose “Use the following IP address”, input 192.168.10.200 as IP address, 255.255.255.0 as Subnet mask, and then click on OK, click on OK again.
  • Page 9 Notice: The IP address of the computer and Encoder should be in the same network segment. As the Encoder’s IP address is 192.168.10.10, the computer's IP should be 192.168.10.X (X contains 1~255 except 10). Step 3: Input the Encoder’s IP address into your browser on the PC to enter Web GUI page.
  • Page 10 Dectype: There is a drop-down frame when you click the blue arrow area. You can choose H.264 or H265 code at MainStream or SubStream. Please see below picture 1. Picture 1 Resolution: There is a drop-down frame when you click the blue arrow area. You can choose an output resolution.
  • Page 11 Network page Network Configuration ◆ In DHCP open status: DHCP switch: Obtain automatically the network configuration information, including IP address, Subnet, Gateway. ◆ In DHCP close status: DHCP switch: If the DHCP switch has been closed, you can set IP, Subnet, Gate address.
  • Page 12 Status button: Clicking this button will refresh currently network configuration information to display in Status Log. Status Log: Display the Net configuration information. port: Set netport port value. The default value is 80. Note: When you use the product alone, we suggest that you use the default IP setting.

  • Page 13: Vlc Media Player Instruction

    6.2 VLC media player instruction When you have connected the Web GUI, then you need to open the VLC media player software on the computer. Double click the “VLC media player” shortcut icon. Please see the icon at picture 4. Picture 4 Step 1: Click “Media >...
  • Page 14 “Play” button. Please see the following page. Note: ① If you enter a MainStream network URL, you can use the MainStream to control the VLC media player on the Video page of Web GUI. If you enter a SubStream network URL, you can use the SubStream to control the VLC media player on the Video page of Web GUI.
  • Page 15 At the same time, you can check the setting on VLC media player. Choose “Tools>Codec information” to check current codec and resolution. Please see the following picture. Choose “Tools>Codec information>Statistics” to check current bitrate. Please see the following picture.
  • Page 16 Note: The bitrate is floating up and down when you check it. This is a normal phenomenon.

  • Page 17: Application Example

    7. Application Example...

  • Page 19: Faq

    BZB Gear catalog. You’ll notice comparably lower prices with BZB Gear solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers.

  • Page 20: Warranty Information

    10. Warranty Information BZB Gear | Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.
