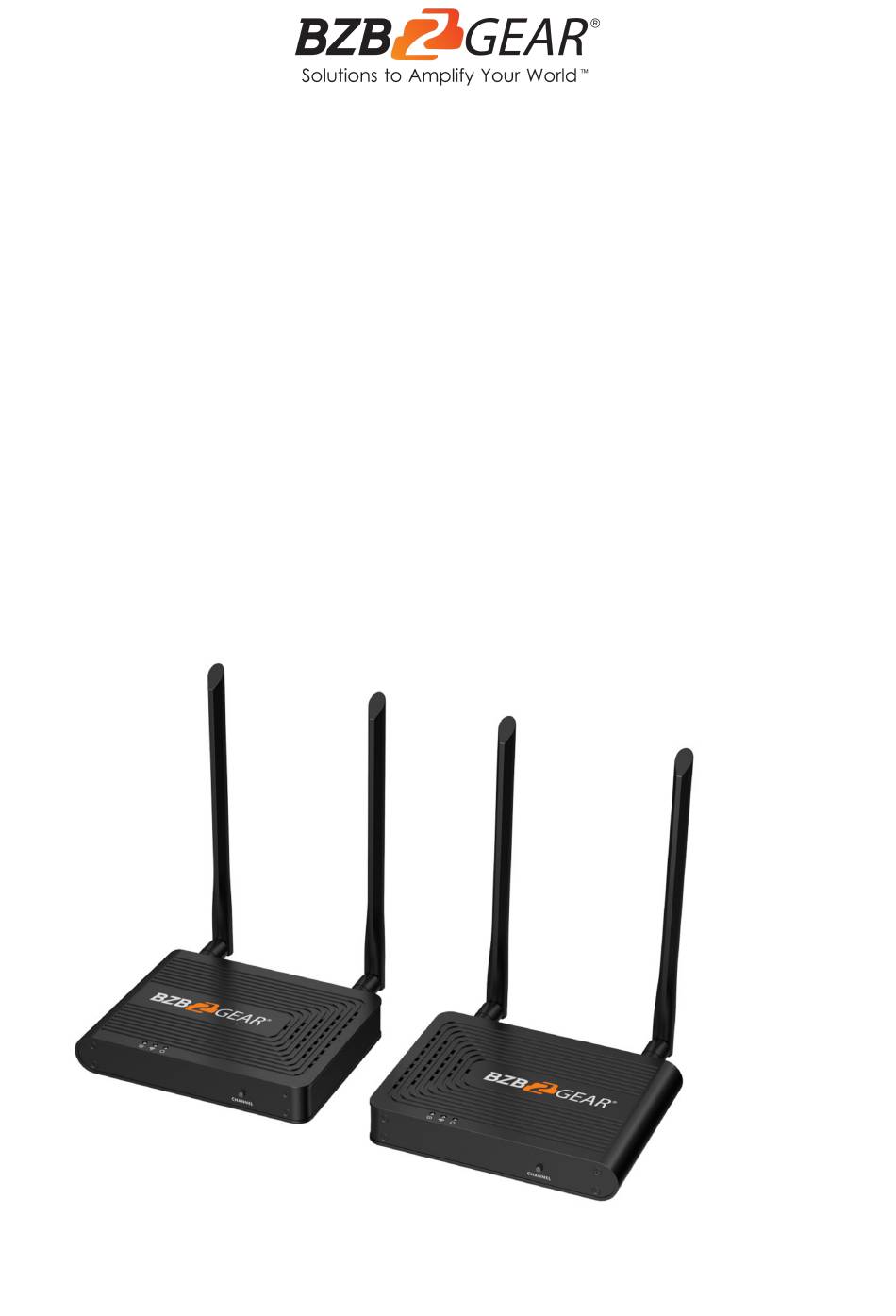

- Page 1 BG-Air4Kast 4K60 UHD HDMI 2.0 Wireless Extender Kit up to 164ft (50m) User Manual...
- Page 2 BZBGEAR BG-EXH-70C2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Package Contents Specifications Panel Descriptions Connection Diagram Connection Instructions SSID Pairing Instructions Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. ●... -
Page 5: Introduction
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Introduction The BG-Air4Kast is an advanced 4K@60Hz HDMI wireless extender solution consisting of a transmitter and a receiver. It leverages ipcolor STREAM technology for high-definition and low-latency video transmission. Operating on the 5G wireless frequency band, it delivers stability, anti-interference capabilities, and increased performance. -
Page 6: Specifications
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Specifications Technical Specifications Power Supply DC 5V/2A (TX ≤ 6W, RX ≤ 4W) HDMI Version HDMI 2.0 HDCP Version HDCP 1.4 / HDCP 2.2 Maximum Transfer Rate 18Gbps 3840x2160@24/30/50/60Hz, Supported Resolutions 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440, 2560x1600 WiFi Frequency Bands 5.18~5.24 GHz Transmission Distances... -
Page 7: Panel Descriptions
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Panel Descriptions Transmitter (TX) Power Indicator The LED will illuminate blue when the device is powered on. WiFi Indicator Slow Flash: Waiting for connection Solid: Connection established Rapid Flash: SSID Pairing Mode Signal Indicator Off: No HDMI signal detected Solid: HDMI signal is transmitting Rapid Flash: Restore Factory Settings in progress Channel Switch Button... - Page 8 BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Receiver (RX) Power Indicator The LED will illuminate blue when the device is powered on. WiFi Indicator Slow Flash: Waiting for connection Solid: Connection established Rapid Flash: SSID Pairing Mode Signal Indicator Off: No HDMI signal detected Solid: HDMI signal is transmitting Rapid Flash: Restore Factory Settings in progress Channel Switch Button...
-
Page 9: Connection Diagram
3. Plug the included power supplies into the devices to turn them on. 4. If multiple sets of BG-Air4Kast are being used at the same time and in the same area, in order to prevent interference switch each set of transmitters and receivers to a different channel after they have been manually paired using the SSID function. -
Page 10: Ssid Pairing Instructions
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL SSID Pairing Instructions 1. Enter SSID pairing mode by holding the transmitter and receiver's channel switch buttons for five seconds. Both WiFi connection indicators will rapidly flash yellow. 2. When the SSID pairing is successful, the WiFi indicators on the transmitter and receiver will change from quick flashing to a slow flashing or steady on. -
Page 11: Tech Support
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 12: Mission Statement
BZBGEAR BG-EXH-70C2 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
