- Page 1 HDMI Extender over single 50m/164ft UTP Cables with IR Control BZB-EXHD-TX BZB-EXHD-RX User Manual...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BZB-EXHD-RX / BZB-EXHD-TX HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. -
Page 4: Package Contents
3. Package Contents ① 1× HDMI Transmitter ② 1× HDMI Receiver ③ 1× Wideband IR Blaster cable ④ 1× Wideband IR Receiver cable ⑤ 1× 5V/1A Power adapter ⑥ 1× User Manual 4. Specifications Technical Video Bandwidth Single-link 165Mhz [ 4.95Gbps] Video Support 480i/480p/720p/1080i/1080p @60 Surround Sound (up to 7.1 ch) or stereo digital... -
Page 5: Operation Controls And Functions

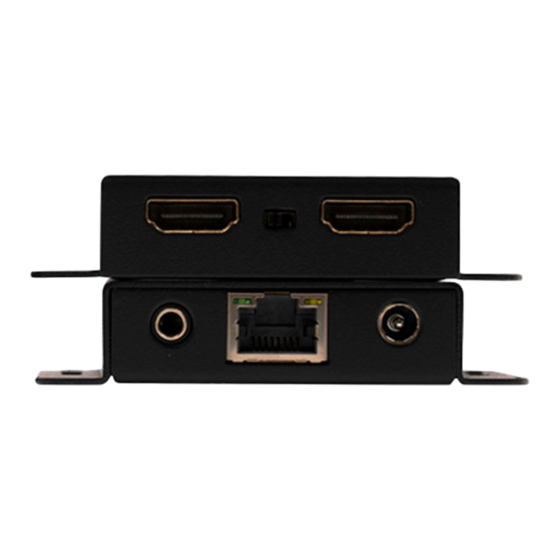

5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Function description This slot is where you connect the HDMI output port HDMI In of your source equipment such as DVD/Blu-ray players or Set-Top-Box with an HDMI cable. The switcher can switch copy EDID function,switch to right position,the extender will copy hdmi loop EDID out display EDID information to source. -
Page 6: Receiver Panel
5.2 Receiver Panel Number Name Function description EQ switcher HDMI Receiver equalizer switcher. This slot is to connect the HDMI input port of your HDMI out display such as an HDTV. Connect to the IR Receiver for IR signal reception. IR in Ensure that remote being used is within the direct line-of-sight of the IR receiver. -
Page 7: Ir Equalizer Distance Adjust
5.3 RX Equalizer distance adjust If you see flickering or blinking image on the display, adjust the EQ switch to improve the cable skew. MAX stands for the strongest HDMI signal level for the longest possible transmission length while MIN stands for the weakest HDMI signal level for short transmission length. -
Page 8: Connection Diagram
6. Connection diagram Transmitter Power Supply Cat 5e/6 cable IR Blaster DVD or Blu-ray Player UHDTV Receiver IR Extender (DVD or Blu-ray Player remote) UHDTV... -
Page 9: Connect And Operate
7. Connect and Operate 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit. - Page 10 IR BLASTER (TX) To control the source: Plug IR Blaster into IR TX port of transmitter unit; place blaster in front of the IR eye of the source. IR RECEIVER (RX) To control the source: Plug IR Receiver into IR RX port of receiver unit; place receiver at or near display.
- Page 11 We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZB Gear is the solution for small to medium-sized applications requiring the latest professional products in AV.
- Page 12 For questions, please call 1.888.660.2962 or email support@bzbgear.com. For complete warranty information, please visit BZBGear.com/warranty or scan the QR code below. *Terms and conditions apply. Registration is required. -10-...
