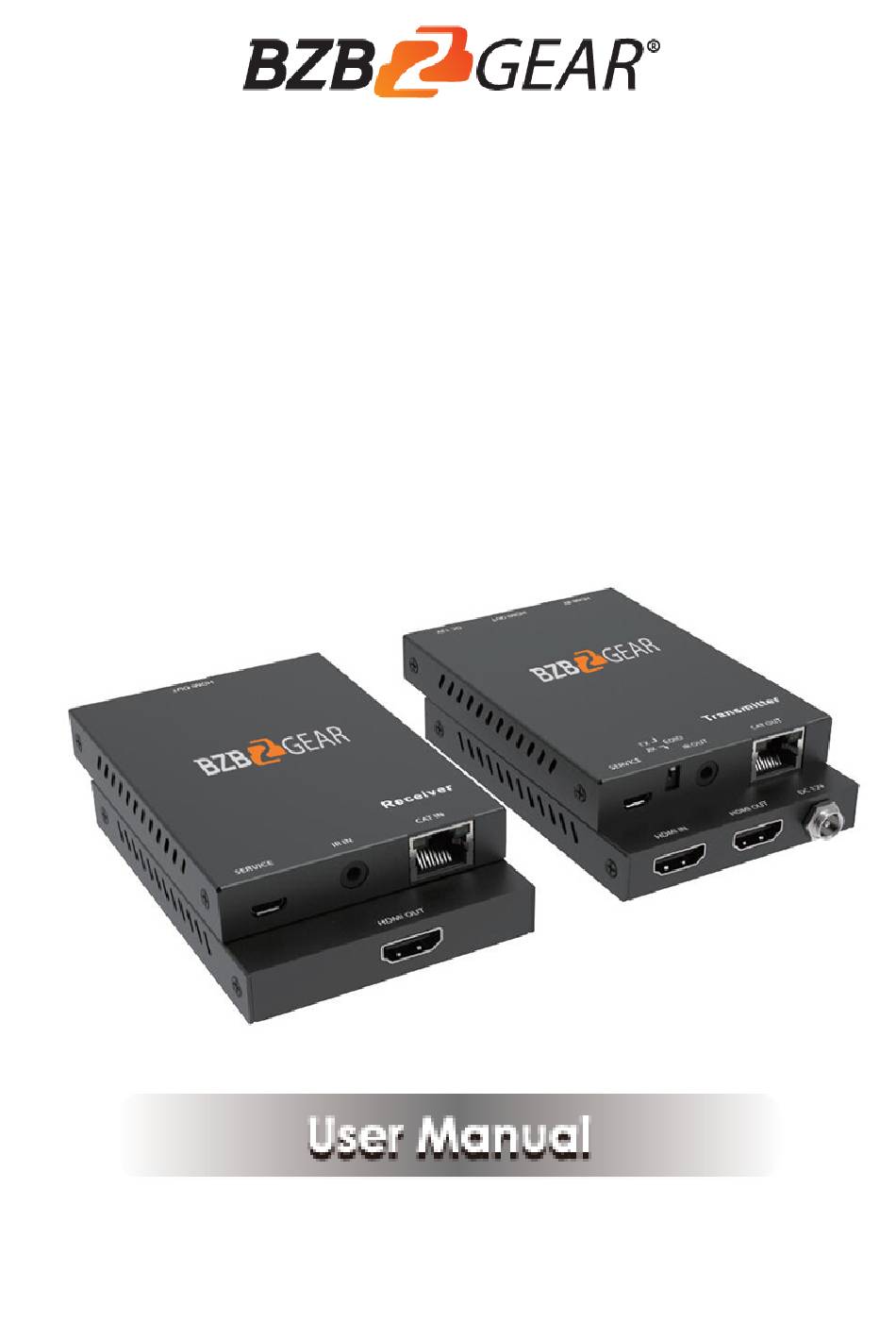

- Page 1 BZB-EXH-50 HDMI2.0 Extender over Single CAT6 with IR Control...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BZB-EXH-50 extends high definition video and audio signals and one-way IR, at a distance of up to 164ft/50m over a single Cat6 cable. With only one cost effective Cat6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. -
Page 4: Features
2. Features ☆ HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant ☆ Supports 18Gbps bandwidth ☆ Supports input and output video resolutions the maximum up to 4k2k@60Hz RGB/Ycbcr 4:4:4/Ycbcr 4:2:2, extends distance the furthest up to 164ft/50m ☆ Supports one route HDMI loop output ☆... -
Page 5: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, DSD ESD Protection... -
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Function description SERVICE port For firmware updated use. COPY TX / RX ▪ When in “TX” position, the unit will copy the EDID setting of the HDMI loop output display device to source device. -
Page 7: Receiver Panel
5.2 Receiver Panel Number Name Function description SERVICE port For firmware updated use. IR IN Connect to wideband IR Receiver cable. CAT IN Connect to CAT OUT port on the transmitter end with a CAT6 cable. Power Indicator The lamp will illuminate when the receiver is power Lamp Connection signal The lamp will illuminate when the transmitter and... -
Page 8: Ir Pin Definition
5.3 IR Pin Definition IR Receiver and Blaster pin’s definition as below:... -
Page 9: Application Example
6. Application Example... -
Page 10: Mission Statement
7. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. -
Page 11: Warranty Information
8. Warranty Information Second Year Assurance BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.
