Summary of Contents for BZB Gear BZ-USB2.0-SR

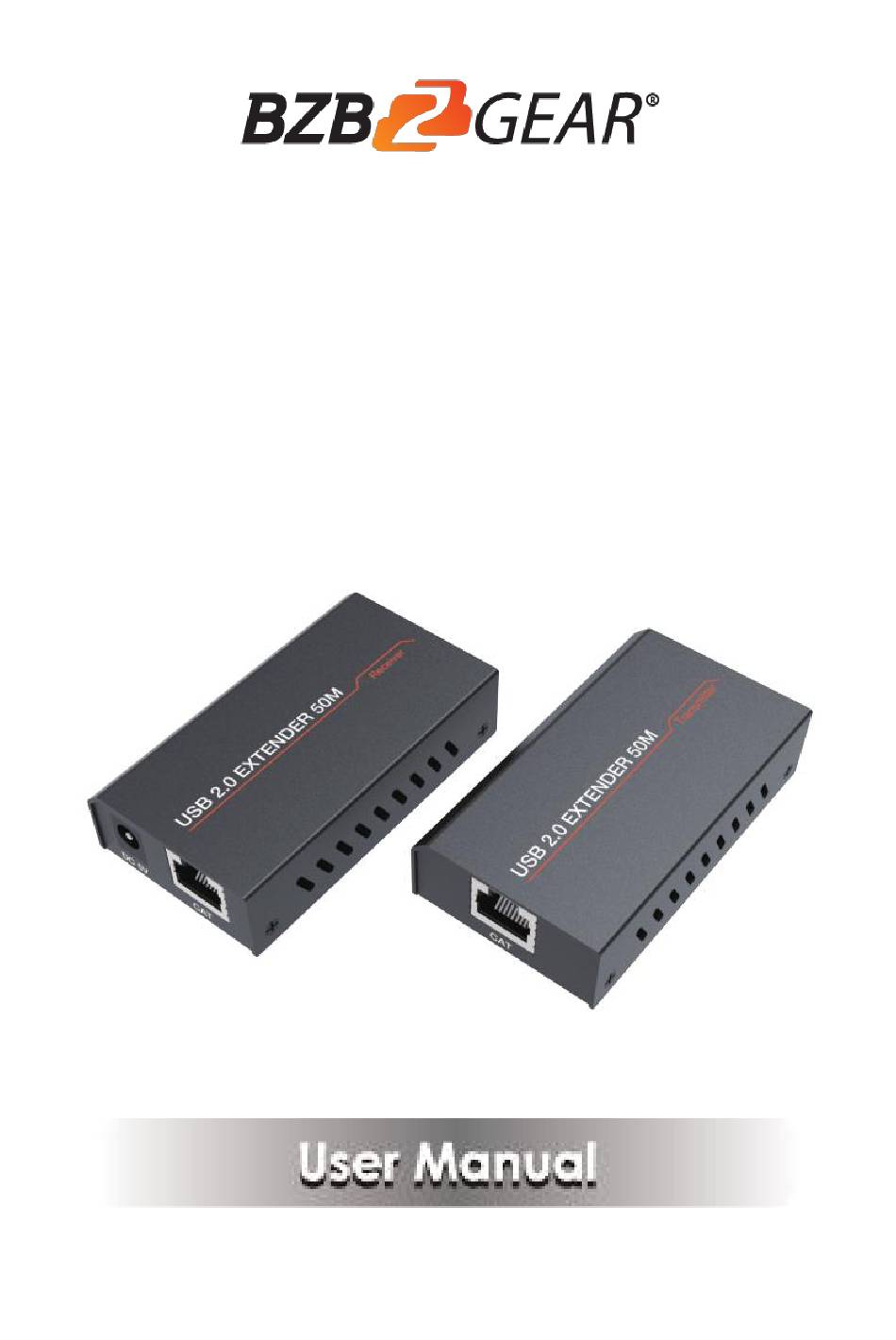

  • Page 1 BZ-USB2.0-SR USB 2.0 Extender (50M)
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction The BZ-USB2.0-SR can extend USB signal up to 50 meters / 164ft via Cat 5e/6 cable (The transmission distance can only up to 40 meters / 131.2ft for some USB 2.0 Hub). In transmitter, the USB-B port is connected a PC. In receiver, you can connect a device with USB port at the two USB ports such as U disk or printer, etc.
  • Page 4: Package Contents

    3. Package Contents ① 1× USB 2.0 Extender (Transmitter) ② 1× USB 2.0 Extender (Receiver) ③ 1× USB cable (USB-B male head to USB-A male head, one meter) ④ 1× 5V/1A Power Adapter ⑤ 1× User Manual 4. Specifications Technical USB protocol USB 2.0 Transmission rate...
  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Function description USB port Use USB-B male head to USB-A male head line to connect a PC’s USB port. Note: The PC can control USB port’s device of the receiver. POWER LED Power LED indicator.
  • Page 6: Receiver Panel

    5.2 Receiver Panel Number Name Function description USB 2.0 port Connect to a device with USB port such as printer or U disk, etc. POWER LED Power LED indicator. The green LED will illuminate when the receiver is connected power supply. DC 5V Plug 5V/1A DC power supply into the unit and connect the adapter to an AC outlet.
  • Page 7: Application Example

    6. Application Example...
  • Page 8: Mission Statement

    BZB Gear catalog. You’ll notice comparably lower prices with BZB Gear solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers.
  • Page 9: Warranty Information

    8. Warranty Information BZB Gear | Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.
