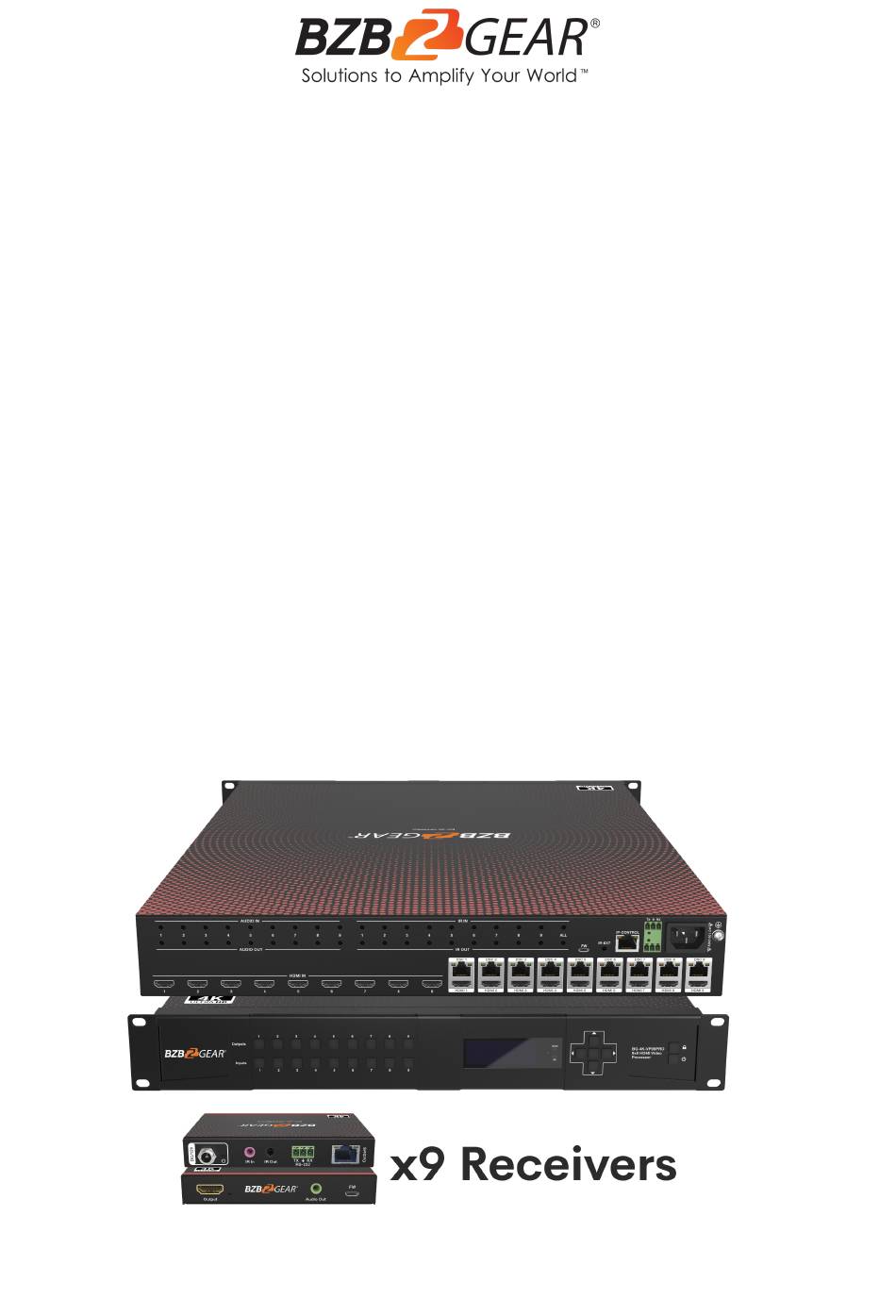

- Page 1 BG-4K-VP99PRO 4K60Hz HDMI 9x9 Seamless Matrix and Signal Extender (70m) with Video Wall and Multiview Modes User Manual...
- Page 2 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Video Switching Operation Matrix Switching Instructions Input/Output Channel Interface Instructions Switch an Input to an Output Video Control Mode Control Audio Setting... -
Page 4: Statement
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-4K-VP99PRO is a 9x9 HDMI 2.0 over CAT5/6/7 matrix switcher with 3x3 Video Wall and 9 source multiview capabilities. Experience the pinnacle of versatility and cutting-edge technology with this advanced HDMI matrix switcher, perfect for a wide range of professional AV installations. -
Page 6: Specifications
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Specifications Technical Specifications HDMI Input 9 x HDMI In HDMI Output 9 x HDMI loop out, 9 x HDMI Out Audio output Analog (Balanced audio) Video Format Supported 4K@60Hz/1080P/720P/576P/480P/480i HDCP Compliant HDCP 2.2 and HDCP 1.4... -
Page 7: Operation Controls And Functions
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Operation Controls and Functions Front Panel 1. OUTPUT AND INPUT 1~9 (When switching, press Output first, then press Input) 2. LED Display 3. Menu Buttons: UP/DOWN/LEFT/RIGHT/ENTER (Center) 4. Function buttons: Panel Lock, Power (Stand-By Mode) Button... - Page 8 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Rear Panel 1. 3.5mm Audio Input and Output Ports 2. IR Input and Output Ports 3. FW Interface: Used for firmware upgrades 4. IR Extension Port 5. Ethernet Port: CAT5/6/7 6. RS-232: 2X 3-Pin Phoenix; Top - Control and firmware updates; Bottom - Log Access 7.
-
Page 9: Video Switching Operation
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Video Switching Operation Matrix Switching Instructions This matrix includes 9 channels that can be configured as either inputs or outputs according to your display requirements. It allows switching any input signal to any one output or to all outputs simultaneously. -
Page 10: Video Control
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Video Control Press “MENU” on panel button to enter the main Menu interface: 1. Video: source switch 2. Mode: mode switch 3. Audio: audio setup 4. EDID: EDID setup 5. Preset: preset setup 6. INFO: info query 7. -
Page 11: Video Switch
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Video Switch Switch any output to any input or switch all output to the same input 1. Choose “Video” in the menu and press “ENTER” button 2. Choose “Output1” and press “ENTER” button 3. Press “UP” and “DOWN” to select “Switching”, press “ENTER”... - Page 12 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL PoC On/Off Turn on/off any one-channel power supply for the receiver (12V 3A power). POC On/Off Interface Output Resolution Selecting Resolution Format Interface Output resolution options: 2160P(default), 1080P, 720P, 1360x768, AUTO (local), and AUTO (remote) .
-
Page 13: Mirror Function
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Rotate Select any one or all outputs and rotate video (clockwise 180º) Rotate Interface Mirror function Mirror for any one or all video outputs. Options: Normal (default, not mirrored), Only X (Mirror Horizontally), Only Y (Mirror Vertically), X and Y (Mirror Horizontally & Vertically,180°... -
Page 14: Advanced Setup
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Advanced Setup Choose any one or all outputs for image color setup, including: Restore(reset all for color setup), Brightness, Contrast, Saturation, Hue, R_Gain, G_Gain, B_Gain, R_Offset,G_Offset, and B_Offset. Each one can set 0~100, default is 50. - Page 15 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Seamless Matrix Seamlessly switch an input for all video outputs. (P2P: output1 choose input1,output2 choose input2,etc.) Seamless Matrix Interface Video Wall Mode There are 4 sub-menus: Preset, Set Up (video wall size), Source (switch input), Offset (horizontal and vertical margin settings) A.
- Page 16 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL B. Set Up H_NUM represents the number of screens on horizontal axis, option 1~10, default 1; V_NUM represents the number of screens on vertical axis, option 1~10, default 1; Cascade represents device in which layer for the cascade connection, option 1~12, default ·...
- Page 17 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL C. Source To switch input source for video wall. 1. Use HDMI loop out port to connect next device for cascade when needed 2. Press “UP” and “DOWN” to select “Source”, press “ENTER” 3. Press “UP” and “DOWN” to select “Input1”...
-
Page 18: Audio Setting
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Audio Setting There are 10 sub-menus in the Audio control Interface: 1. OUT 1~9 2. ALL The Audio Setting interface can set each output individually or all outputs at once. Mute, Unmute, or Delay can be selected for HDMI and Analog audio settings. -
Page 19: Edid Setting
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL EDID Setting Set each of the input ports’ EDID, there are two resolutions of Built-In EDID: 4K30hz; 1080P; EDID Interface · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 20: Preset Setting
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Preset Setting 1. Call: Call the preset video 2. Save: Save the preset settings 3. Clear: Remove the settings There can be a total of 8 different presets. To modify the preset name users will need to login to the WEB interface. -
Page 21: Setup Section
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Setup Section OSD Setting OSD setting with 2 sub-menu: Menu time: Timing OSD setting in Menu interface Always means the OSD info will be showed all the time; 60s means the OSD info will be turn off after 60 seconds. - Page 22 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL DHCP Setting (Default: DHCP Off) Reboot Setting · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 23: Factory Setting
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Factory Setting It is an initialization setting for the device function. There are two factory settings: 1. Factory-Run 2. Factory-User Factory-Run is the recovery operation data. (Keep the Preset setting) Factory-User can restore the factory settings for all settings. -
Page 24: Info Section
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Info Section View device information such as network information and system information. The default IP address is 192.168.1.168. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 25: Remote Control
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Remote Control ：Standby or power on ：Mute button ：Return to upper level ：Move to next level ：Picture off ：Page turn by 100 of the last sub-menu ：Page turn by 10 of the last sub-menu ：Menu ：All output ：Up... -
Page 26: Web Control
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL WEB Control Network Control Instructions When the matrix is connected to a control device (such as a PC) through the TCP/IP network port, it can be controlled via ASCII/HEX commands or through a web-based GUI. Control Options: 1. - Page 27 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL In your preferred web browser type in the default IP address of the unit or the one shown in the on-screen display if the unit was set to DHCP or previously configured. Users will be directed to the login page of the device.
-
Page 28: Video Interface
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Video Interface A. Matrix Interface Video Output Interface B. Video Wall Interface · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 29: Audio Interface
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL C. Preset Interface Rename for each Preset scene, Save/ Call/ Clear preset. Audio Interface · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 30: System Interface
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL EDID Interface SYSTEM Interface Include: Network, Reset, Password. Network Interface Settings Setting and Displaying IP Information: 1. MAC Address: ○ The MAC address is for display only and cannot be modified. 2. Static IP Address: ○ When DHCP is turned off, you can modify the static IP address. -
Page 31: Device Control Options
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Reset Interface Device Control Options Reboot: ● Operation: Reboots the device. Factory Run: ● Operation: Restores running data, including settings for video, audio, EDID, and setup (preset settings are retained). Factory User: ● Operation: Restores all settings to factory defaults. - Page 32 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Password Interface Modify password for current login account Default Account: admin Default Password: admin (Only support 5~15 bits, support alphabets/numbers/underline) · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 33: Rs-232 Control
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL RS-232 Control Operations may vary depending on the control program used to send RS-232 commands . Select the serial port that the unit is connected to on the PC using a serial cable. ● Baud rate: 115200 (default) ●... -
Page 34: Ir System
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL IR System The matrix can pass the IR signal through the IR system to the HDMI source or pass the IR signal from the HDMI source to the HDMI sink. Dual way IR using: Step 1: “IR IN” is for UTP output, “IR OUT” is for input channel Step 2: “IR IN ALL”... -
Page 35: Application Diagram
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Application Diagram 1. Seamless switch 9x9 HDMI Matrix · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... - Page 36 BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL 2. Diagram of 3x3 Video Wall Displaying · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 37: Tech Support
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 38: Mission Statement
BZBGEAR BG-4K-VP99PRO PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
