BG-HDKVM-50
HDMI/USB KVM Extender
Over Cat5e/6

Advertisement

Table of Contents
loading

Related Manuals for BZB Gear BG-HDKVM-50

Summary of Contents for BZB Gear BG-HDKVM-50

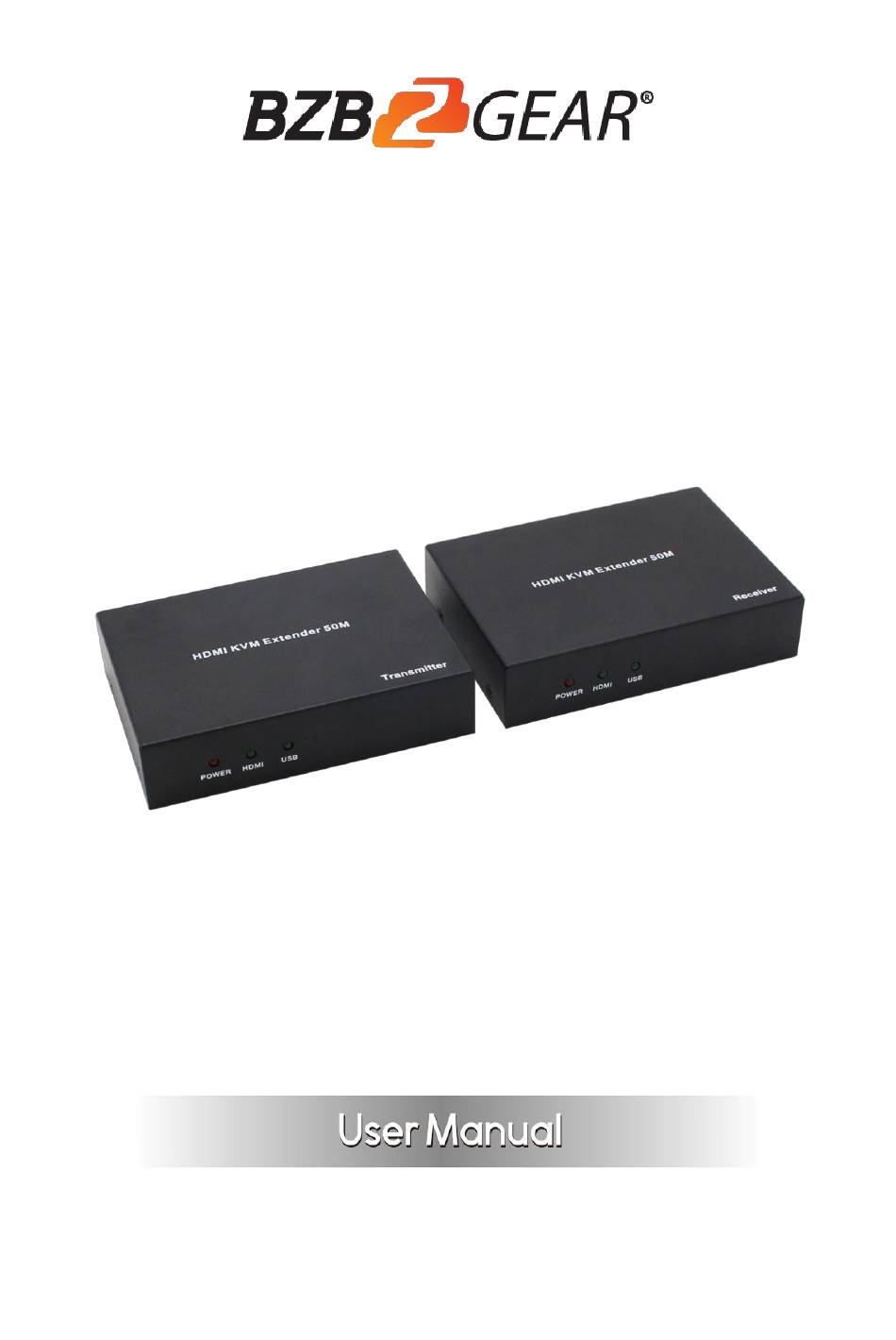

  • Page 1 BG-HDKVM-50 HDMI/USB KVM Extender Over Cat5e/6...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The BG-HDKVM-50 HDMI/USB KVM Extender can extend high definition HDMI and USB signals up to 164ft/50m over a single Cat5e/6 cable with zero latency. It supports HDMI 1.4b and USB 2.0 standards. Two-way POC (Power over Cable) function allows either TX or RX be powered by a single 12V@1A power supply.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 USB Compliance USB 2.0 720x576p50,720x480p60,640x480p60/75,800x600p60/75, Video Resolutions 1024x768p60/75,1280x1024p60,1680x1050p60,1280x720p25/30/ 50/60,1920x1080p25/30/50/60 Transmission Range: HD [1080p@60Hz 24-bit color] up to 50m [164ft] Color Depth 8-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+ Human body model —...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel 1) POWER: System power indicator. 2) HDMI: Input HDMI signal indicator LED. On means there is an active signal. USB: USB status indicator LED, no USB signal being transmitted will show slow flashing, when USB signal being transmitted will show quick flashing. 4) DC 12V: Connect to a 12V DC power supply.
  • Page 6 USB: USB status indicator LED, no USB signal being transmitted will show slow flashing, when USB signal being transmitted shows quick flashing. 4) DC 12V: Connect to a 12V DC power supply. No needs to connect another power supply if your transmitter box is powered by an external 12V DC power supply.

  • Page 7: Connection Diagram

    6. Connection Diagram...

  • Page 8: Second Year Assurance

    7. Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.

  • Page 9: Mission Statement

    Whether you’re an integrator, home theater enthusiast, or a do-it-yourselfer, BZB Gear offers the solutions to allow you to focus on your project and not your budget.
