Summary of Contents for BZB Gear BG-UHDKVM-100

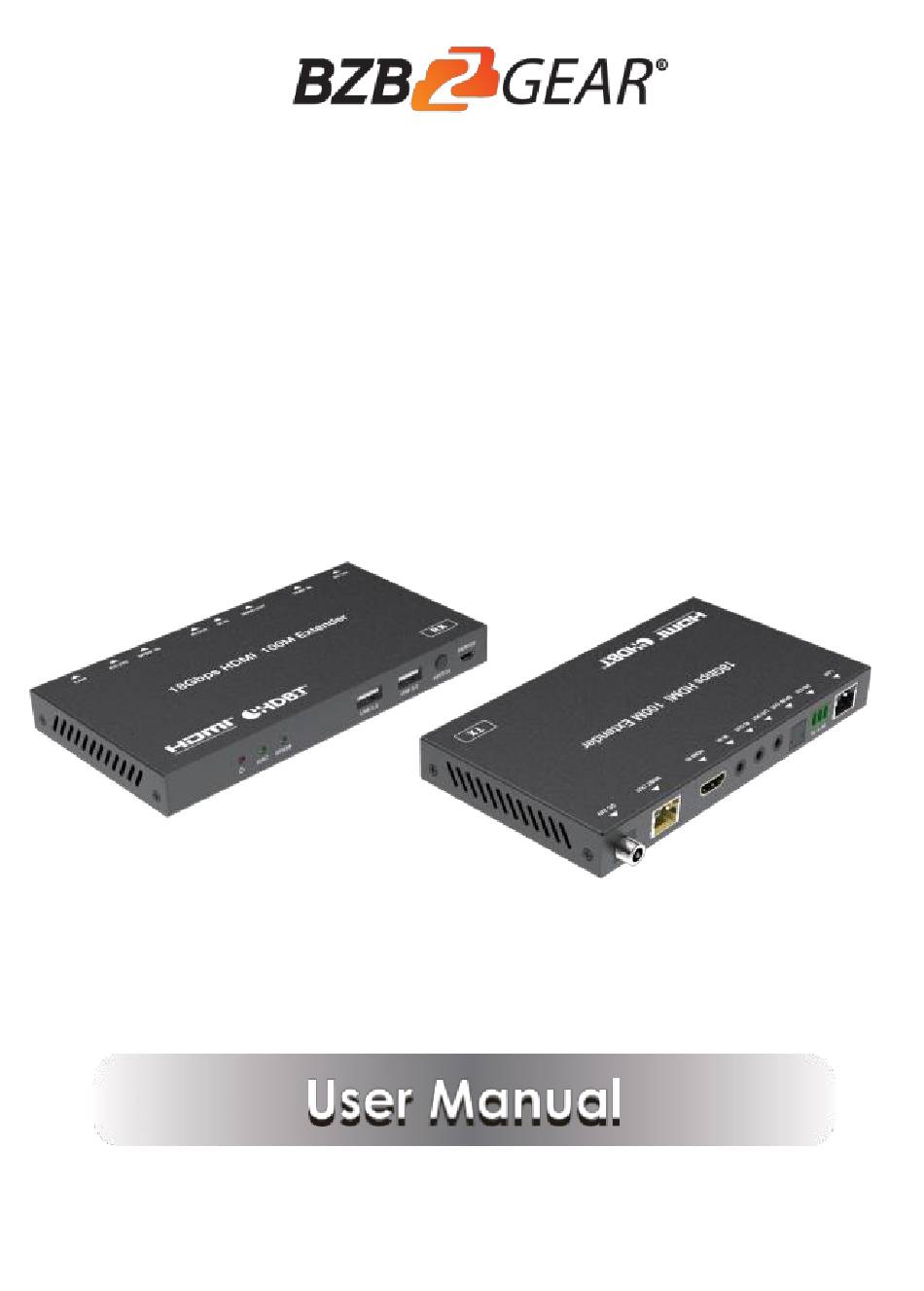

- Page 1 BG-UHDKVM-100 18Gbps HDMI over HDBaseT Extender with Bi-directional IR (100M)
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BG-UHDKVM-100 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The transmitter supports ARC function and local audio extract. -
Page 4: Package Contents
3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ear 3-pin Phoenix connector 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4... - Page 5 Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDBT OUT [RJ45, 8-pin female] 1x SPDIF OUT [S/PDIF] 1×L/R OUT [3.5mm Stereo Mini-jack] 1×LAN [RG45] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] 1×USB HOST [USB Type B]...
-
Page 6: Operation Controls And Functions
4K60 - 4K30 - 1080P60 - Resolution / Feet / Meters Feet / Meters Feet / Meters Cable Length HDMI IN / OUT 16ft / 5M 30ft / 10M 50ft / 15M The use of “Premium High Speed HDMI” cable is highly recommended. 5. -
Page 7: Receiver Panel
▪ Illuminate: Transmitter and Receiver are in good connection Connection Signal status. Indicator lamp ▪ Flash: Transmitter and Receiver are in poor connection (on the left side of the status. HDBT OUT port) ▪ Dark: Transmitter and Receiver are not connected. Data Signal ▪... -
Page 8: Audio Signal Output Switching
Green LED is on when SPDIF OUT port outputs the the SPIDIF LED audio signal returned from SPDIF IN on receiver. Two USB 2.0 ports Connect to USB device. Press the button to switch the output audio signal source for SWITCH SPDIF OUT and L/R OUT port. -
Page 9: Ir Pin Definition
5.4 IR Pin Definition IR Receiver and Blaster pin’s definition as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: IR remote sends signal at the distance of 0~5 meters / 0~8 meters with the angle of ±... -
Page 10: Application Example
6. Application Example SERVICE ARC SP DIF SWITCH USB HOS T Transmitter TX RX DC 24V HDB T OUT HDMI IN IR IN IR OUT L/R OUT SPDI F OUT RS -232 LA N Audio Amplifier TP -L INK Router HDMI Matrix with DVD or Blu-ra y Pla ye r IR Blaster... -
Page 11: Second Year Assurance
7. Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1. -
Page 12: Mission Statement
We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZB Gear is the solution for small to medium-sized applications requiring the latest professional products in AV.
