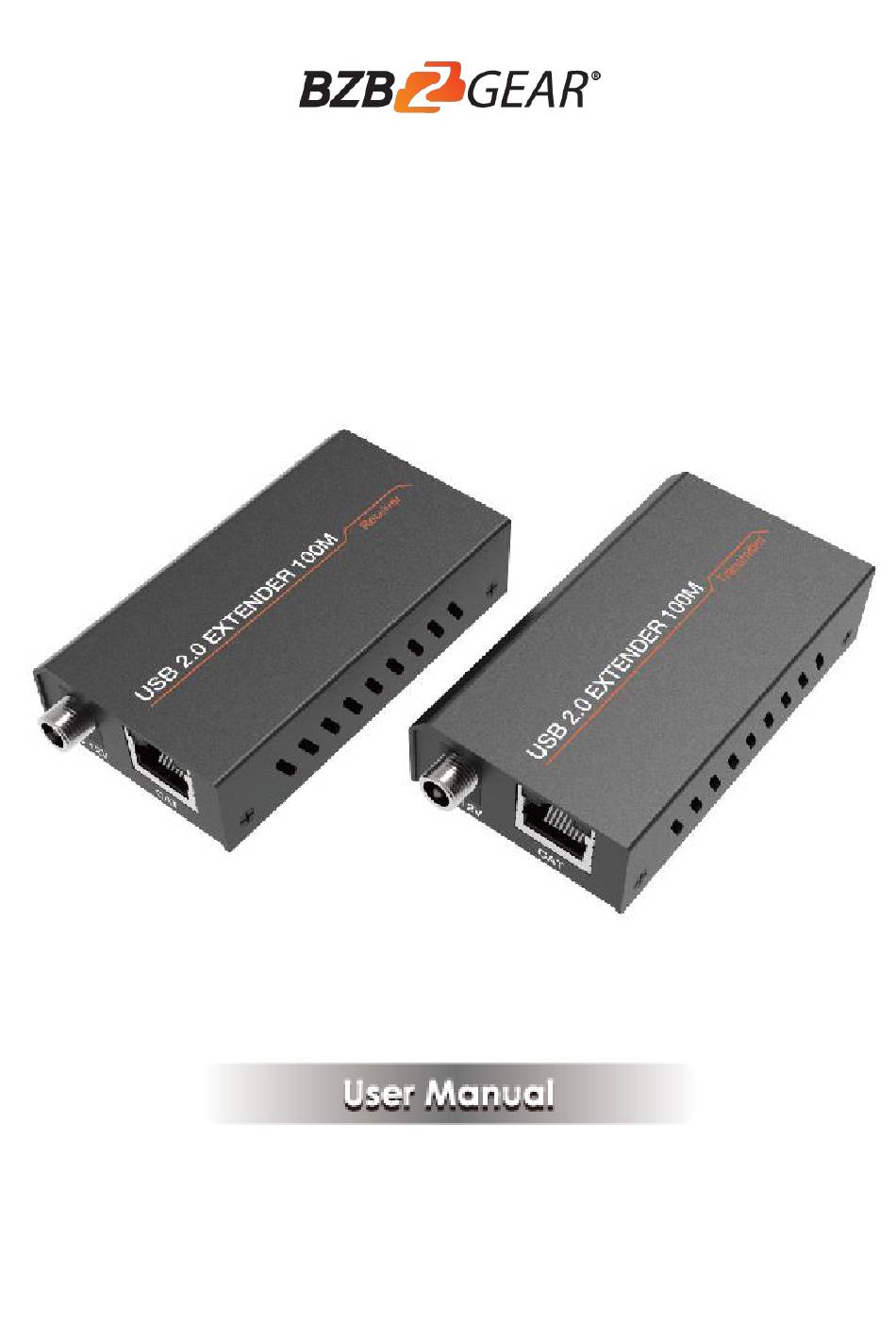

- Page 1 BG-USB-LR100 USB 2.0 Extender (100M)
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BG-USB-LR100 USB 2.0 Extender can extend USB signals up to 100 meters / 328ft via Cat 5e/6 cable. With the transmitter, the USB-B port is connected to a PC. With the receiver, you can connect USB devices via the two USB ports such as a U disk or printer, etc. -
Page 4: Package Contents
3. Package Contents ① 1× USB 2.0 Extender (Transmitter) ② 1× USB 2.0 Extender (Receiver) ③ 1× USB cable (USB-B male head to USB-A male head, one meter) ④ 1× 12V/1A Locking Power Adapter 4. Specifications Technical USB protocol USB 2.0 Transmission rate Up to 480Mbps Transmission distance... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function description USB port Use USB-B male head to USB-A male head wire to connect USB port of a PC. Note: The PC can control USB ports device of the receiver. -
Page 6: Rear Panel
5.2 Rear Panel Number Name Function description USB 2.0 port Connect to a device with USB port such as printer or U disk, etc. POWER LED Power LED indicator. The green LED will illuminate when the receiver is connected power supply. DC 12V Plug 12V/1A DC power supply into the unit and connect the adapter to an AC outlet. -
Page 7: Connection Diagram
6. Connection diagram... -
Page 8: Warranty Information
7. Warranty Information BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1. -
Page 9: Mission Statement
8. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
