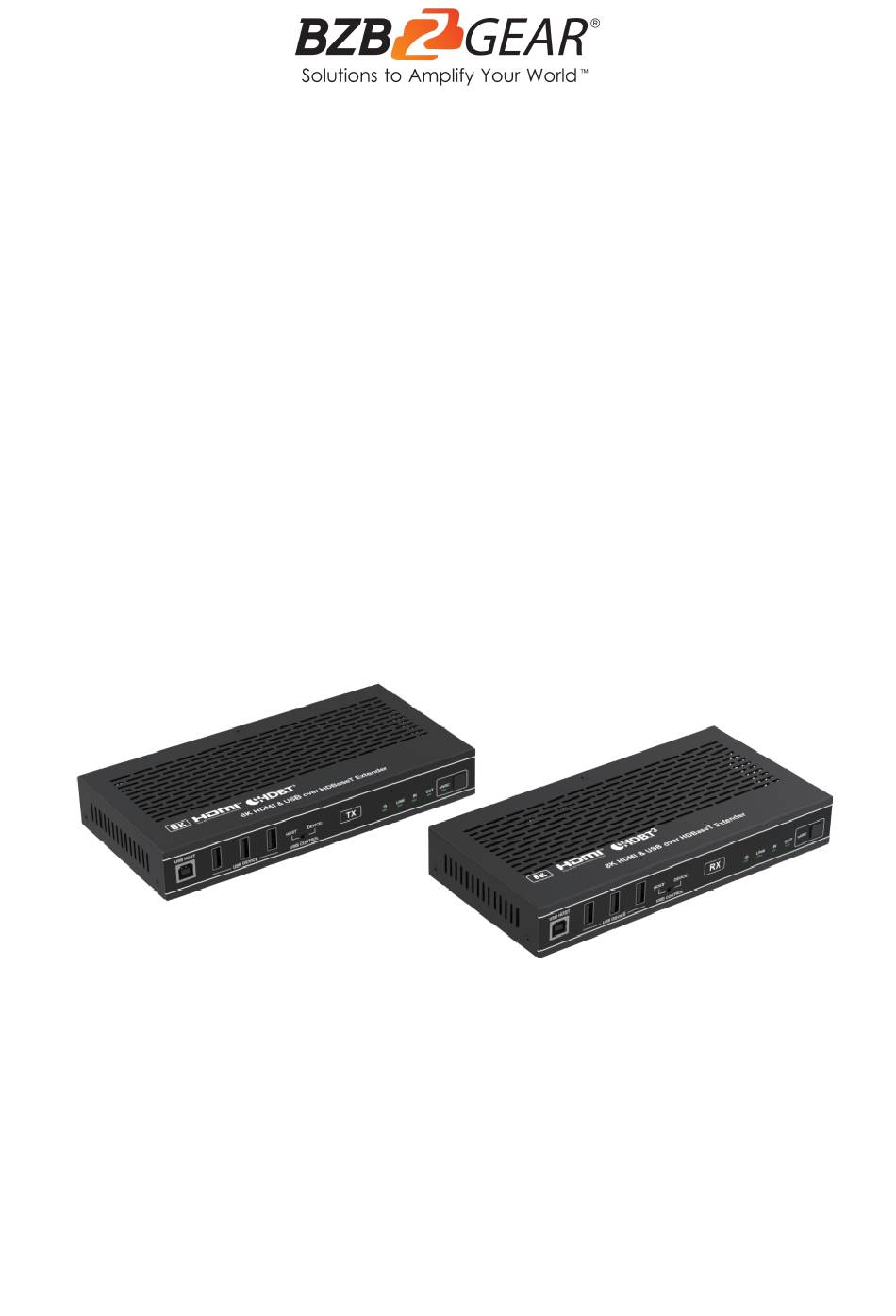

- Page 1 BG-EXH-8KC6 8K HDMI and USB over HDBaseT Extender User Manual...
- Page 2 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Pin Definition Connection Diagrams Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-EXH-8KC6 is an 8K HDMI & USB over HDBaseT Extender than can increase the range of uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 295ft (90m) via a single CAT6A/7 cable. -
Page 6: Packing List
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Packing List ● 1x BG-EXH-8KC6 Transmitter ● 2x 3-pin 3.81mm phoenix connectors ● 1x BG-EXH-8KC6 Receiver ● 4x Mounting ears ● 1x 24V / 2.7A Locking Power Supply ● 8x KM3*4 Machine Screws ● 1x IR Blaster Cable (1.5m) ●... - Page 7 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45] Input: 1 x HDMI IN [Type A, 19-pin female] 1 x HDBT Receiver IN [RJ45, 8-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack]...
-
Page 8: Operation Controls And Functions
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Operation Controls and Functions Transmitter Name Description USB Host Connect to a PC USB Device 3 USB extension ports; connect a flash drive, mouse, or keyboard Host/Device USB Switch to left (HOST), the USB HOST mode is Control Switch enabled;... - Page 9 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Video signal output indicator. Out LED Light on: There is HDMI signal output. Light off: There is no HDMI output or the system is powered off. Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate...
- Page 10 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Light off: Transmitter and receiver are not connected. This port features two functions: eARC/HDMI In 1. HDMI signal input port, connect to HDMI source device 2. eARC/ARC audio port, connect to eARC/ARC amplifier/sound system. HDMI Out HDMI video signal output port.
- Page 11 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Receiver Name Description USB Host Connect to a PC USB Device 3 USB extension ports; connect a flash drive, mouse, or keyboard Host/Device USB Switch to left (HOST), the USB HOST mode is Control Switch enabled; Switch to right (DEVICE), the USB DEVICE mode is enabled.
- Page 12 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL function, and the eARC LED will indicate the status as following: Light on: The eARC/ARC mode is enabled, and the eARC LED & Button device is working normally. Light flashing: The eARC/ARC mode is enabled, but the device is working abnormally.
- Page 13 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL RS232 commands and ensure that the eARC function is disabled. eARC/HDMI Out This port features two functions: 1. HDMI signal output port, connect to HDMI display device 2. eARC/ARC audio port, connect to TV with eARC/ARC function.
-
Page 14: Ir Pin Definition
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45°, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90°, the transmission distance is 0-8 meters. -
Page 15: Connection Diagrams
PRODUCT MANUAL Connection Diagrams USB Modes The BG-EXH-8KC6 supports USB 2.0 transmission and the Host / Device is configurable. Mode 1: USB from TX to RX 1. Switch the HOST/DEVICE USB control switch to the left and then power off... - Page 16 “upstream” to an A/V receiver. The BG-EXH-8KC6 will send the upstream audio from the receiver (RX) unit to the transmitter (TX) where it can be connected to a compatible device via HDMI ARC.
- Page 17 BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Standard Connection · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 18: Tech Support
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 19: Mission Statement
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 20: Copyright
BZBGEAR BG-EXH-8KC6 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
