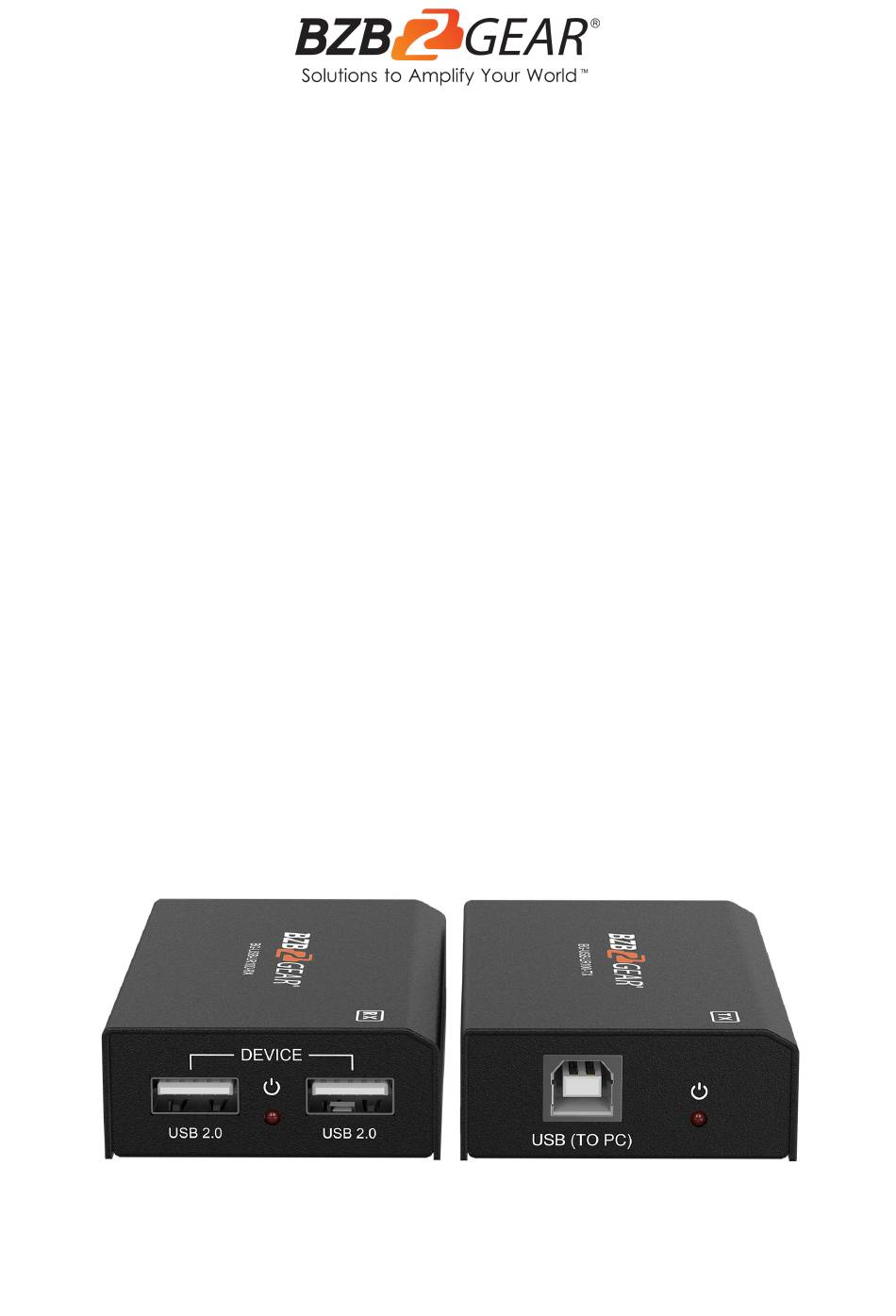

- Page 1 BG-USB-LR100 USB 2.0 Extender up to 330ft User Manual...
- Page 2 BZBGEAR BG-USB-LR100 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-USB-LR100 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-USB-LR100 USB 2.0 extender can extend USB signals up to 328ft (100m) via a Cat 5e/6 cable. Connect the transmitter to a PC and the receiver to USB devices via the two USB ports such as a flash drive or printer. The transmitter and receiver support PoC (Power over Cable) meaning only one of the units needs to be connected to a power supply. -
Page 6: Technical Specifications
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Technical Specifications Technical USB protocol USB 2.0 Transmission rate Up to 480Mbps Transmission distance 100M (328ft) Human-body Model：±8kV (Air-gap discharge), ESD Protection ±4kV (Contact discharge) Connections Input port: 1xUSB [USB-B, female] Transmitter Output port: 1xCAT [RJ45, female]... -
Page 7: Operation Controls And Functions
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Operation Controls and Functions Transmitter Panel 1. USB port: Use a USB-B male to USB-A male cable to connect to the USB port of a PC. Note: The PC can control USB ports device of the receiver. -
Page 8: Application Example
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Tech Support
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Warranty
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
BZBGEAR BG-USB-LR100 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
