BZB Gear BG-EXH-150C User Manual

18gbps hdmi over hdbaset extender with bi-directional ir (150m)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-EXH-150C
18Gbps HDMI over HDBaseT Extender
with Bi-directional IR (150M)

Advertisement

Table of Contents
loading

Related Manuals for BZB Gear BG-EXH-150C

Summary of Contents for BZB Gear BG-EXH-150C

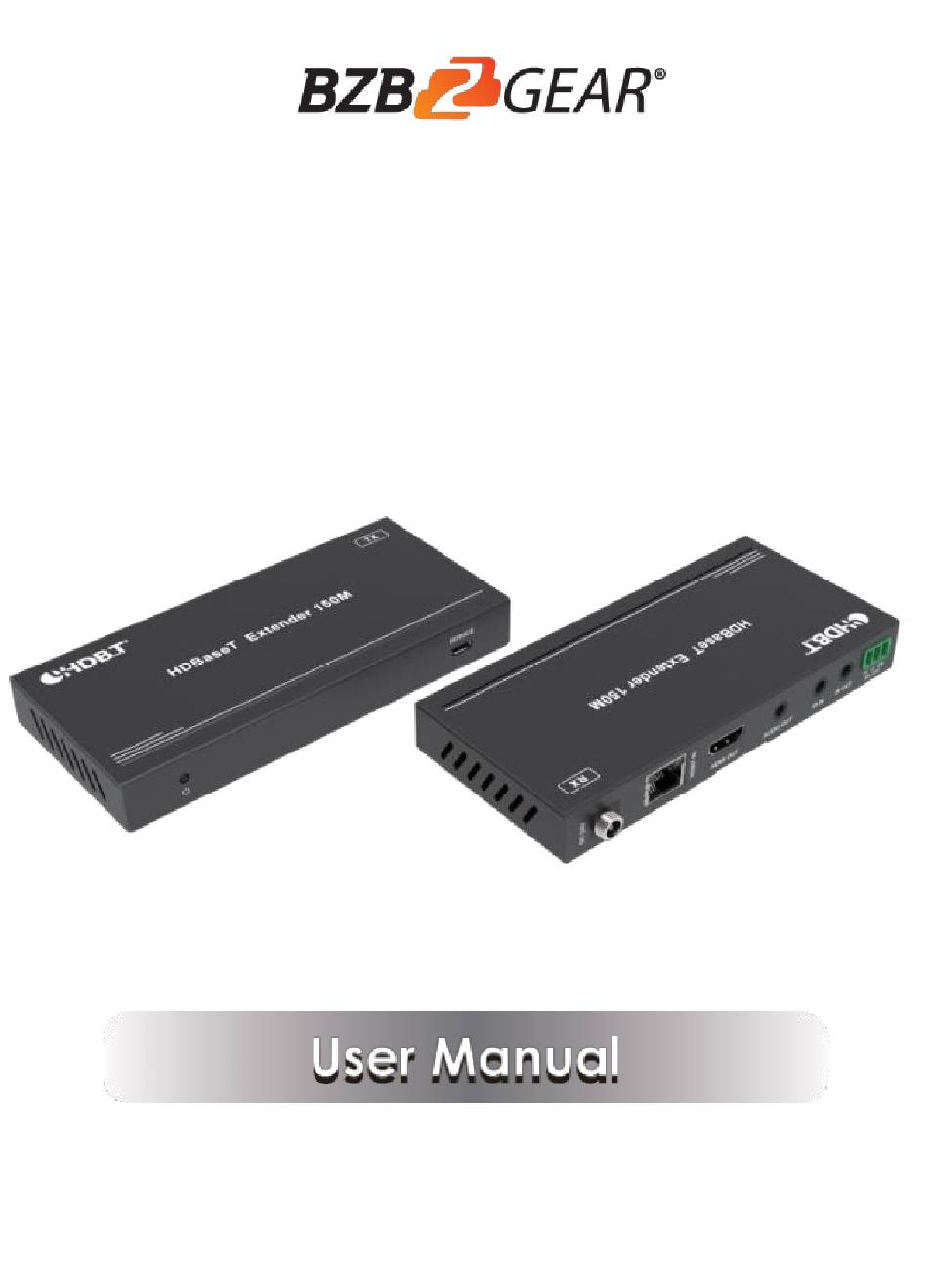

  • Page 1 BG-EXH-150C 18Gbps HDMI over HDBaseT Extender with Bi-directional IR (150M)

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The BG-EXH-150C 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps, and HDCP 2.2. One HDMI loop port is available for output.

  • Page 4: Package Contents

    3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ear 3-pin Phoenix connector 24V/1A Locking Power adapter 4. Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps 4K2K 50/60Hz 4:4:4...
  • Page 5 Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack]...

  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description Power LED Red LED indicates that the transmitter is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either DC 24V transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply.

  • Page 7: Receiver Panel

    3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. 5.2 Receiver Panel SERVICE HDMI OUT AUDIO OUT IR IN IR OUT Name Function Description 1 Power LED Red LED indicates that the receiver is powered on.

  • Page 8: Ir Pin Definition

    IR IN IR input port for receiving the signal of IR remote. IR output port for control of display device. This IR output signal 10 IR OUT is from the IR IN port of transmitter. 3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
  • Page 9 The following is IR system diagram about IR cable use method. TV remote DVD remote IR Receiver cable CAT 5e/6 cable Transmitter Receiver IR Blaster cable Note: IR remote sends signal at the distance of 0~5 meters / 0~8 meters with the angle of ±...

  • Page 10: Application Example

    6. Application Example RS-232 D C 12V Controller DVD or Blu-ray Player Transmitter HDMI OUT HDMI IN IR IN IR OU T IR Blaster Power Supply IR Receiver IR Receiver CAT 5e/6 cable UHDTV IR Blaster Receiver HDMI OUT AUDIO OUT IR IN IR OU T 2.0 Speakers...

  • Page 11: Warranty Information

    7. Warranty Information BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1.

  • Page 12: Mission Statement

    8. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
