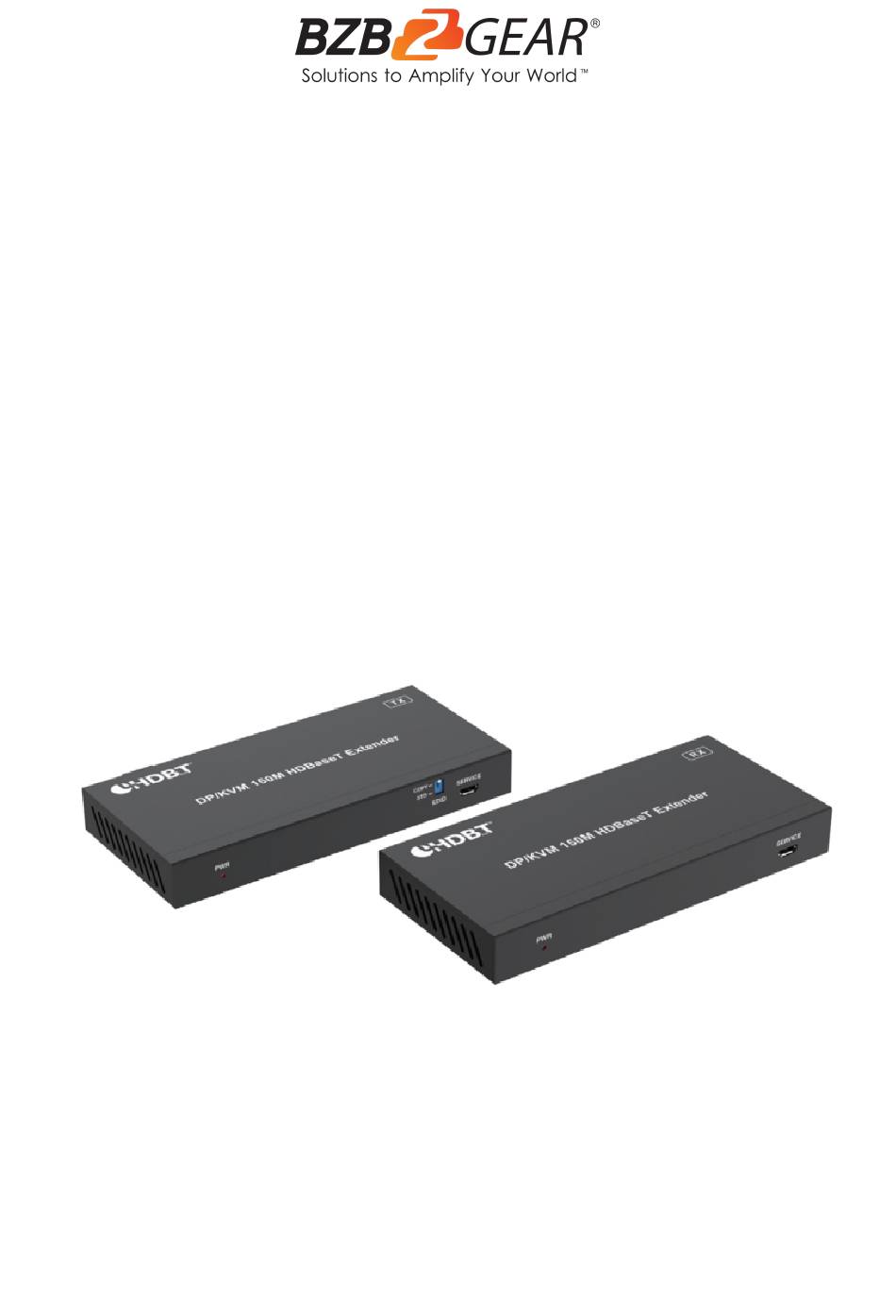

- Page 1 BG-EXD-150C 150m 4K60 DisplayPort HDBaseT Extender with USB KVM User Manual...
- Page 2 BZBGEAR BG-EXD-150C PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXD-150C PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Pin Definition Connection Diagrams Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-EXD-150C PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-EXD-150C is a 4K60 DisplayPort (DP) range extender that can transmit DP video, bi-directional IR and RS-232 control signals, and also USB KVM signals. It can transmit up to distances of 328ft/100m for a 4K60 signal and 492ft/150m for a 1080P signal using a single CAT6 cable. -
Page 6: Packing List
BZBGEAR BG-EXD-150C PRODUCT MANUAL Packing List ● 1x BG-EXD-150C Transmitter ● 2x 3-pin 3.81mm phoenix connectors ● 1x BG-EXD-150C Receiver ● 4x Mounting ears ● 1x 24V / 1A Locking Power Supply ● 8x KM3*4 Machine Screws ● 1x IR Blaster Cable (1.5m) ●... - Page 7 BZBGEAR BG-EXD-150C PRODUCT MANUAL Mechanical Enclosure - Metal Composite Housing Black Color Dimensions (L x W x H) 140mm x 65mm x 18mm 0.5Lbs (8oz) Weight DC 24V/1A (US/EU standard, CE/FCC/UL certified) Power Supply Bi-directional POC Total power consumption: 13.2w Power Consumption Operating Temperature 32°...
-
Page 8: Operation Controls And Functions
BZBGEAR BG-EXD-150C PRODUCT MANUAL Operation Controls and Functions Transmitter Name Description PWR LED The red LED is on when the Transmitter is powered on. Used for EDID setting (COPY by default). COPY: Copy the EDID EDID DIP of the DP OUT port of Receiver. STD: Default 1080P 2CH switch Micro USB port, used to update MCU firmware. - Page 9 BZBGEAR BG-EXD-150C PRODUCT MANUAL 3-pin phoenix connector, connected to a PC or control system RS-232 for RS-232 command transmission. USB-B port, connected to PC. Receiver Name Description PWR LED The power LED is on when the Receiver is powered on.
-
Page 10: Ir Pin Definition
BZBGEAR BG-EXD-150C PRODUCT MANUAL Connected to the IR receiver cable. The IR receive signal IR IN will emit to the IR OUT port of the Transmitter. Connected to the IR blaster cable. The IR emit signal is IR OUT from the IR IN port of the Transmitter. -
Page 11: Connection Diagrams
BZBGEAR BG-EXD-150C PRODUCT MANUAL Connection Diagrams · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 12: Tech Support
BZBGEAR BG-EXD-150C PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
