Evaluating the
ADL6012

FEATURES

Fully featured evaluation board for the
Specified up to 67 GHz
3.15 V to 5.25 V operation

EVALUATION KIT CONTENTS

ADL6012-EVALZ evaluation board

EQUIPMENT NEEDED

Analog signal generator up to 67 GHz (E8257D)
High speed oscilloscope (MSOS254A)
DC voltmeter (34401A)
5 V power supply (E3631A)
Differential probe (1131A)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
2 GHz to 67 GHz, 500 MHz Bandwidth, Envelope Detector
ADL6012

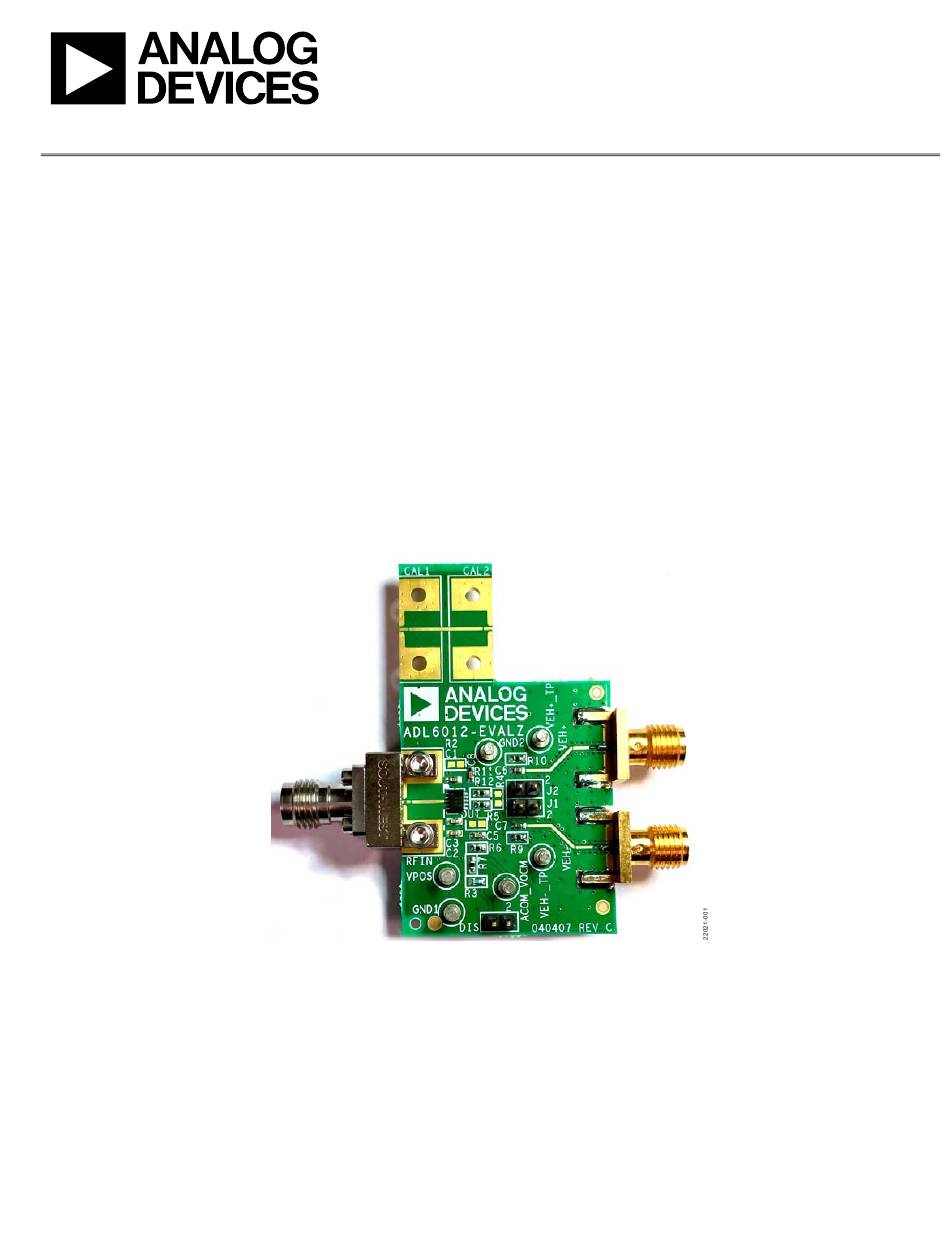

EVALUATION BOARD PHOTOGRAPH

Figure 1.
Rev. 0 | Page 1 of 9
ADL6012-EVALZ

GENERAL DESCRIPTION

The ADL6012-EVALZ provides efficient evaluation of the
ADL6012
2 GHz to 67 GHz envelope detector. The
has fast rise time and fall time responses, around 1 ns
depending on input power levels, with an output envelope
bandwidth of 500 MHz. The ADL6012-EVALZ provides the
basic connections for the RF input signal and the envelope
output voltage. Differential envelope outputs on the ADL6012-
EVALZ can be directly connected to a high speed oscilloscope
to evaluate the differential envelope tracking capabilities.
For full details on the ADL6012, see the
Consult the
ADL6012
data sheet in conjunction with this user
guide when using the ADL6012-EVALZ evaluation board.
User Guide
UG-1675
ADL6012
ADL6012
data sheet.
