Getting Started with the AD9741/3/5/6/7 Evaluation Board
WHAT'S IN THE BOX
AD9747-EBZ Evaluation Board
Mini-USB Cable
AD9747 Evaluation Board CD

INTRODUCTION

The AD9747 Evaluation Board connects to the Analog Devices Digital Pattern Generator (DPG2) to allow for quick evaluation of the
AD9747. The DPG2 allows the user to create many types of digital vectors and transmit these at speed to the AD9747 in any of the
AD9747 operating modes. The AD9747 evaluation board is configured over USB from a panel within the DPGDownloader software.
(Note: The AD9747 operation is described in detail. The operation of the other devices in the family is described in a later section.)

SOFTWARE INSTALLATION

The AD9747 application software, DPGDownloader, should be installed on the PC prior connecting the hardware to the PC. The DAC
Software Suite is included on the Evaluation Board CD, or can be downloaded from the DPG web site at http://www.analog.com/dpg.
This will install DPGDownloader required for loading vectors into the DPG2 and configuring the AD9747 evaluation board.

HARDWARE SETUP (DAC OUTPUT)

Once the DPGDownloader software is installed, the hardware can be connected as shown in Figure 1. A single 5V power supply powers
the evaluation board. The power supply should be able to source up to 1A to cover all of the board's operating conditions. A low jitter
clock source (< 0.5psec RMS) should be used for the DACCLK. A sinusoidal clock output level of 0 to 4dBm is optimal. By default, the
DAC outputs are connected to SMA connectors for evaluation. Both DAC outputs are available. Later in document, the modifications
for observing the modulator output and different clocking options will be shown. The evaluation board plugs directly into the DPG2.
The PC connects to both the DPG2 and the evaluation board through USB cables.

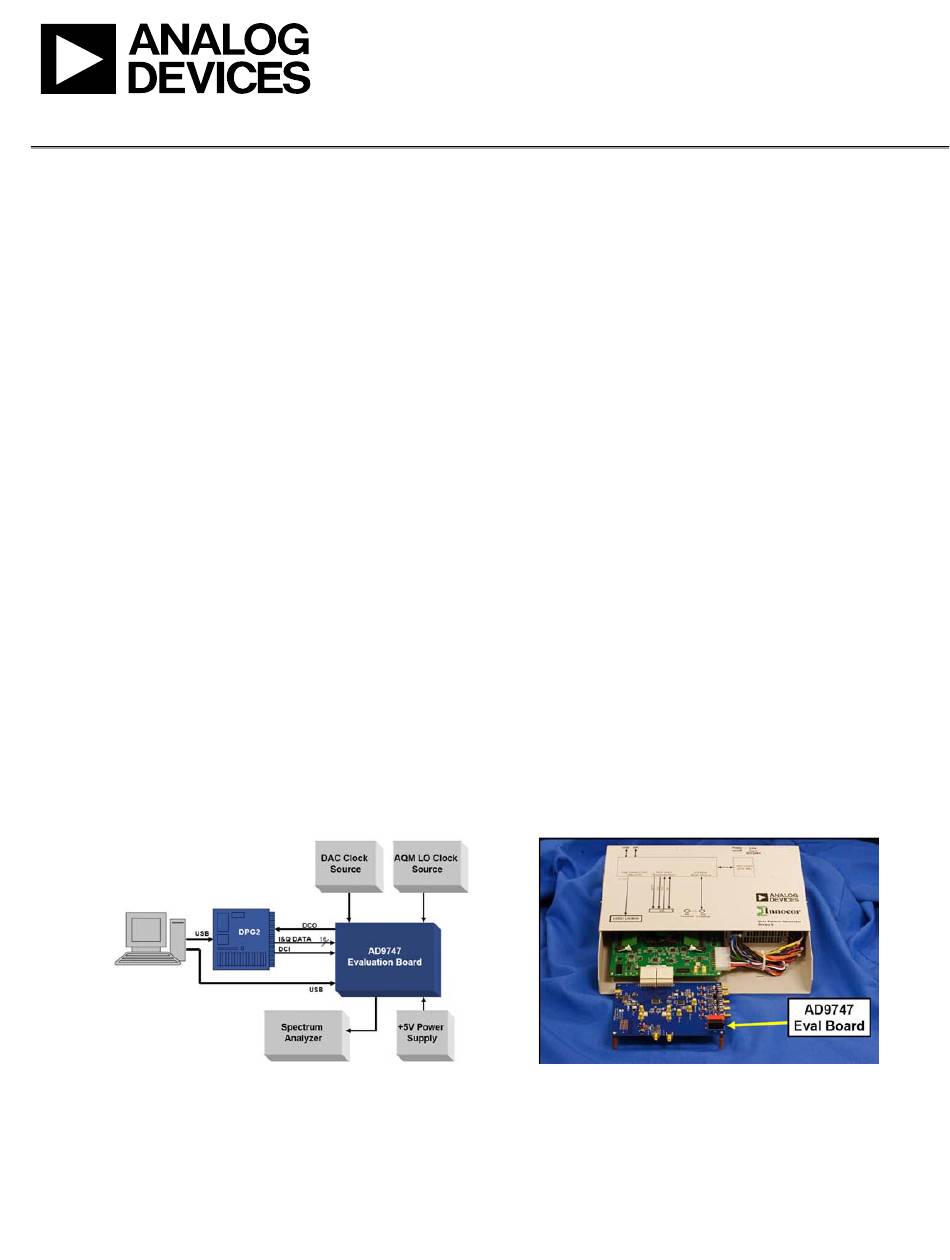

Figure 1- Bench Set-Up
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
AD9741/3/5/6/7 Evaluation Board
EXAMPLE EQUIPMENT LIST
+5Vdc Power Supply: Agilent E3630A
Digital Pattern Generator (DPG2): ADI HSC-DAC-DPG-BZ
DAC Clock Source: R&S SML 02
AQM LO Clock Source: R&S SMA100A
Spectrum Analyzer: Agilent PSAA or R&S FSU
PC: Windows PC with 2 or more USB ports (See Appendix for
system requirements)
Figure 2- DPG2 and AD9747 Evaluation Board
