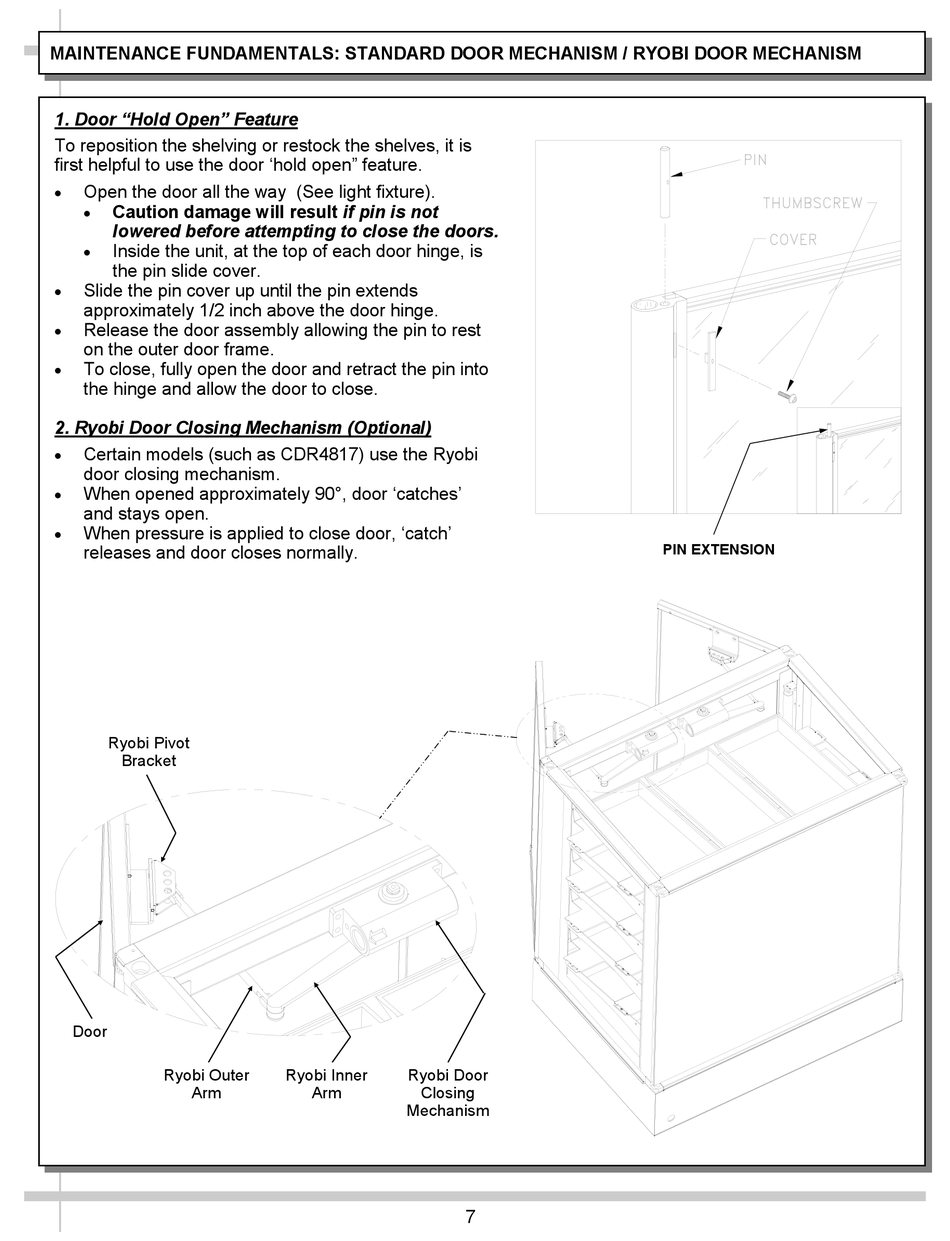

MAINTENANCE FUNDAMENTALS: STANDARD DOOR MECHANISM / RYOBI DOOR MECHANISM
1. Door "Hold Open" Feature
To reposition the shelving or restock the shelves, it is
first helpful to use the door 'hold open" feature.
 Open the door all the way (See light fixture).
 Caution damage will result if pin is not
lowered before attempting to close the doors.
 Inside the unit, at the top of each door hinge, is
the pin slide cover.
 Slide the pin cover up until the pin extends
approximately 1/2 inch above the door hinge.
 Release the door assembly allowing the pin to rest
on the outer door frame.
 To close, fully open the door and retract the pin into
the hinge and allow the door to close.
2. Ryobi Door Closing Mechanism (Optional)
 Certain models (such as CDR4817) use the Ryobi
door closing mechanism.
 When opened approximately 90°, door 'catches'
and stays open.
 When pressure is applied to close door, 'catch'
releases and door closes normally.
Ryobi Pivot
Bracket
Door
Ryobi Outer
Arm
Ryobi Inner Ryobi Door
Arm Closing
Mechanism
7
PIN EXTENSION
