- Page 1 C317 Series Indoor Monitor User Manual...
- Page 2 About This Manual Thank you for choosing Akuvox’s C317 series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. This manual provides an introduction of all functions and features of the product. It is suitable for 83.31.2.3xx version.
-
Page 3: Table Of Contents
Content 1. Product Overview....................................... 1 1.1. Product Description....................................1 1.2. Connector Introduction....................................2 2. Daily Use..........................................3 2.1. Starting......................................... 3 2.2. Making a Call....................................... 5 2.2.1. Calling from Call List..................................5 2.2.2. Calling from All Call..................................5 2.2.3. Calling from Missed Call..................................6 2.2.4. - Page 4 2.4.1. Checking the Monitor..................................10 2.5. Message........................................11 2.5.1. Text Message....................................11 2.5.2. Creating a Message..................................12 2.5.3. Deleting a Message..................................13 2.6. Arming........................................14 2.6.1. Arming Mode....................................14 2.6.2. Disarm Code....................................15 2.6.3. Alarm Log......................................16 2.6.4. Status....................................... 16...
-
Page 5: Product Overview

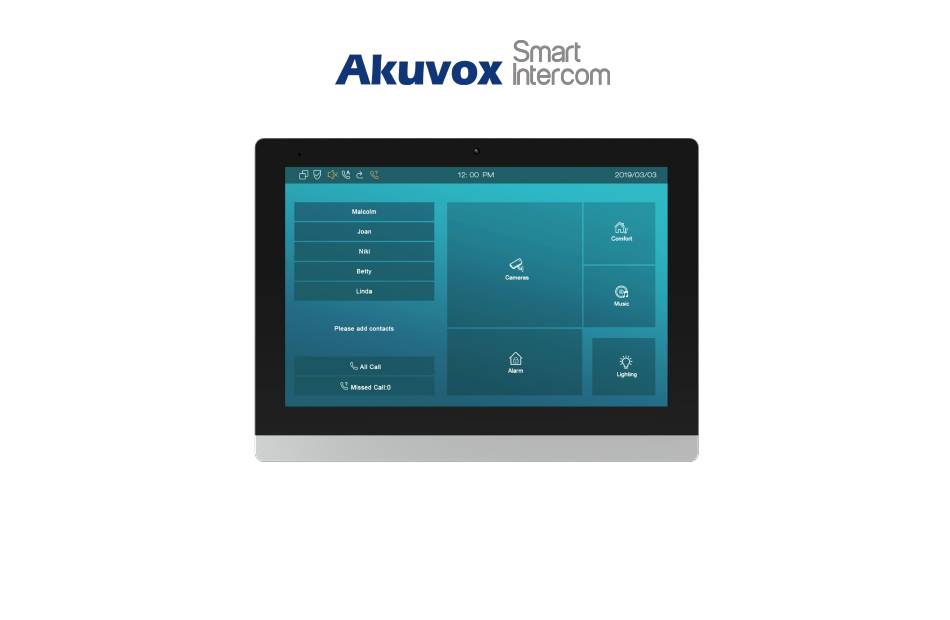

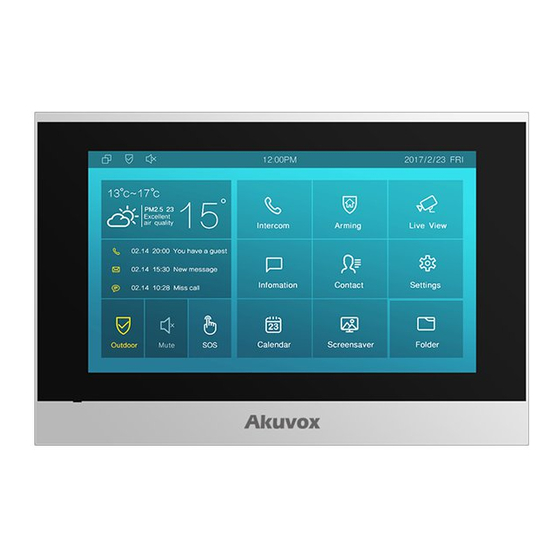

1. Product Overview 1.1. Product Description C317X is an Android SIP-based with smooth touch-screen indoor monitor. It can be connected with Akuvox door phone for audio/video communication, unlocking and monitoring. Residents can communicate with visitors via audio/video call, and it supports to unlock the door remotely. -
Page 6: Connector Introduction
C317X Admin Guide 1.2. Connector Introduction Ethernet (POE): Ethernet (POE) connector which it can provide both power and network connection. RJ45 (PON): Share the network access from Ethernet (POE) port, and for PC and other equipments connection. 12V/GND: External power supply terminal if POE is not available. Figure 1.2-1 C317X interface RS485A/B: RS485 terminal. -
Page 7: Daily Use
Discovery mode is default mode if you don’t choose any device mode. Discovery mode: It is a plug and play configuration mode. Akuvox devices will configure themselves automatically when users power on the devices and connect them to network. It is super time-saving mode and it will greatly bring users convenience by reducing Figure 2.1-2 Device mode selection... - Page 8 This mode do not need to be done any configurations previously by the administrator. Cloud mode: Akuvox Cloud is an all in one management system. Akuvox Cloud is the mobile service that allows audio, video, remote access control between smart phones and Akuvox intercoms. All configurations in the device will be issued automatically from cloud.
-
Page 9: Making A Call
C317X Admin Guide 2.2. Making a Call There are 6 ways to establish VOIP calls by C317X. 2.2.1. Calling from Call List In the home page, choose a number from Call List to make a call. Scroll up or down the Call List to choose the contact that users want to call. -
Page 10: Calling From Missed Call
C317X Admin Guide Tap All Call icon to call other indoor monitors which are set in the same multicast group. 2.2.3. Calling from Missed Call In the home page, missed call indicates how many calls that users missed (1 missed call for an example). Missed call could be treated as a brief call log. -
Page 11: Calling From Device
C317X Admin Guide 2.2.4. Calling from Device It will display the devices connected with C317X on the contact interface. On the device, go to More - Contact. Click Update ① to synchronous the contact automatically. Choose a device ② which users want to call. ... -
Page 12: Calling From Keypad
C317X Admin Guide Choose Audio ③ or Video ④ mode to call out. 2.2.6. Calling from Keypad On the device, go to More - Call to get access to keypad. Click account icon ① above the keypad to switch accounts to make a call. -
Page 13: During The Session
C317X Admin Guide Tap Cancel to reject the incoming call. Press “+” or “-” of the volume on the right side to adjust the ring tone volume. 2.3.2. During the session Tap Unlock to open the corresponding door (if the call is from outdoor unit). -
Page 14: Checking The Monitor
C317X Admin Guide 2.4.1. Checking the Monitor Choose the outdoor devices from the list. The real-time video from the door phone or IP camera will show in the screen . Press Unlock to open the door which is connected with door phone. -
Page 15: Message
C317X Admin Guide 2.5. Message Message ① indicates how many messages are unread ( An unread message for an example). Or directly enter the message interface to manage. 2.5.1. Text Message Tap Message ① on the main interface to view the unread Figure 2.5 -1 Message message. -
Page 16: Creating A Message
C317X Admin Guide 2.5.2. Creating a Message Press New key ① to create a new message. Enter the destination number manually ② or choose the contact from the contact list ③ or select the device quickly from the below list ④ . ... -
Page 17: Deleting A Message
C317X Admin Guide 2.5.3. Deleting a Message Long press the message ① to select it. Click Select All ② to select all message in the message lists. Click Delete ③ to delete the messages have been selected. ... -
Page 18: Arming
C317X Admin Guide 2.6. Arming Tap Arming to enter the Arming interface. Arming feature is not displayed by default. Users can ask administrator to enable it. C317X supports 4 modes, including Home mode, Night mode, Away mode and Disarmed mode. Figure 2.6-1 Arming 2.6.1. -
Page 19: Disarm Code
C317X Admin Guide notification. The Status in the corresponding zone means whether the zone is available or not. Press Save in the top right corner to save the modification. 2.6.2. Disarm Code Go to Arming - Disarm Code to enter the disarm code settings interface. -
Page 20: Alarm Log
C317X Admin Guide 2.6.3. Alarm Log Go to Arming - Alarm Log to enter the alarm log interface. Users can check the alarm log, including “location,” “zone,” “zone type” and “alarm time.” Hold an alarm log ① and it will show up delete prompt. ... - Page 21 C317X Admin Guide...
- Page 22 C317X Admin Guide Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
- Page 23 C317X Admin Guide SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
- Page 24 C317X Admin Guide Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
