Summary of Contents for Comica BoomX-D

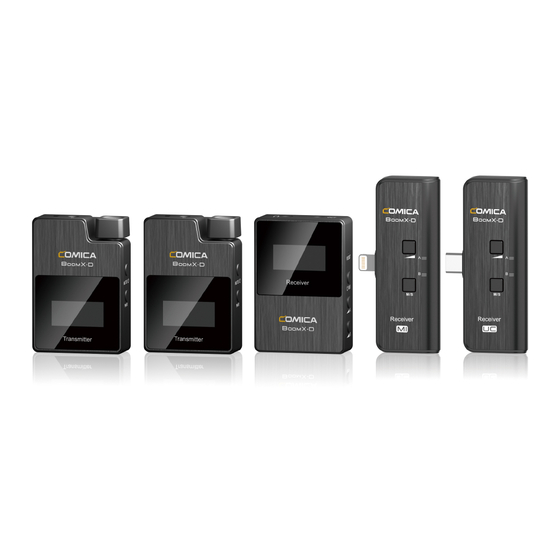

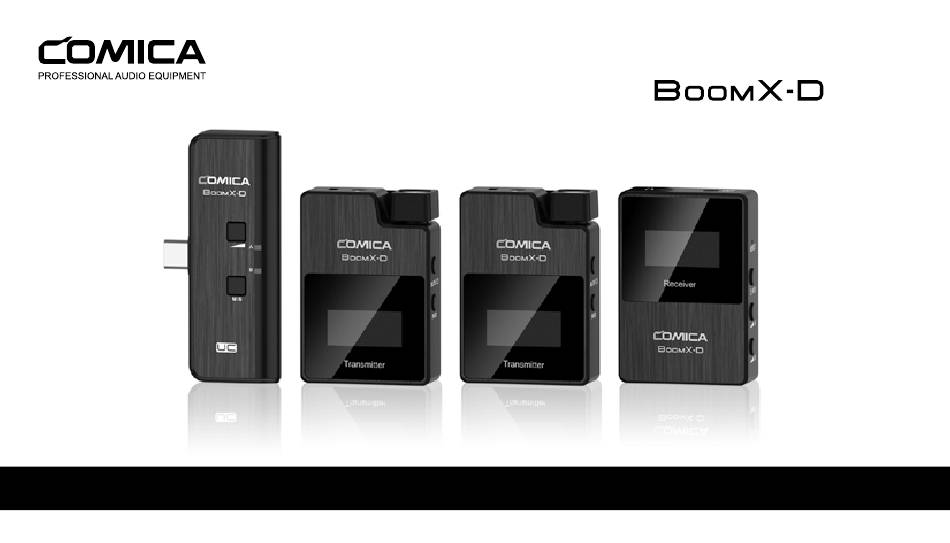

Page 1
2.4G Digital 1-Trigger-2 Wireless Microphone User Manual...
Page 2
Foreword Thanks for purchasing COMICA BoomX-D 2.4G Digital 1-Trigger-2 Wireless Microphone. To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate. Main Features . 2.4G Digital Wireless, Global Free Frequency .
Page 3
Please keep face to face when use it, and don’t turn your back to the receiver, otherwise it is easy to generate breakpoints. Face to receiver (correct) Back to receiver (incorrect) Don't block the antenna position to avoid any poor signal generated. Antenna position Antenna position Antenna position...
Page 5
Accessories: 3.5mm Mic Audio Input Cable Wind Mu 3.5mm TRS-TRRS Audio Cable 3.5mm TRS-TRS Audio Cable USB A-USB C Charging Cable Reset Pin User Manual Warranty Card 2.4G Digital 1-Trigger-2 Wireless Microphone User Manual The accessories of each combination include: UC1= ①...
Page 6
Components and Instruction Transmitter (TX) 1. External Mic Locking Buckle 2. 3.5mm TRS Port of External Mic 3. Internal Mic 4. Power / Muting Button 5. Pair Button 6. Belt Clip 7. USB-C Charging Port 8. Reset Hole...
Page 7
Receiver (RX) 1. 3.5mm TRS/TRRS Monitoring Headphone Port 2. 3.5mm TRS Audio Input Port 3. Reset Hole 4. Power and M/S Button 5. A Channel Output Gain Control Button 6. B Channel Output Gain Control Button 7. Belt Clip 8. USB-C Charging Port...
Page 8
UC Receiver (UC RX) 1. USB-C Connector 2. Output Volume Adjustment Button 3. Group A Working Status Indicator 4. Group B Working Status Indicator 5. M/S Adjustment Button 6. 3.5mm TRS/TRRS Monitoring Headphone Port...
Page 9
Installation Transmitter (TX) 1.Use internal microphone : Install the transmitter on the collar through the belt clip so that the internal microphone points in the direction of the sound source. Belt Clip Internal Mic For better concealment during use, it is recommended that the belt clip be fixed and used outwards.
Page 10
2.Use external microphone: Insert the 3.5mm TRS microphone input cable into the transmitter's 3.5mm TRS external microphone port and tighten it, then clip the transmitter to the belt through the belt clip and clip the lavalier microphone to your collar. When using an external microphone, the internal microphone is automatically turned o .
Page 11
Receiver (RX) 1.Work with Camera: Fix the receiver through the belt clip to the camera's hot shoe mount, then connect the receiver with camera through the 3.5mm TRS-TRS audio cable; Insert the headphone into the monitoring headphone port for monitoring. 3.5mm TRS-TRS Audio Cable...
Page 12
2.Work with Smartphone: Clip the receiver to the cold shoe mount through the belt clip; Connect the receiver with the mobile phone through the 3.5mm TRS-TRRS audio cable and pay attention to the access to the audio output jack of the receiver is the 3.5mm TRS plug, and the access to the mobile phone is the 3.5mm TRRS plug;...
Page 13
UC Receiver (UC RX) Insert the UC receiver (UC RX) into the USB-C port of the phone; Insert the headphone into the 3.5 mm TRS/TRRS monitoring headphone port for monitoring.
Page 14
Function and Usage Transmitter (TX) 1.Screen Display Instruction: Unpaired Muting in the Pairing Microphone Normal Working Paired Transmitter Battery Status Signal Strength A/B Channel is Connected A/B Channel is not Connected A / B Channel Microphone Audio Dynamic Bar...
Page 15
2.Function Introduction: 2.1. Power/Muting Button Long press for On/O ; Shot press for muting switch( Muting switch is available only when the screen is on, if the screen is dimmed, press any button to light up the screen then switch the mute). 2.2.
Page 16
2.4. Reset Hole If there is a abnormal phenomenon such as the device is crash or unable to turn on it, then insert the reset pin into the reset hole to reset it. 2.5. 3.5mm TRS Microphone Port Insert the 3.5mm TRS microphone input cable, and you can use the external lavalier microphone for recording. At this time, the internal microphone of this device is turned o .
Page 17
Receiver (RX) 1.Screen Display Instruction: A Channel Microphone Audio Dynamic Bar B Channel Microphone Audio Dynamic Bar Mono / Stereo Transmitter Battery Status A channel is connected B Channel Output Gain Control Button A channel is not connected A Channel Output Gain Control Button B channel is connected B channel is not connected...
Page 18
2.Function Introduction: 2.1. Reset Hole If there is a abnormal phenomenon such as the device is crash or unable to turn on it, then insert the reset pin into the reset hole to reset it. 2.2. Power and M/S Button Long press for On/O ;...
Page 19
2.4. USB-C Charging Port Connect the receiver with the power through the USB A-USB C charging cable to charge. 2.5. 3.5mm TRS Audio Output Port Connect with mobile phone through the 3.5mm TRS-TRRS audio cable; Connect with camera through the 3.5mm TRS-TRS audio cable.
Page 20
UC Receiver (UC RX) Function Introduction: 1. USB-C Plug Insert into the USB-C port of phone to use. 2. Output Volume Adjustment Button Short press to cyclically adjust the Volume, and A/B channel is synchronized. 3. M/S Button Shot press for Mono/Stereo switch.
Page 21
4. A / B Working Status Indicator The indicator is red when unpaired; After paired, the indicator is blue when it's Mono and is purple when it's Stereo. 5. 3.5mm TRS/TRRS Monitoring Headphone Port Insert headphone to monitor.
Page 22
Pairing Method (All have been paired at the factory. If you need to re-pair, please follow the description) One-trigger-one: Turn on the transmitter and receiver within one meter, and then press the pair button for pairing when the transmitter screen is highlighted.
Page 23
The transmitter (TX) is pairing with UC Receiver (UC RX) Transmitter (TX) UC Receiver (UC RX) The screen icon changes from after pairing The channel indicator on the UC receiver (UC RX) changes from red to blue or purple after pairing. Transmitter (TX) UC Receiver (UC RX)
Page 24
One-trigger-two: Turn on the transmitter and receiver within one meter, and then long press the pair button of one transmitter to pair the receiver when the transmitter screen is highlighted. After the pairing is successful, the receiver will designate the first paired transmitter as channel A.Then long press the pair button of the second transmitter for pairing, and the receiver will designate the second paired transmitter as channel B after the pairing is successful.Channel A is the left channel, channel B is the right channel.
Page 25
Two transmitters (TX) are pairing with UC Receiver (UC RX) The first paired transmitter (Left channel ) (A channel) (Left channel ) (A channel) (Right channel) (B channel) The second paired transmitter...
Page 26
Specification Transmitter (TX) Wireless Band 2400 ~ 2483.5MHz Transmitting Power +10dBm Receiving Sensitivity -86dBm Antenna PCB Antenna Polar Pattern Omnidirectional Frequency Response 80Hz ~ 20kHz Sound Delay <20ms External Mic Input Interface 3.5mm TRS Battery Built-in Li-ion Battery 300mAh 3.7V Battery Life 5 Hours Net Weight...
